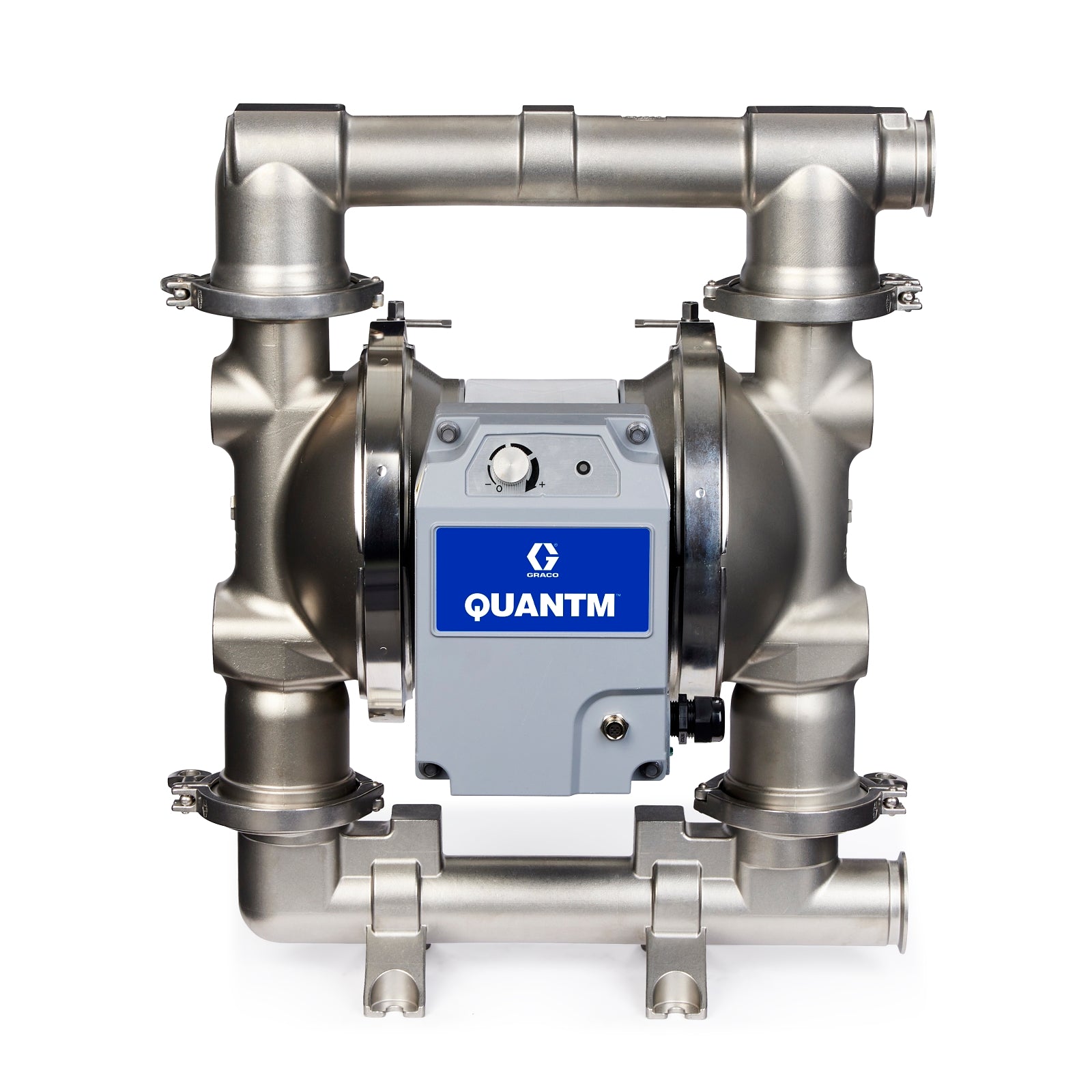

This QUANTM h120 2" electric diaphragm pump features a food-grade stainless steel fluid section, 200-240V motor, FEP-encapsulated AL center, SS seats, SP ball, and SP diaphragm for sanitary, food-grade fluid transfer.
Specifications
| Model | QUANTM |
| Fluid Passage Size (in) | 2 |
Specifications
| Application | Food, Beverage, Personal Care, Pharmaceutical |
| Ball Material | Santoprene |
| Center Section Material | FEP Coated Aluminum |
| Configuration Code | QHE-FGFF1SSSPSPEPS130031 |
| Connection Type | Tri-Clamp |
| Cord Length (ft) | 15 |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 2-1/2 |
| Fluid Inlet Thread Type | Tri-Clamp |
| Fluid Outlet Size (in) | 2-1/2 |
| Fluid Outlet Thread Type | Tri-Clamp |
| Fluid Passage Size (in) | 2 |
| Fluid Passage Size (mm) | 51 |
| Fluid Section | 316 Stainless Steel, End Port, Tri-Clamp |
| Fluid Section Material | 316 Stainless Steel |
| Hazardous Location Approval | None |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | EPDM |
| Material Certification | EN 1024:2004 Type 3.1 (Serialized) |
| Maximum Amperage (A) | 7.5 |
| Maximum Flow Rate (GPM) | 120 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (psi) | 60 |
| Maximum Solid Size (in) | 0.25 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | QUANTM |
| Motor Type | Electric Drive |
| Pump Size (in) | 2 |
| Seat Material | 316 Stainless Steel |
| Standards Met | FDA Compliant Materials |
| Surface Finish | 125 Ra |
| Tri-Clamp Connection Size | 2.5 in. |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 200-240 VAC 3Ph |
| Weight (lb) | 170 |
| Wetted Material | 316L Stainless Steel, 316 Stainless Steel, EPDM, Santoprene |
| Cord Length (m) | 4.57 |
| Fluid Inlet Size (mm) | 64 |
| Fluid Outlet Size (mm) | 64 |
| Maximum Flow Rate (L/min) | 454 |
| Maximum Fluid Pressure (bar) | 4.14 |
| Maximum Solid Size (mm) | 6.4 |
| Weight (kg) | 77.1 |
