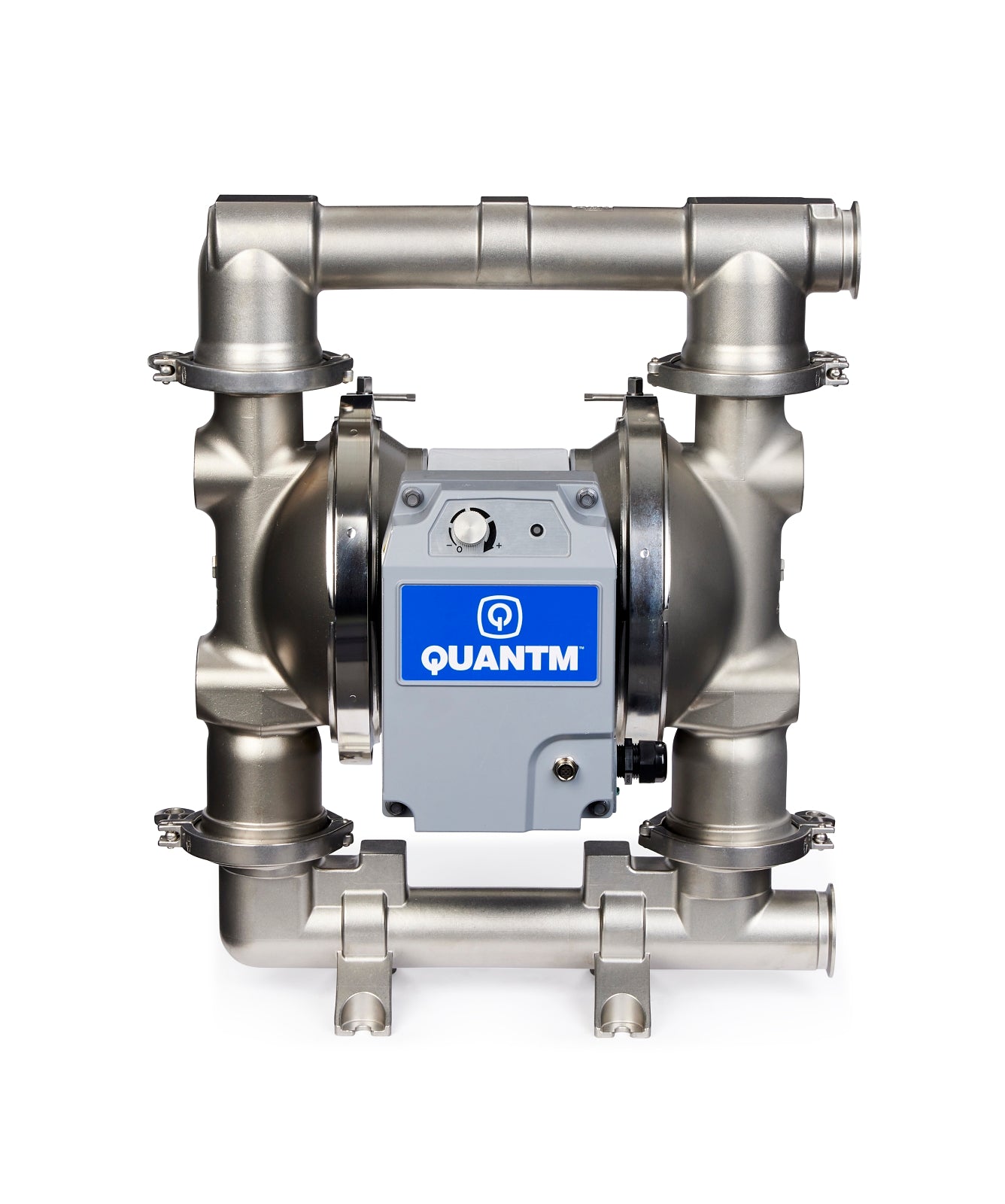

This QUANTM h120 2" end port hygienic DIN electric diaphragm pump features a 316 stainless steel food-grade fluid section, 200-240V motor, FEP-encapsulated AL center, SS seats, PT ball, and PS diaphragm for sanitary fluid transfer.
Specifications
| UPC Product | 769946357806 |
| Model | QUANTM |
| Fluid Section | 316 Stainless Steel, End Port, Hygienic DIN |
| Fluid Passage Size (in) | 2 |
| Maximum Flow Rate (L/min) | 454 |
| Maximum Fluid Pressure (bar) | 4.14 |
