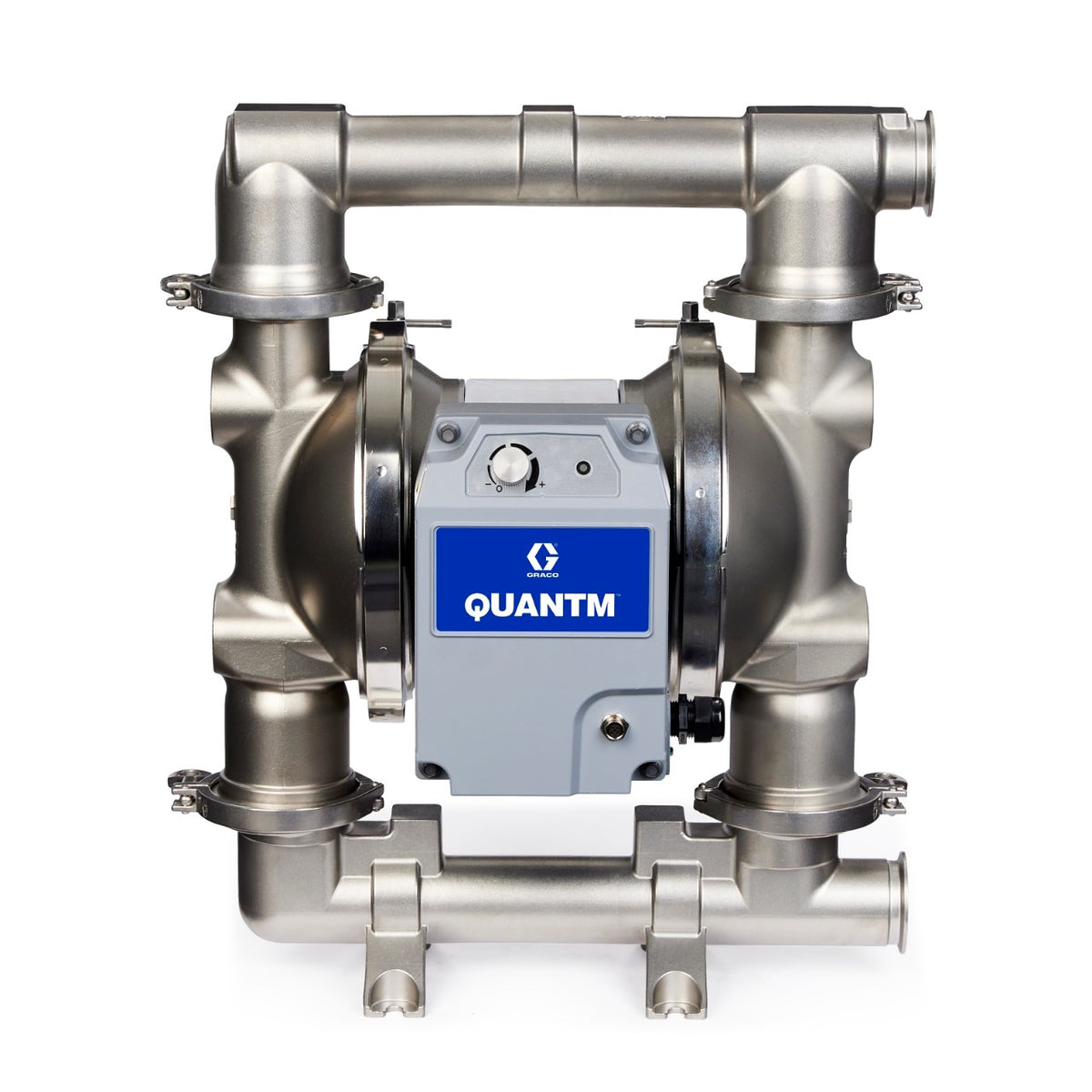

This QUANTM h120 2" Hygienic DIN electric diaphragm pump features a food-grade stainless steel fluid section, 380-480V motor, FEP-encapsulated AL center, SS seats, BN ball, and BN diaphragm for sanitary, food-grade fluid transfer.
Specifications
| Model | QUANTM |
| Fluid Passage Size (in) | 2 |
Specifications
| Application | Food, Beverage, Personal Care |
| Ball Material | Buna-N |
| Center Section Material | FEP Coated Aluminum |
| Configuration Code | QHE-FGFF8SSBNBNEPS140021 |
| Connection Type | Hygienic DIN |
| Cord Length (ft) | 15 |
| Diaphragm Material | Buna-N |
| Fluid Passage Size (in) | 2 |
| Fluid Passage Size (mm) | 51 |
| Fluid Section | 316 Stainless Steel, End Port, Hygienic DIN |
| Fluid Section Material | 316 Stainless Steel |
| Hazardous Location Approval | None |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | EPDM |
| Material Certification | EN 1024:2004 Type 2.1 (Standard) |
| Maximum Amperage (A) | 5.3 |
| Maximum Flow Rate (GPM) | 120 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (psi) | 60 |
| Maximum Solid Size (in) | 0.25 |
| Minimum Fluid Operating Temperature (°C) | -12 |
| Minimum Fluid Operating Temperature (°F) | 10 |
| Model | QUANTM |
| Motor Type | Electric Drive |
| Plug Type | Flying Leads |
| Pump Size (in) | 2 |
| Seat Material | 316 Stainless Steel |
| Standards Met | FDA Compliant Materials |
| Surface Finish | 125 Ra |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 380-480 VAC 3Ph |
| Weight (lb) | 170 |
| Wetted Material | 316 Stainless Steel, Buna-N, Buna-N, EPDM |
| Cord Length (m) | 4.57 |
| Maximum Flow Rate (L/min) | 454 |
| Maximum Fluid Pressure (bar) | 4.14 |
| Maximum Solid Size (mm) | 6.4 |
| Weight (kg) | 77.1 |
