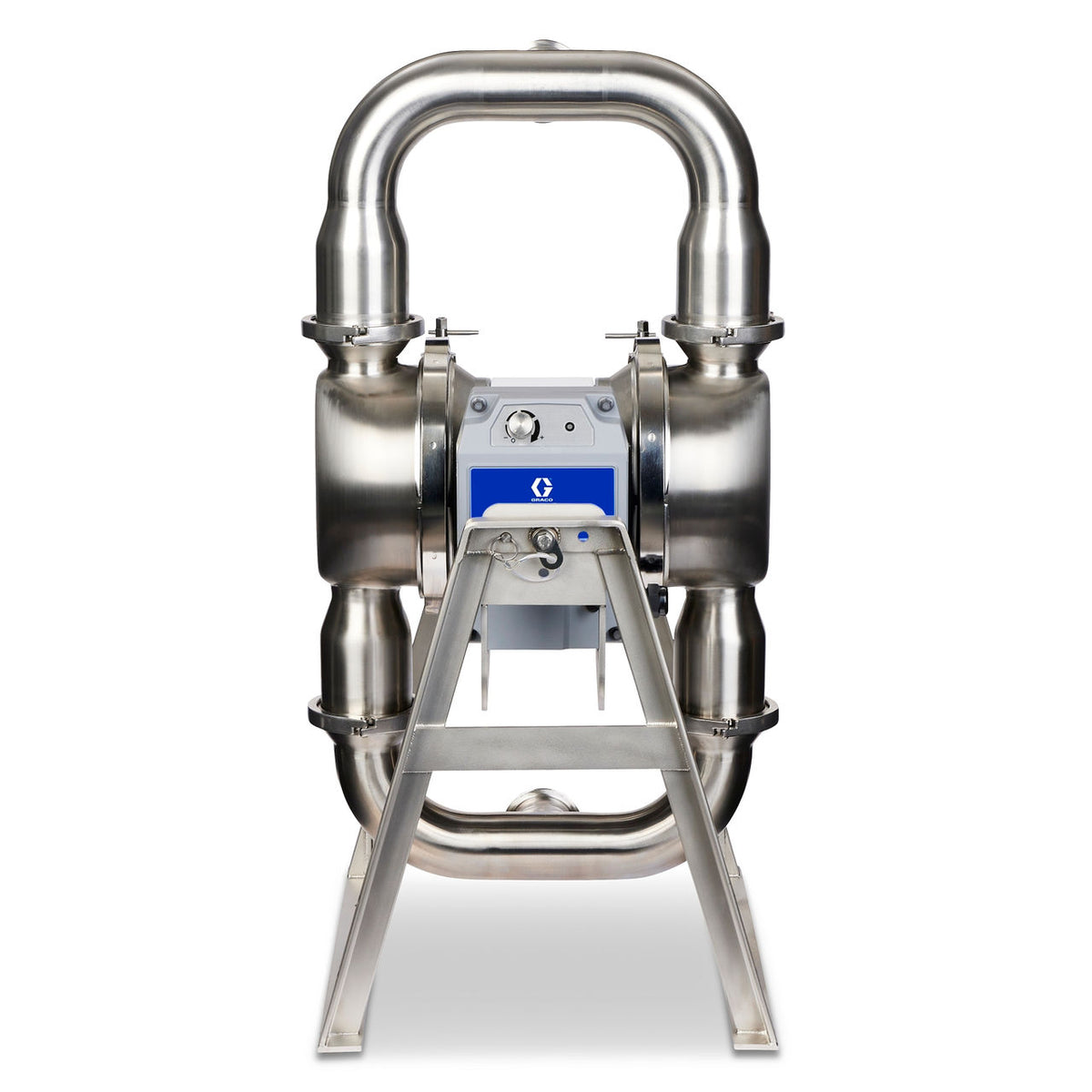

QUANTM isn't just another electric pump: it's a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation.
Specifications
| Application | Food, Beverage, Personal Care |
| Ball Material | Santoprene |
| Center Section Material | FEP Coated Aluminum |
| Configuration Code | QHE-HSFF9SSSPSPEPSSA0021 |
| Connection Type | Tri-Clamp |
| Cord Length (ft) | 15 |
| Diaphragm Material | Santoprene |
| Fluid Passage Size (in) | 2 |
| Fluid Passage Size (mm) | 51 |
| Fluid Section | 316L Stainless Steel, Center Port, Tri-Clamp |
| Fluid Section Material | 316L Stainless Steel |
| Hazardous Location Approval | Class 1, Division 1 |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | EPDM |
| Material Certification | EN 1024:2004 Type 2.1 (Standard) |
| Maximum Amperage (A) | 5.3 |
| Maximum Flow Rate (GPM) | 120 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (psi) | 60 |
| Maximum Solid Size (in) | 0.5 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | QUANTM |
| Motor Type | Electric Drive |
| Plug Type | Flying Leads |
| Pump Size (in) | 2 |
| Seat Material | 316 Stainless Steel |
| Standards Met | FDA Compliant Materials |
| Surface Finish | 32 Ra |
| Tri-Clamp Connection Size | 2 in. |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 380-480 VAC 3Ph |
| Weight (lb) | 143 |
| Wetted Material | 316L Stainless Steel, 316 Stainless Steel, Santoprene, Santoprene, EPDM |
| Cord Length (m) | 4.57 |
| Maximum Flow Rate (L/min) | 454 |
| Maximum Fluid Pressure (bar) | 4.14 |
| Maximum Solid Size (mm) | 12.7 |
| Weight (kg) | 64.9 |
