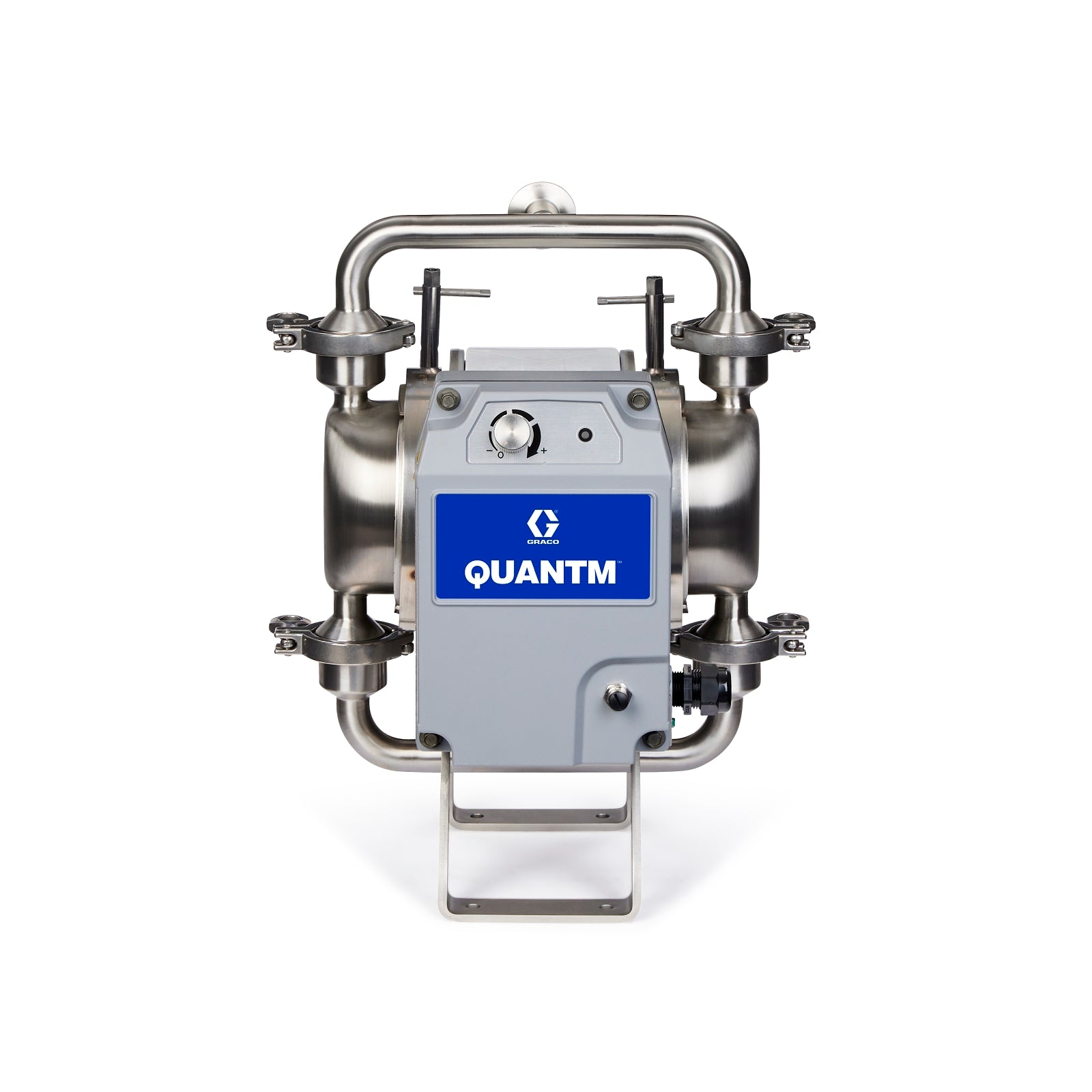

This QUANTM h30 1" tri-clamp electric diaphragm pump features a 316L stainless steel HS fluid section, 100-120V motor, FEP-encapsulated AL center, SS seats, PT ball, and PO diaphragm for high-speed, sanitary fluid transfer.
Specifications
| Model | QUANTM |
| Fluid Passage Size (in) | 1 |
Specifications
| Application | Food, Beverage, Personal Care, Pharmaceutical |
| Ball Material | PTFE |
| Center Section Material | FEP Coated Aluminum |
| Configuration Code | QHC-HSFF5SSPTPOEPSSA0021 |
| Connection Type | Tri-Clamp |
| Cord Length (ft) | 15 |
| Diaphragm Material | PTFE Overmold |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Type | Tri-Clamp |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Type | Tri-Clamp |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| Fluid Section | 316L Stainless Steel, Center Port, Tri-Clamp |
| Fluid Section Material | 316L Stainless Steel |
| Hazardous Location Approval | None |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | EPDM |
| Material Certification | EN 1024:2004 Type 2.1 (Standard) |
| Maximum Amperage (A) | 12 |
| Maximum Flow Rate (GPM) | 30 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.42 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | QUANTM |
| Motor Type | Electric Drive |
| Pump Size (in) | 1 |
| Seat Material | 316 Stainless Steel |
| Standards Met | FDA Compliant Materials |
| Surface Finish | 32 Ra |
| Tri-Clamp Connection Size | 1 in. |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 100-120 VAC 1Ph |
| Weight (lb) | 77 |
| Wetted Material | 316L Stainless Steel, EPDM, PTFE, PTFE Overmold |
| Cord Length (m) | 4.57 |
| Fluid Inlet Size (mm) | 25 |
| Fluid Outlet Size (mm) | 25 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Solid Size (mm) | 10.7 |
| Weight (kg) | 34.9 |
