Feel free to call or chat with us for recommendations.
📦
Ships in 6-10 days, shipping times may vary
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.

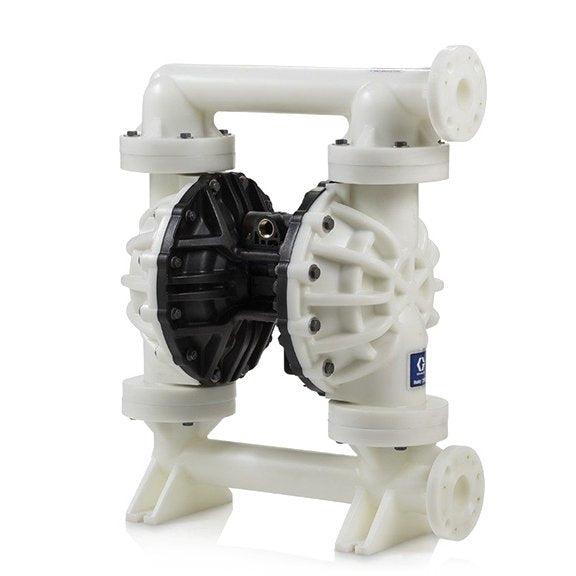

The Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.
Specifications
UPC Product: 00633955241534
Family Code: FAMAOD
Unit of Measure: EA
Height:
39.6 IN
| 100.584 CM
Length:
20.4 IN
| 51.816 CM
Width:
31.2 IN
| 79.248 CM
Volume:
14.59 FT3
| .413 M3
Chargeable Weight:
151.835 LBS
| 68.839 KG
Technical Specifications
Type
Pneumatic Diaphragm Pump
Air Exhaust Port Size (in)
1
Air Exhaust Port Thread Gender
Female
Air Exhaust Port Thread Type
NPT
Air Inlet Size (in)
3/4
Air Inlet Thread Gender
Female
Air Inlet Thread Type
NPT
Application
Industrial
Ball Material
PTFE
Center Section Material
Polypropylene
Compatible Material
Antifreeze, Detergents, Windshield Washer Fluid, Diesel Exhaust Fluid, Cutting Oil, Water, Water - Wastewater Treatment, Water, Water - Wastewater Transfer
Diaphragm Material
PTFE/EPDM 2-Piece
Fluid Inlet Size (cm)
5.08
Fluid Inlet Size (in)
2
Fluid Inlet Size (mm)
50.8
Fluid Outlet Size (cm)
5.08
Fluid Outlet Size (in)
2
Fluid Outlet Size (mm)
50.8
Fluid Section Material
Polypropylene
Manifold Configuration
Center Port
Manifold O-Ring Material
PTFE
Material
Polypropylene
Maximum Air Consumption (SCFM)
140
Maximum Air Pressure (bar)
8.6
Maximum Air Pressure (kPa)
860
Maximum Air Pressure (psi)
125
Maximum Cycle Rate (CPM)
125
Maximum Flow Rate (GPM)
200
Maximum Flow Rate (L/min)
757
Maximum Fluid Pressure (bar)
8.6
Maximum Fluid Pressure (kPa)
860
Maximum Fluid Pressure (psi)
125
Maximum Operating Temperature (°C)
66
Maximum Operating Temperature (°F)
150
Maximum Solid Size (cm)
0.9525
Maximum Solid Size (in)
0.375
Maximum Solid Size (mm)
9.525
Minimum Operating Temperature (°C)
0
Minimum Operating Temperature (°F)
32
Minimum Storage Temperature (°C)
0
Minimum Storage Temperature (°F)
32
Model
Husky
Overall Height (in)
30.3
Power Source
Air
Seat Material
Polypropylene
Series
2200
Standards Met
CE
Weight (lb)
80
Wetted Material
Polypropylene, PTFE/EPDM
Maximum Fluid Pressure (MPa)
0.86
Maximum Air Pressure (MPa)
0.86
Connection Type
Center Flange ANSI/DIN
diaphragm_compatible_material
PTFE
