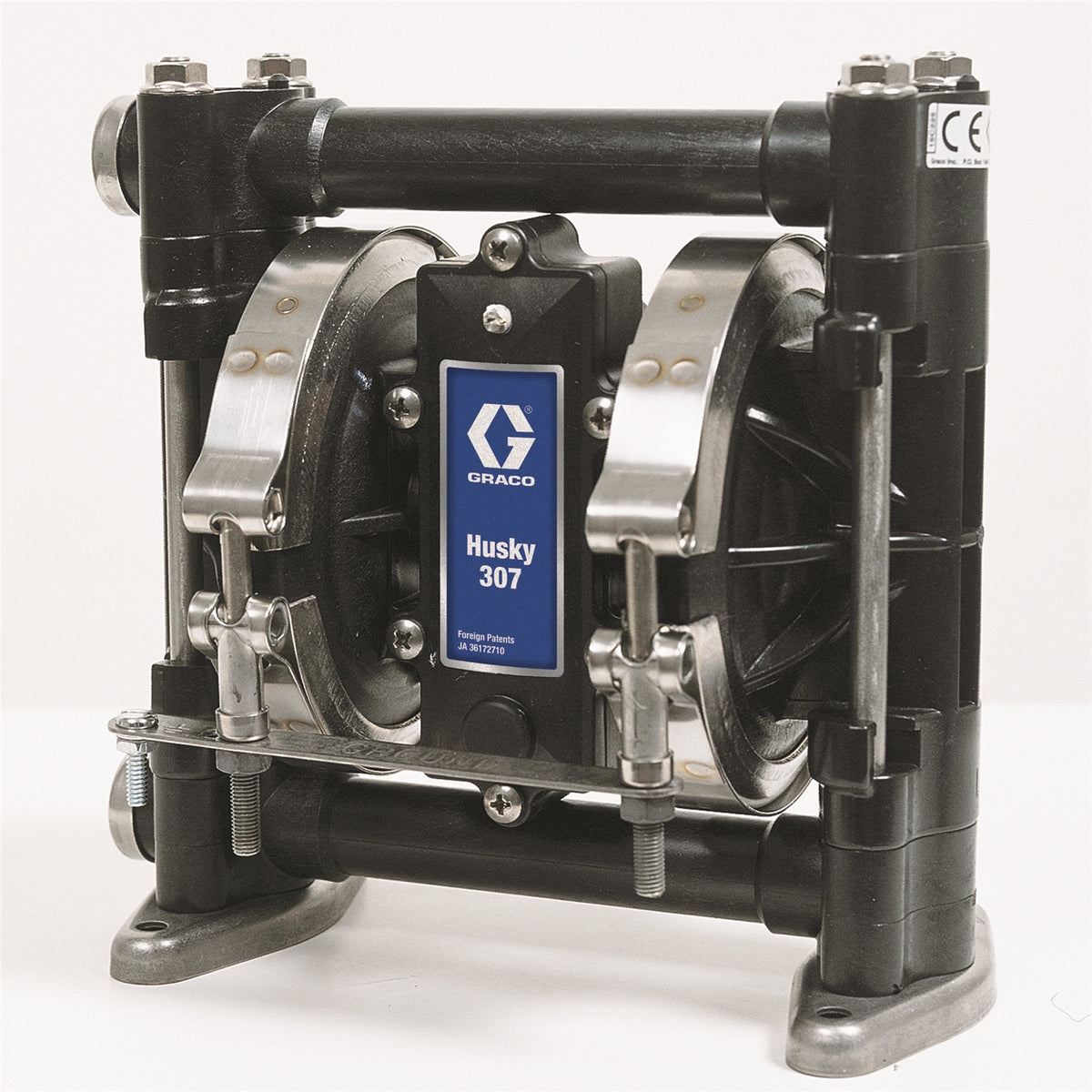

Graco Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE Diaphragm

Graco Husky 307 AC 3/8 in. (9.52 mm) NPT Standard Pump, PP Center Section, SS Seats, SS Balls & PTFE Diaphragm

Regular price
$1,025.00
Sale price
$1,025.00
Quantity must be 1 or more


The Husky 307 air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

UPC Product: 00633955656260
Family Code: FAMAOD
Unit of Measure: EA
Height: 6 IN   |  15.24 CM
Length: 8.4 IN   |  21.336 CM
Width: 8.4 IN   |  21.336 CM
Volume: .245 FT3   |  .007 M3
Chargeable Weight: 6 LBS  | 2.72 KG

Technical Specifications

Type Pneumatic Diaphragm Pump
Air Exhaust Port Size (in) 3/8
Air Exhaust Port Thread Gender Female
Air Exhaust Port Thread Type NPT
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Industrial
Ball Material 316 Stainless Steel
Center Section Material Polypropylene
Compatible Material Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Diaphragm Material PTFE/EPDM 2-Piece
Fluid Inlet Size (cm) 0.9525
Fluid Inlet Size (in) 3/8
Fluid Inlet Size (mm) 9.525
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (in) 3/8
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Gender Female
Fluid Outlet Thread Type NPT
Fluid Section Material Acetal
Manifold Configuration End Port
Manifold O-Ring Material PTFE
Material Acetal
Maximum Air Consumption (SCFM) 5.5
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Air Pressure (psi) 100
Maximum Cycle Rate (CPM) 330
Maximum Flow Rate (GPM) 6.5
Maximum Flow Rate (L/min) 24.6
Maximum Fluid Pressure (bar) 7
Maximum Fluid Pressure (kPa) 700
Maximum Fluid Pressure (psi) 100
Maximum Operating Temperature (°C) 82
Maximum Operating Temperature (°F) 180
Maximum Solid Size (cm) 0.1588
Maximum Solid Size (in) 0.0625
Maximum Solid Size (mm) 1.5875
Minimum Operating Temperature (°C) 4
Minimum Operating Temperature (°F) 40
Model Husky
Overall Height (in) 8.13
Power Source Air
Seat Material Stainless Steel
Series 307
Standards Met ATEX, CE
Weight (lb) 5.25
Wetted Material Acetal, Polypropylene, Stainless Steel, PTFE/EPDM
Maximum Fluid Pressure (MPa) 0.7
Maximum Air Pressure (MPa) 0.7
Connection Type Threaded
diaphragm_compatible_material PTFE
