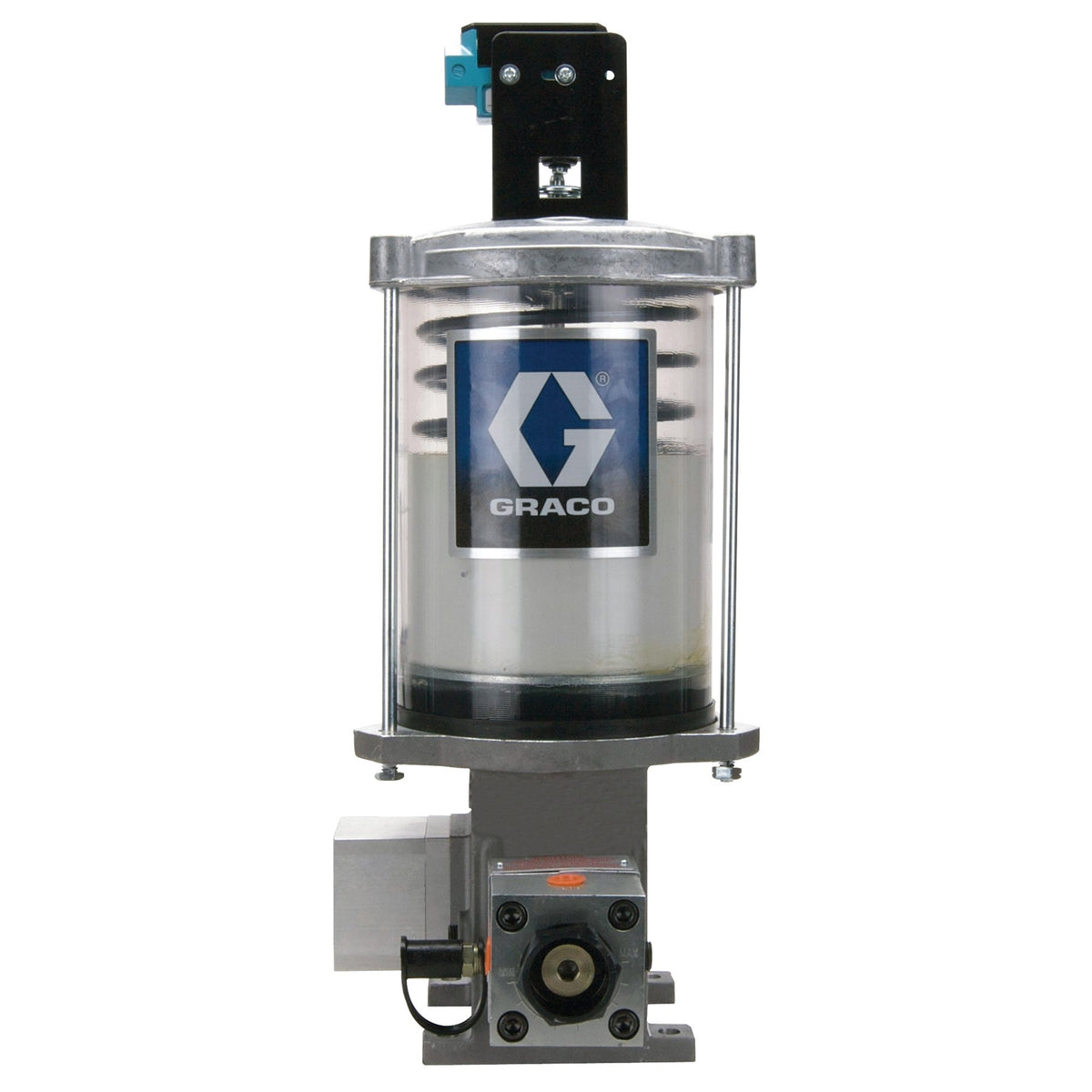

Graco Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL
Graco Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL

Graco Lube Master® Electric Pump, 20 lb. (9.06 kg) Grease Metal Reservoir, 60:1 Floor Mount, 230/460V, 1/2 HP, 3 PH, 60 Hz, 1725 RPM, LL

Regular price
$8,058.44
Sale price
$8,058.44
Quantity must be 1 or more


The Lube Master is a rugged pump package designed for demanding applications. The adjustable output and anti-friction drive bearings make it both reliable and efficient. Rugged cast iron main body and heavy-duty internal components deliver consistent performance in harsh applications.

Built For Severe-Duty Environments.

  • Broad output range
  • Adjustable output
  • Simplified construction
  • Hardened steel piston in steel sleeve
  • Soft-seat outlet check valve
  • Modular components
  • Driven by an electric motor (gear drive)
UPC Product: 00633955356634
Family Code: FAMMPM
Unit of Measure: EA
Height: 16.8 IN   |  42.672 CM
Length: 44.4 IN   |  112.776 CM
Width: 20.4 IN   |  51.816 CM
Volume: 8.806 FT3   |  .249 M3
Chargeable Weight: 94 LBS  | 42.64 KG

Technical Specifications

Type Electric Piston Pump
Application In-Plant Machinery
Compatible Material Grease
Fluid Outlet Size (in) 0.25
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Type NPSF
Material Metal
Maximum Fluid Output Pressure (psi) 5000
Maximum NLGI Grade #2
Maximum Working Pressure (bar) 340
Maximum Working Pressure (kPa) 34000
Maximum Working Pressure (psi) 5000
Model Lube Master
Power Type Electric
Reservoir Size (lb) 20
Voltage (V ac) 230/460
Compatible Metering Device Series Progressive
Maximum Cycle Rate (strokes/min) 175
Maximum Flow Rate (ci/min) 8.62
Minimum Cycle Rate (strokes/min) 1
Minimum Flow Rate (ci/min) 0.01
Overall Depth (cm) 26
Overall Depth (in) 10.25
Overall Depth (mm) 260
Overall Height (cm) 67.5
Overall Height (in) 26.56
Overall Height (mm) 675
Overall Width (cm) 19.8
Overall Width (in) 7.812
Overall Width (mm) 198
Maximum Working Pressure (MPa) 34
maximum_fluid_output_pressure_bar 345

;
