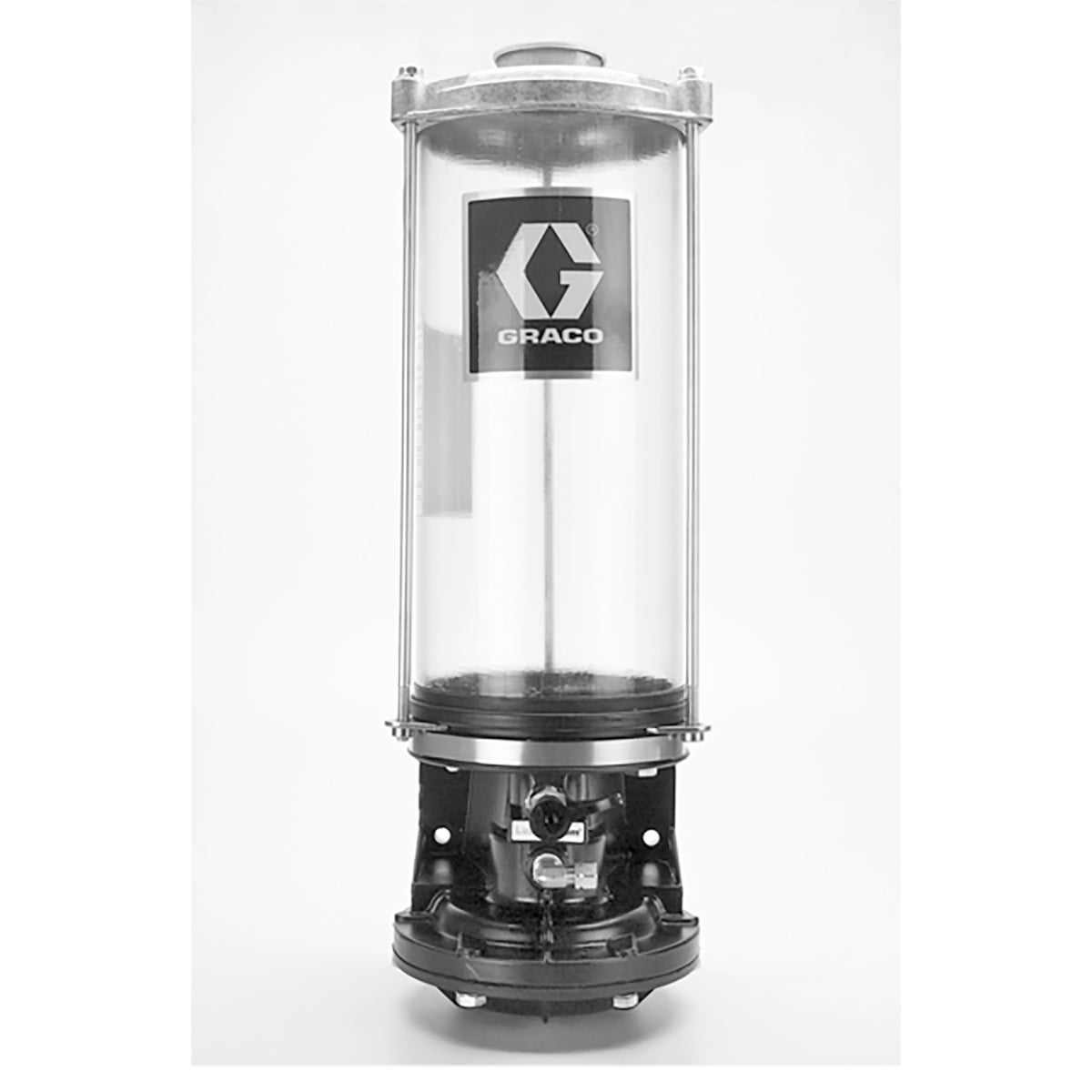

Graco LubriSystem Standard Oil Pump with 12 pt. (5.68 liter) Plastic Cylindrical Reservoir

Graco LubriSystem Standard Oil Pump with 12 pt. (5.68 liter) Plastic Cylindrical Reservoir

Regular price
$1,710.00
Sale price
$1,710.00
Quantity must be 1 or more


Easy to design, modify and adjust for oil or grease applications large or small. Great for operation of piston distributors. Rugged construction maximizes your productivity - upgrading to the internal timer control completely automates the system. All packages include internal pressure relief, so no need to install extra parts with additional costs. Combine with LubriSystem injectors for easy, low cost system design solutions.

Air Operated Pump for Single Line Parallel Systems

  • Ability to serve large systems - up to 100 lube points or more
  • Efficient design promotes increased productivity and less downtime
  • 12 pint (5.68 liter) reservoir for oil applications
  • Lubriquip part number 550-000-180
UPC Product: 633955333581
Family Code: FAMLPM
Unit of Measure: EA
Height: 9.6 IN   |  24.384 CM
Length: 24 IN   |  60.96 CM
Width: 9.6 IN   |  24.384 CM
Volume: 1.28 FT3   |  .036 M3
Chargeable Weight: 24 LBS  | 10.89 KG

Technical Specifications

Type Pneumatic Piston Pump
Application In-Plant Machinery
Compatible Material Oil
Includes LubriSystem 泵,含 12 品脱(5.68 升) 塑料筒状储罐, LubriSystem Pump w/12 pt (5.68 liter) Plastic Cylindrical Reservoir
Material Plastic
Maximum Air Inlet Pressure (bar) 10.34
Maximum Air Inlet Pressure (kPa) 1034
Maximum Air Inlet Pressure (psi) 150
Maximum Fluid Output Pressure (psi) 1350
Maximum Working Pressure (bar) 138
Maximum Working Pressure (kPa) 13800
Maximum Working Pressure (psi) 2000
Model LubriSystem
Power Type Pneumatic
Reservoir Size (pt) 12
Compatible Metering Device Single Line Parallel
Maximum Working Pressure (MPa) 13.8
Minimum Air Inlet Pressure (psi) 40
maximum_fluid_output_pressure_bar 93
