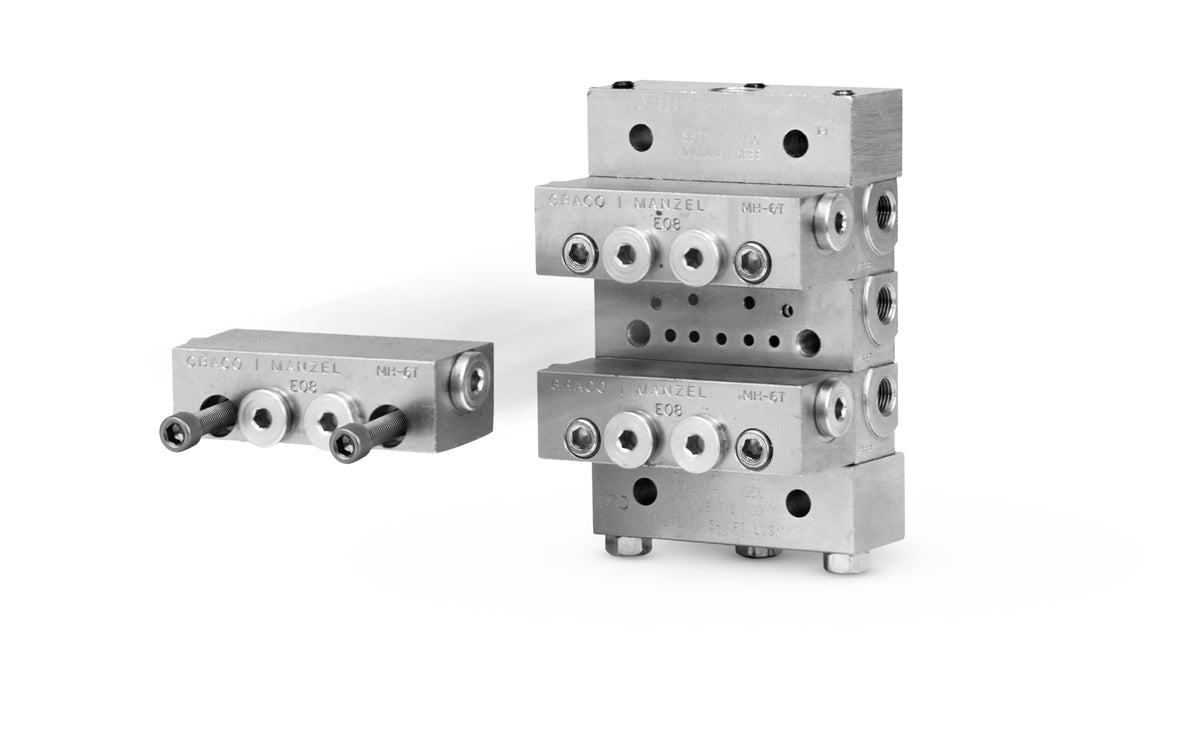

Graco Manzel® MHH Modular Divider Valve .018 Twin

Graco Manzel® MHH Modular Divider Valve .018 Twin

Regular price
$106.53
Sale price
$106.53
Quantity must be 1 or more


Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances.

The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.

  • Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimising labour cost and maximising your machine uptime
  • Can be easily accessorised with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
  • Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
  • Built-in outlet check valves ensure accurate lube delivery every time
  • Lubriquip part number 106-000-625
UPC Product: 00633955329645
Family Code: FAMMAN
Unit of Measure: EA
Height: 1.2 IN   |  3.048 CM
Length: 3.6 IN   |  9.144 CM
Width: 1.2 IN   |  3.048 CM
Volume: .002 FT3   |  0 M3
Chargeable Weight: .91 LBS  | .41 KG

Technical Specifications

Maximum Working Pressure (psi) 7500
Inlet Thread Type NPS, SAE
Inlet Size (in) 1/4 - 18; 7/16 - 20
Number of Outlets 2
Maximum Working Pressure (bar) 517
Inlet Thread Gender Female
Cycle Indicator Cycle Pin
Outlet Thread Type NPS, SAE
Outlet Thread Gender Female
Outlet Size (in) 1/8 - 27, 7/16 - 20
Maximum Working Pressure (kPa) 51700
Maximum NLGI Grade #2
Material Steel
Compatible Material Oil, Grease
Type Divider Valve
Divider Valve Series MHH
Application In-Plant Machinery, Compressor Equipment
Model Manzel
Series MHH
Discharge Per Piston Stroke (in³) 0.018

;
