Modular convenient design allows up to two oil dispense taps or three meters to be added at the time of installation, or later if required.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.

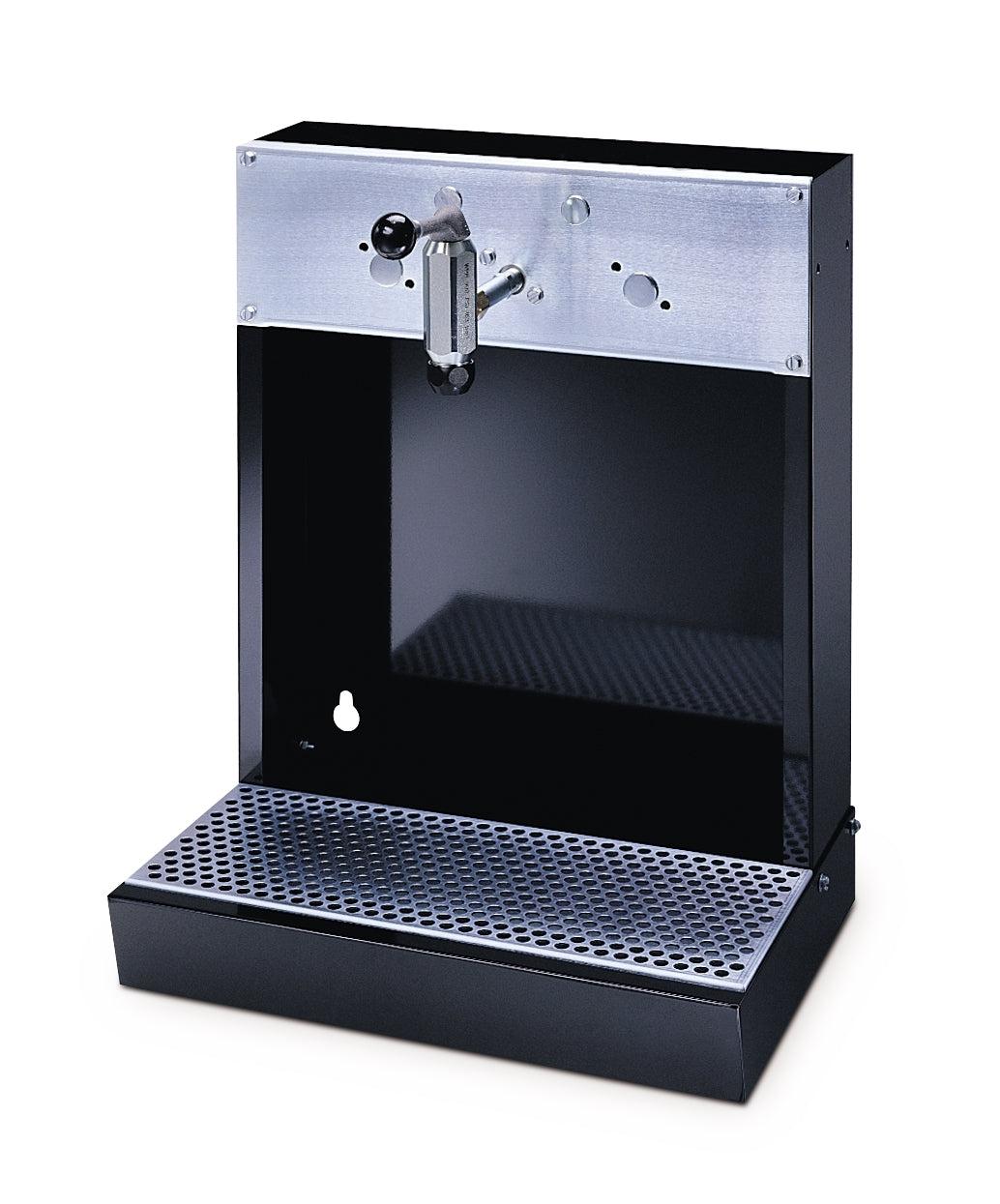

- Tough metal cabinet with baked-on enamel finish.
- Constructed with single-dispense tap and waste pan with plated, perforated metal service area and drain connection.
UPC Product: 00633955199880
Family Code: FAMOAP
Unit of Measure: EA
Height:
6 IN
| 15.24 CM
Length:
22.8 IN
| 57.912 CM
Width:
48.768 CM
| 19.2 IN
Volume:
1.52 FT3
| .043 M3
Chargeable Weight:
32 LBS
| 14.51 KG
Technical Specifications
| Drain Hose Size (mm) | 19.05 |
|---|---|
| Drain Hose Size (in) | 0.75 |
| Drain Hose Size (cm) | 1.905 |
| Drain Hose Thread Type | NPT |
| Fluid Inlet Size (cm) | 1.27 |
| Fluid Inlet Size (in) | 0.5 |
| Fluid Inlet Size (mm) | 12.7 |
| Fluid Inlet Thread Type | NPT |
| Maximum Working Pressure (bar) | 62 |
| Maximum Working Pressure (kPa) | 6200 |
| Maximum Working Pressure (psi) | 900 |
| Number of Dispense Stations | 3 |
| Overall Height (cm) | 57.40 |
| Overall Height (in) | 22.6 |
| Overall Height (mm) | 574.04 |
| Overall Length (cm) | 34 |
| Overall Length (in) | 13.25 |
| Overall Length (mm) | 337 |
| Overall Width (cm) | 46.48 |
| Overall Width (in) | 18.3 |
| Overall Width (mm) | 464.82 |
| Type | Dispense Bar |
| Weight (lb) | 35 |
| Weight (kg) | 15.75 |
| Maximum Working Pressure (MPa) | 6.2 |
