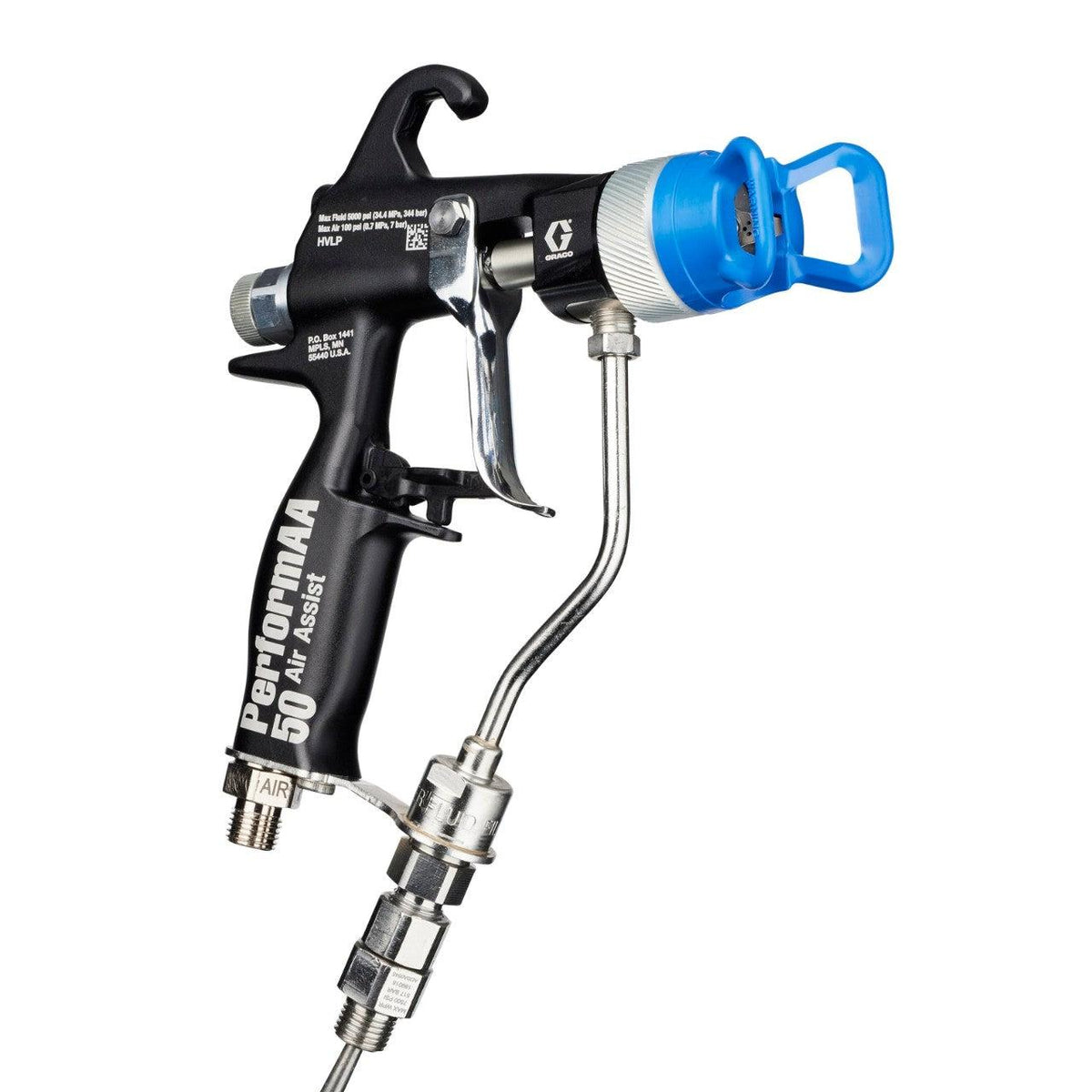

Graco PerformAA 5000 Air Assist Gun w/ Low Viscosity Air Cap & Fluid Swivel

Graco PerformAA 5000 Air Assist Gun w/ Low Viscosity Air Cap & Fluid Swivel

Regular price
$4,945.45
Sale price
$4,945.45
Quantity must be 1 or more


Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.
  • High quality 5000 psi air assist spray gun
  • General finishing air cap for a wide range of materials
  • Carbide fluid seat and carbide ball for durability
  • Fine finish, AXM, or pre-orifice, AXF, spray tip included as tip of choice
  • Clicking fan pattern adjustment knob for accurate adjustment
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Applicator Type Manual
Bleed Type Non-Bleeder
Compatible Material Stains, Sealer, Solventborne, Solventborne Paints, Toner
Compatible Spray Tip AXM, AXF
Feed Type Pressure Feed
Fluid Adjustment Knob Clicking
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Male
Fluid Inlet Thread Type NPSM
Gun Activation Manual
Gun Included 1
Gun Type Air-Assisted Gun
Gun Weight (lb) 1
Gun Weight (oz) 16
Gun Weight with Tip and Guard (g) 490
Gun Weight with Tip and Guard (oz) 17.4
Gun Weight without Tip and Guard (g) 460
Gun Weight without Tip and Guard (oz) 16.2
Includes Carbide Seat/Ball, Tip Guard, Tip of Choice, Tool Kit
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (psi) 100
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Fluid Pressure (MPa) 34.5
Maximum Fluid Pressure (psi) 5000
Maximum Fluid Temperature (°F) 110
Model PerformAA 50
Overall Height (in) 8.2
Overall Length (in) 6.8
Product Type Spray Gun
Sound Power Level (dB(A)) 72.3
Sound Pressure Level (dB(A)) 62.6
Spray Pattern Flat
Spray Type Air-Assisted
Technology Type N/A
Trigger Lock Locking
Trigger Type Two-Finger
Type Spray Gun
Wetted Parts Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer

;
