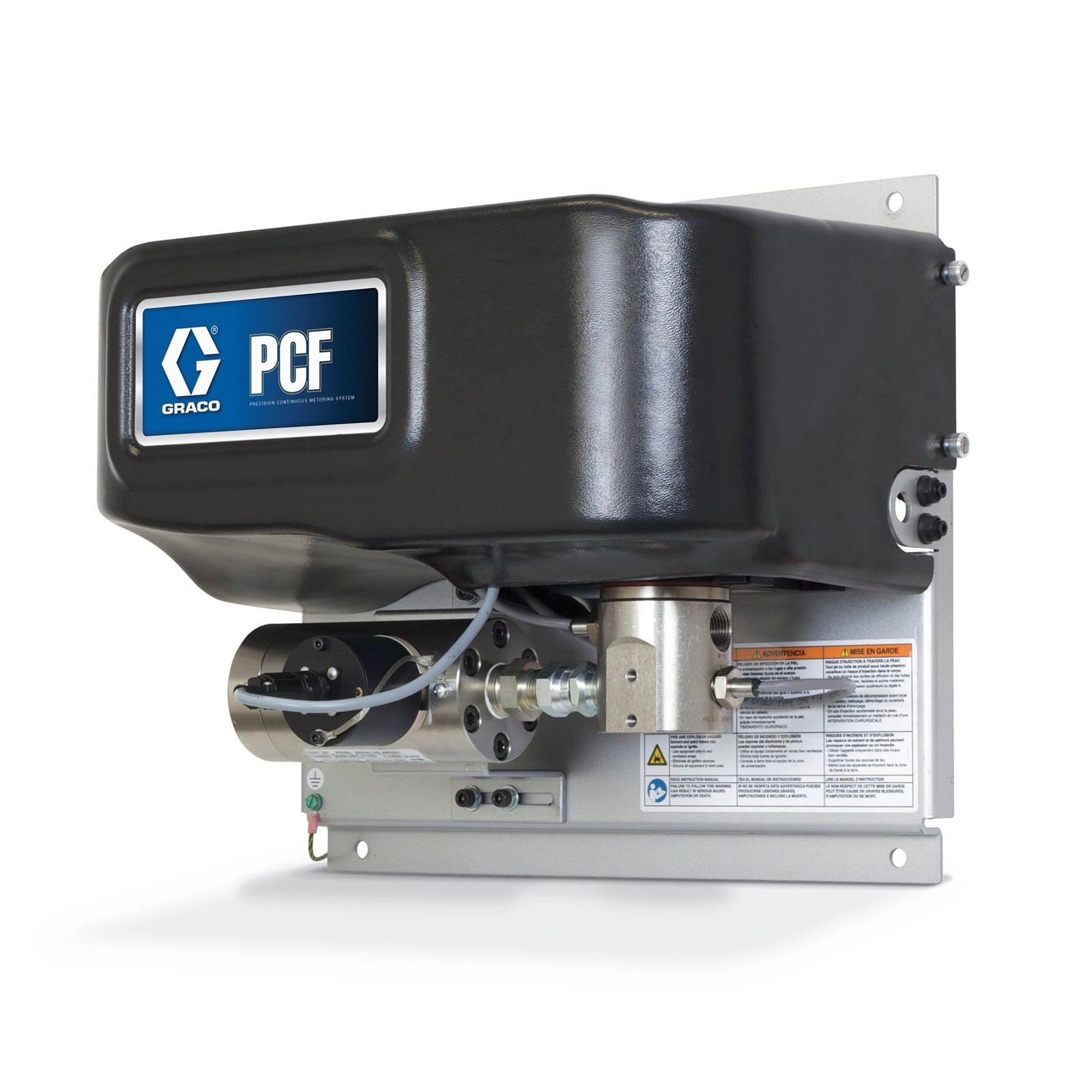

Reduces material waste with superior flow control. Used in conjunction with a material supply system and robotics platform, the Graco PCF Metering System assures a precise, continuous flow of material. Closed-loop technology provides real-time adjustments for changes in material temperatures, viscosities, dispense rates or robot speeds, providing your operation with a highly precise, continuous dispense.
Features
- Closed-loop "real-time" control ensures a precise, continuous dispense - improves part quality and reduces material waste
- Intuitive user interface simplifies setup, reduces training time
- Integrated USB interface for easy data downloads - allows for further analysis of process data
- Multiple gun capabilities for additional productivity - lets you program up to four guns
- Compact modular design - easy to install, integrate and maintain
- Low cost of ownership - fewer wear parts compared to shot meters
Specifications
| UPC Product | 633955055735 |
| Country of Origin | US |
| Height | 19.5 IN |
| Length | 34.5 IN |
| Width | 30 IN |
| Shipping Weight | 132 LBS |
| Maximum Working Pressure (psi) | 5000 |
| Maximum Operating Temperature (F) | 120 |
| Air Inlet Size (in) | 1/4 |
| Fluid Inlet Size (in) | 3/4 |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Flow Rate (cc/min) | 7500 |
| Minimum Flow Rate (cc/min) | 25 |
| Minimum Fluid Viscosity (cP) | 10000 |
| Component Type | Single Component |
| Amperage (A) | 1.4 |
| Frequency (Hz) | 50/60 |
| Includes | Regulator, Flow Meter, FCM Key Token |
