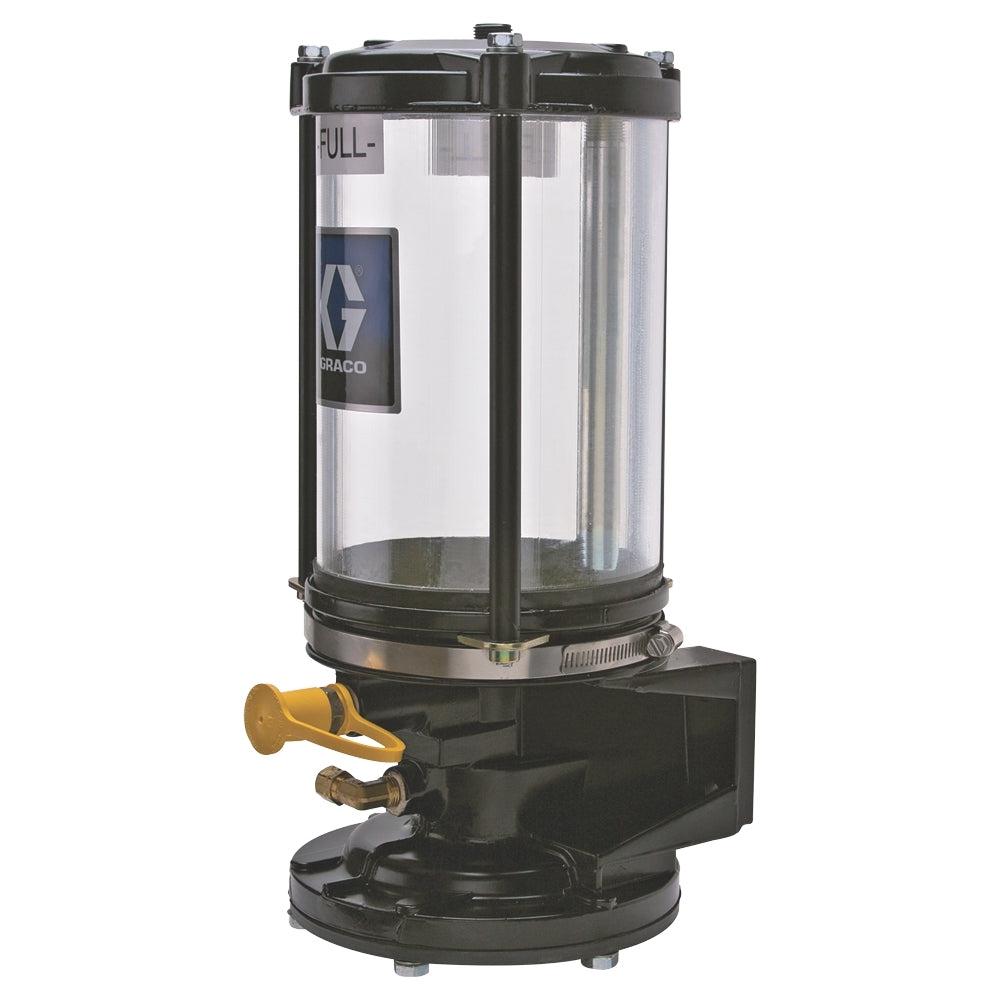

Graco Pneumatic Grease Jockey® Pump with 2.72 kg (6 lb) Reservoir, Straight Fill Port, Front Facing 45° Down Elbow Fluid Outlet

Graco Pneumatic Grease Jockey® Pump with 2.72 kg (6 lb) Reservoir, Straight Fill Port, Front Facing 45° Down Elbow Fluid Outlet

Regular price
$725.00
Sale price
$725.00
Quantity must be 1 or more


Lubrication is critical to your vehicle's peak performance. With Graco's Grease Jockey automatic lubrication system, vehicle maintenance gets a whole lot easier. Take the hassle out of manually lubricating your chassis and continuously lubricate it instead.

  • Keeps your chassis operating, even in harsh on-road conditions
  • Lubricant goes where it's supposed to, automatically, with little or no waste, while the vehicle is operating
  • No wasted time, no missed lube points and no under or over greasing ever again!
  • Systems to fit most OEM on-road vehicles, including specialty fire engines, cement trucks and waste haulers
  • Field-proven - some of the largest fleets have been using Grease Jockey for decades!
  • Lubriquip part number 550-002-040
UPC Product: 00633955351974
Family Code: FAMGJP
Unit of Measure: EA
Height: 27.432 CM   |  10.8 IN
Length: 18 IN   |  45.72 CM
Width: 10.8 IN   |  27.432 CM
Volume: .035 M3   |  1.22 FT3
Chargeable Weight: 12.648 LBS  | 5.735 KG

Technical Specifications

Type Pneumatic Piston Pump
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Type NPT
Application On-Road Vehicles, Off-Road Equipment
Compatible Material Grease
Material Cast Aluminum
Maximum NLGI Grade #0
Maximum Working Pressure (bar) 93
Maximum Working Pressure (kPa) 9300
Maximum Working Pressure (psi) 1350
Model Grease Jockey
Power Type Electric
Reservoir Size (lb) 6
Wetted Material Nylon, Amorphous Polyamide, Zinc-Plated Steel, Carbon Steel, Alloy Steel, Stainless Steel, Nitrile Rubber, Bronze, Nickel Plated Alnico, Chemically Lubricated Acetal, Aluminum, PTFE
IP Rating IP69K
Maximum Flow Rate (ci/min) 0.25
Maximum Run Time (min) 99
Maximum Voltage (V ac) 264
Minimum Voltage (V ac) 88
Minimum Voltage (V dc) 9
Maximum Working Pressure (MPa) 9.3
