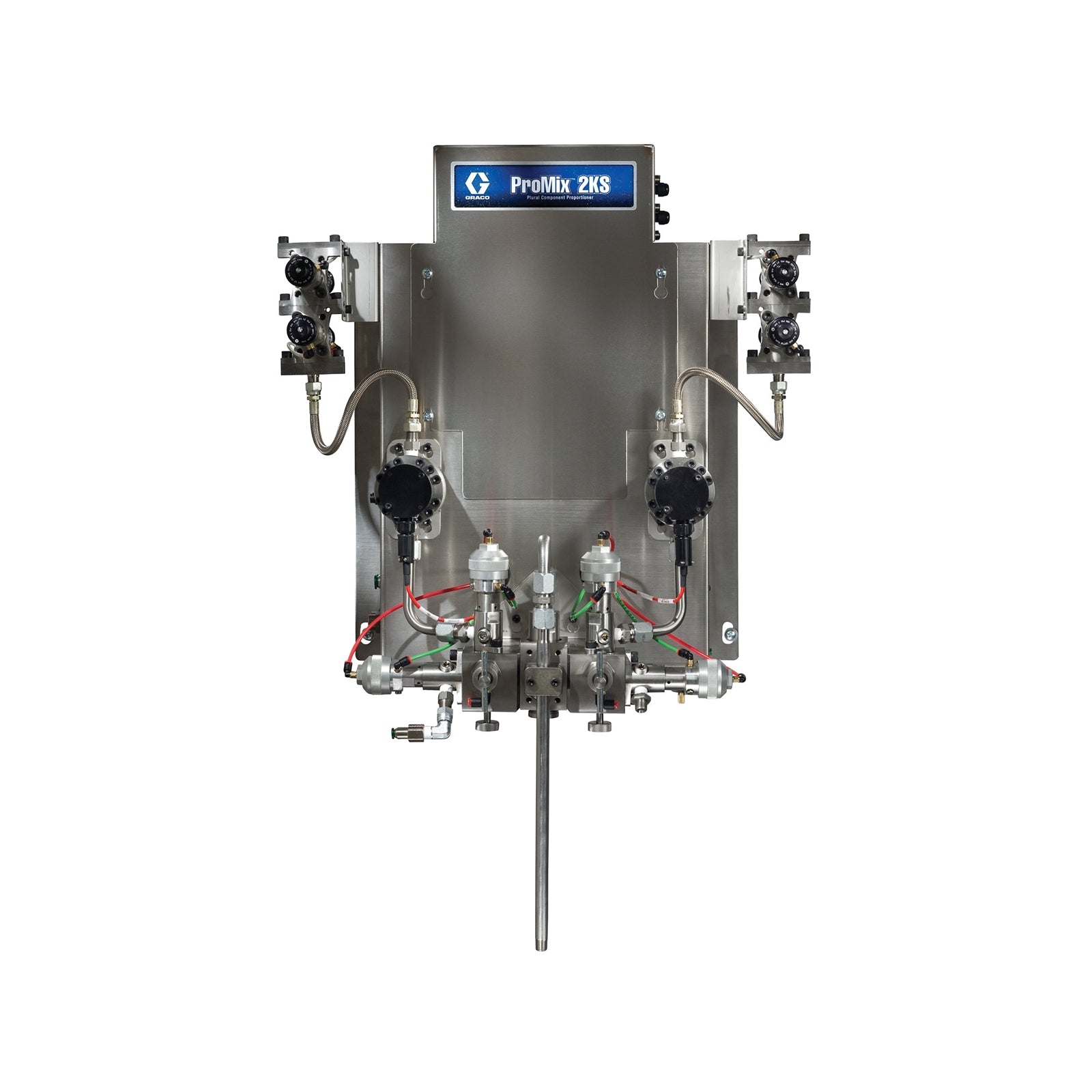

Easy to use electronic proportioner for a broad range of solventborne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.
Features
- This fluid panel can be easily integrated near the spray gun for a shorter mixed material line, faster color changes and less waste. Also available with flow control.
- Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
- Intrinsically safe fluid panels easily integrate into hazardous areas
- Accurate ratio assurance for superior finish quality
- Advanced web interface provides consolidated system management and reporting
Specifications
| UPC Product | 633955414983 |
| Country of Origin | US |
| Height | 30 IN | 76.200 CM |
| Length | 43 IN | 109.220 CM |
| Width | 37 IN | 93.980 CM |
| Shipping Weight | 163 LBS | 73.936 KG |
| Component Type | Two Component |
| Maximum Flow Rate (L/min) | 3.79 |
| Maximum Fluid Viscosity (cP) | 3000 |
| Maximum Mix Ratio | 50:1 |
| Maximum Number of Colors | Up to 3 |
| Minimum Flow Rate (L/min) | 0.075 |
| Minimum Fluid Viscosity (cP) | 20 |
| Minimum Mix Ratio | 0.1:1 |
| Mix Accuracy (%) | 1 |
| Number of Catalysts | 1 |
| Number of Color Valves | 2 Valves |
| Number of Resin Colors | 2 |
