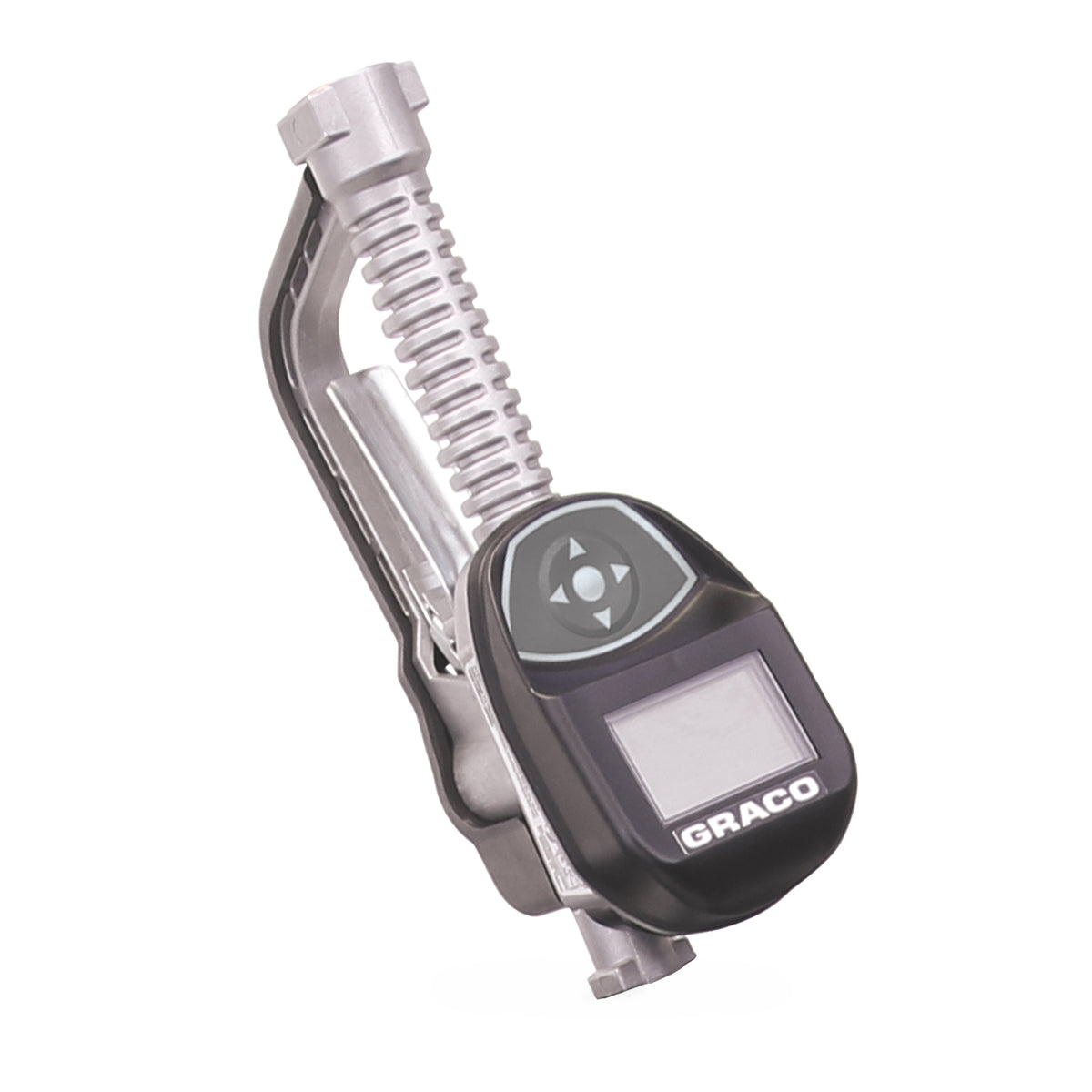

Graco’s premium SD meters were designed from the ground up to provide the best user experience. These robust meters feature high flow, improved ergonomics and a large high-contrast LCD screen to make viewing dispense amounts easy in all lighting conditions.
Feel free to call or chat with us for recommendations.
📦
Shipping times may vary contact us for more information
🚚
Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁
30-day returns. Click here for more info.
Upgradeable—SD Preset meters are compatible with PULSE FC fluid control system
Large, Intuitive Display—high-contrast display for low and bright light conditions
-
Long valve life—cartridge spool valve specifically designed to reduce wear and reduce costly down time
-
Ergonomic—four-finger trigger and easy-to-use button pad reduce worker fatigue
Reliable—time-tested Graco engineering
-
Durable—Thick cast aluminum body allows this meter to endure harsh, heavy-duty applications
Long battery life—uses 4 AA easy-to-replace batteries
UPC Product: 00755652869818
Family Code: FAMMSD
Unit of Measure: EA
Height:
7 IN
| 17.78 CM
Length:
16 IN
| 40.64 CM
Width:
5.5 IN
| 13.97 CM
Volume:
.356 FT3
| .01 M3
Chargeable Weight:
5.4 LBS
| 2.45 KG
Technical Specifications
| Compatible Material | Oil, Antifreeze, ATF, Gear Oil |
|---|---|
| Dispense Type | Preset |
| Display Type | Electronic |
| Extension Type | Bare |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | 裸油枪, Bare Meter, Medidor sin accesorios |
| Maximum Flow Rate (GPM) | 8 |
| Maximum Flow Rate (L/min) | 30 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Recorded Dispense | 9999 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Working Pressure (psi) | 1500 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (bar) | 103.4 |
| Meter Accuracy (%) | ±0.5 |
| Overall Height (cm) | 14.6 |
| Overall Height (in) | 5.75 |
| Overall Height (mm) | 146 |
| Overall Length (cm) | 33 |
| Overall Length (in) | 13 |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9.5 |
| Overall Width (in) | 3.75 |
| Overall Width (mm) | 95 |
| Meter Technology | 椭圆齿轮, Oval Gear, Engranaje oval |
| Metering Gun Weight (lb) | 5.3 |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Flow Rate (L/min) | 0.9 |
| Wetted Material | Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS |
| Warranty | 结构组件 5 年，电子设备 3 年，磨损部件 1 年, 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts, 5 años de componentes estructurales, 3 años de componentes electrónicos, 1 año de piezas de desgaste |
| Unit of Measure | Quart, Pint, Gallon, Liter |
| Trigger Protection Type | Guard |
| Trigger Lock | Locking |
| Recommended Environment | Indoor |
| Outlet Thread Type | Straight Thread O-Ring Boss |
| Nozzle Type | None |
| Minimum Operating Temperature (°F) | 4 |
| Minimum Operating Temperature (°C) | -16 |
| Type | Electronic Metered Dispense Valve |
| Valve Type | Metered |
| Maximum Working Pressure (MPa) | 10.3 |
| Product Type | Meter |
| Model | SD |
