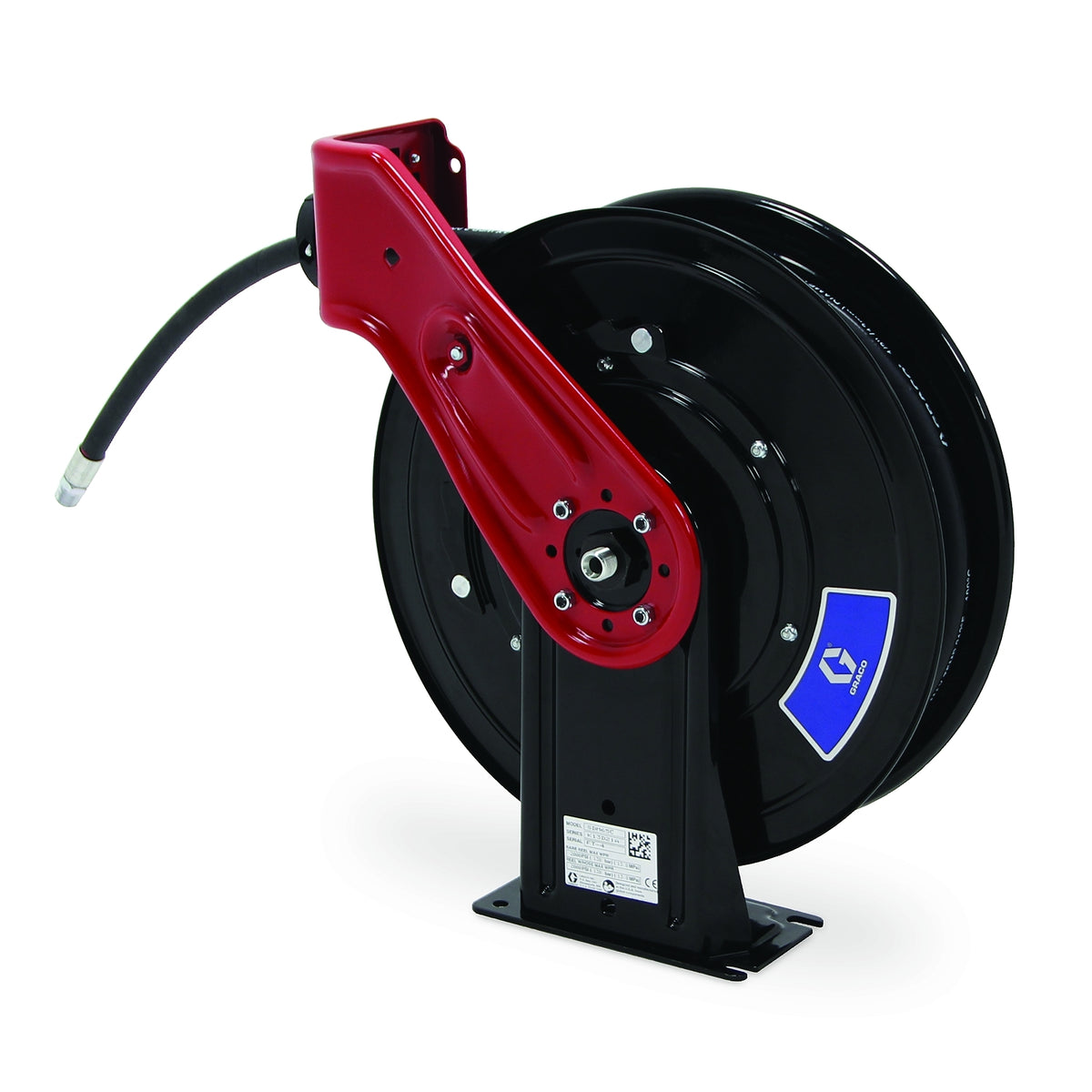

Graco SDH55C SDXâ„¢  20, Grease, 3/8 in (10 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Overhead Mount, Red

Graco SDH55C SDXâ„¢ 20, Grease, 3/8 in (10 mm) Inlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT, Overhead Mount, Red

Regular price
$1,340.00
Sale price
$1,340.00
Quantity must be 1 or more


Choose Graco’s flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels, it’s available in five colors

With its durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.

  • Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplifying repairs.
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Adjustable Arm - Easily change the arm position for your application
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (10.7-19.8 meters) hose (NPT air/water) capacity for a wide variety of applications
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
UPC Product: 769946215403
Family Code: FAMSDR
Unit of Measure: EA
Height: 22.5 IN   |  57.15 CM
Length: 22 IN   |  55.88 CM
Width: 9 IN   |  22.86 CM
Volume: 2.576 FT3   |  .073 M3
Chargeable Weight: 55 LBS  | 24.95 KG

Technical Specifications

Color Red
Dry Weight (lb) 52
Hose Inside Diameter (in) 3/8
Hose Inside Diameter (mm) 9.525
Hose Length (ft) 35
Hose Length (m) 11
Inlet Size (in) 3/8
Inlet Size (mm) 9.525
Inlet Thread Type NPSM
Maximum Temperature (°C) 93
Maximum Temperature (°F) 200
Maximum Working Pressure (psi) 4800
Minimum Temperature (°C) -40
Minimum Temperature (°F) -40
Mount Location Overhead Mount
Outlet Size (in) 1/4
Outlet Size (mm) 6.35
Outlet Thread Type NPT
Overall Height (in) 19.5
Overall Height (mm) 498
Overall Length (in) 17.1
Overall Length (mm) 435
Overall Width (in) 7
Overall Width (mm) 177
Series 10
Wetted Parts Zinc-Plated Steel, Polyurethane, Steel
Application Grease
Type Spring-Rewind Reel
Recommended Environment Indoor, Limited Outdoor
Frame Type Single Pedestal
Reel Thread Type NPT
Inlet Thread Gender Male
Outlet Thread Gender Male
Recommended Fluid Type Grease
Hose Reel Type Reel with Hose
Model SDX
includes_hose Yes
