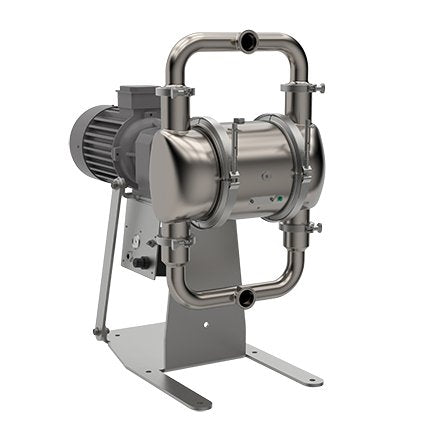

SaniForce electric diaphragm pumps are designed to meet requirements for the most rigorous food, beverage, personal care, and pharmaceutical transfer applications. Providing the same great self-priming, stalling, seal-less design coveted by air operated pumps in an electric package that can solve many of the problems associated with rotary positive displacement pumps. Graco's patented air-charged center all but eliminates pulsation on the fluid outlet of the pump providing a smooth steady flow idea for in process applications, filling systems, and sanitary/hygienic applicator applications.
Features
- Flow rates up to 150 gpm (567 lpm) and pressure up to 100 psi (6.89 bar)
- Seal-less design removes common issues associated with rotary shaft seals and handles abrasive material
- Electric operation provides additional pump control
- Air charge provides ability to stall pump under pressure increasing system safety and removing requirement for circulation loops
- Patented air charge reduces pulsation for smooth outlet flow, ideal for in process applications
- 316L stainless steel wetted section
- Tri-clamp and sanitary DIN connections available
Specifications
| UPC Product | 755652918042 |
| Country of Origin | US |
| Air Inlet Size (in) | 3/8 |
| Fluid Inlet Size (in) | 2 |
| For Use With | Food, Personal Care, Pharmaceutical |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.5 |
| Maximum Operating Temperature (F) | 220 |
| Minimum Operating Temperature (F) | 40 |
