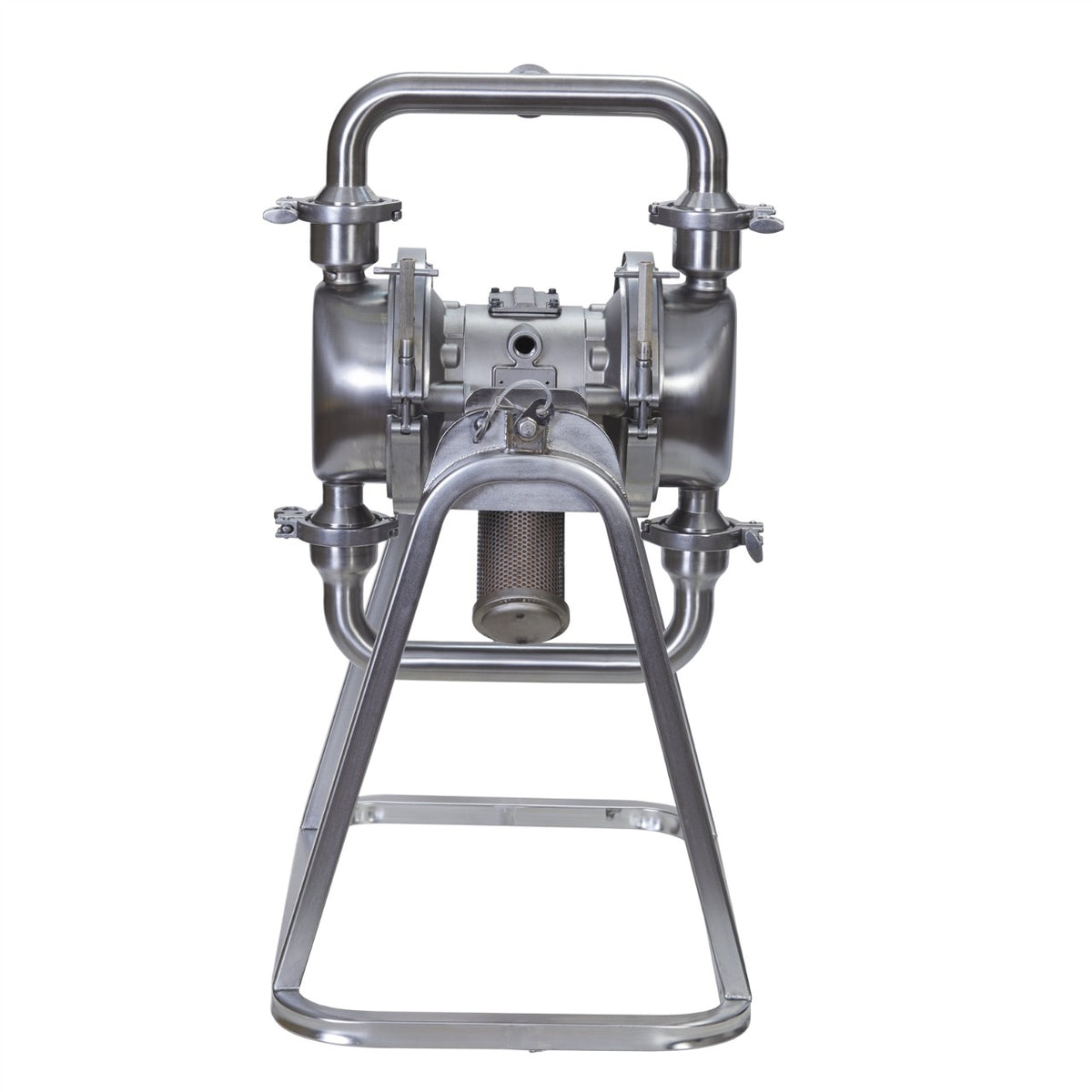

This SaniForce 1590 HS 1.5" stainless steel pneumatic diaphragm pump is built for food and personal care applications, with an SS center, SS seats, CW balls, and SP diaphragms for sanitary, high-solids fluid transfer.
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | PTFE |
| Center Section Material | Stainless Steel |
| Compatible Material | Edible Oil, Food, Personal Care |
| Compressor Required | Yes |
| Configuration Code | 1590HS.PSP1ASSASSPTPSEP31 |
| Connection Type | Tri-Clamp |
| Diaphragm Material | PTFE/Santoprene 2-Piece |
| Fluid Passage Size (cm) | 3.8 |
| Fluid Passage Size (in) | 1.5 |
| Fluid Passage Size (mm) | 38 |
| Fluid Section Material | 316L Stainless Steel |
| For Use With | Food, Personal Care |
| Hazardous Location Approval | ATEX, IECEx |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | EPDM |
| Material | Stainless Steel |
| Material Certification | EN 1024:2004 Type 3.1 (Serialized) |
| Maximum Air Consumption (SCFM) | 150 |
| Maximum Air Pressure (MPa) | 0.8 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 165 |
| Maximum Flow Rate (GPM) | 105 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (in) | 0.5 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | SaniForce |
| Overall Height (in) | 32.6 |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Pump Type | High Sanitation |
| Seat Material | 316 Stainless Steel |
| Series | 1590 HS |
| Standards Met | FDA Compliant Materials, EC 1935/2004, USP Class VI |
| Surface Finish | 32 Ra |
| Tri-Clamp Connection Size | 1.5-inch |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 89 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 800 |
| Maximum Flow Rate (L/min) | 397.5 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 800 |
| Maximum Solid Size (cm) | 1.27 |
| Maximum Solid Size (mm) | 12.7 |
