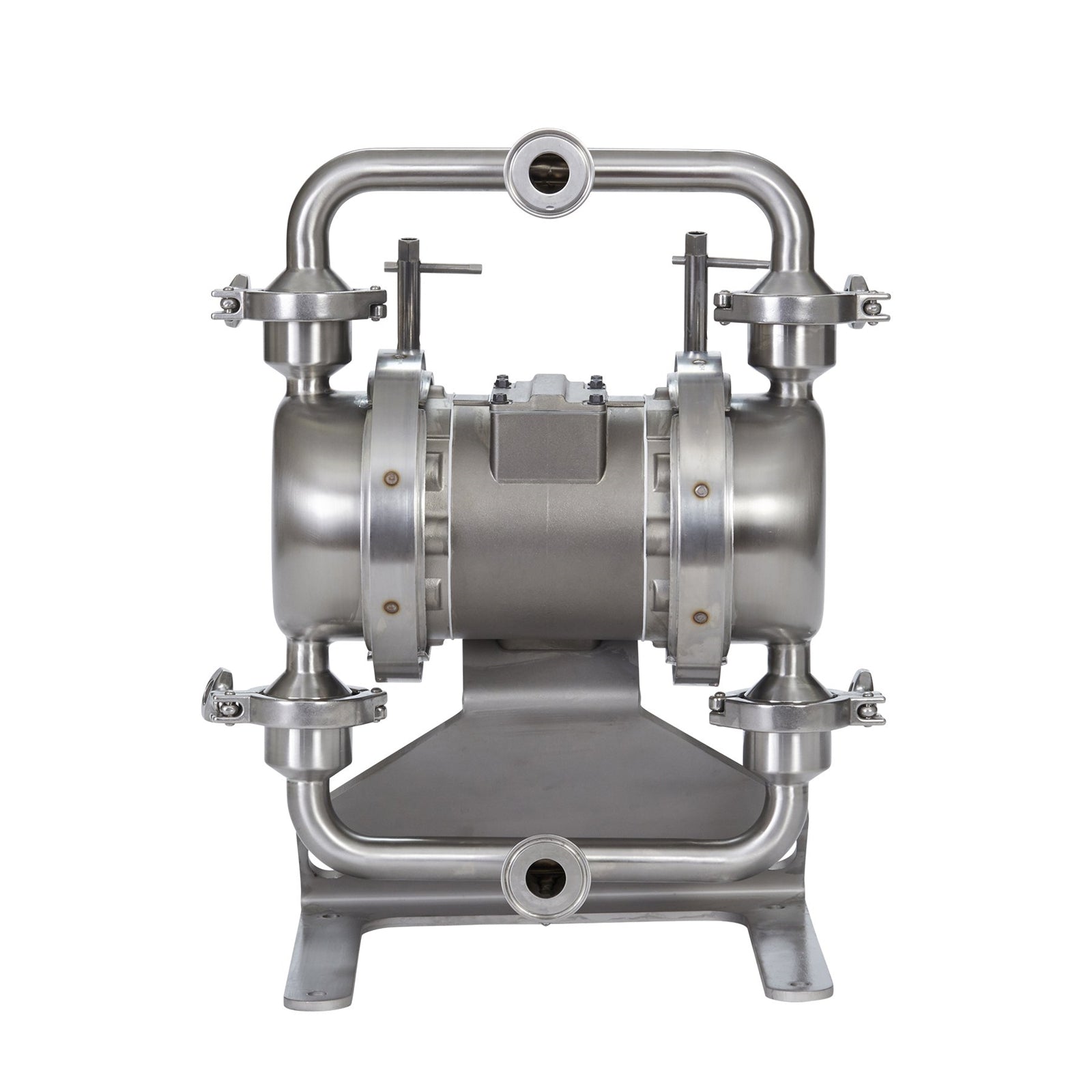

This Graco SaniForce 1040 1" HS stainless steel pneumatic diaphragm pump features a SS center, SS seats, PT balls, and PS diaphragms for sanitary, high-solids fluid transfer applications.
Specifications
| Model | SaniForce 1040 HS |
| Port Size (in) | 1 |
Specifications
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Sanitary |
| Ball Material | PTFE |
| Center Section Material | Stainless Steel |
| Compressor Required | Yes |
| Configuration Code | 1040HS.PSP1ASSASSPTPSEP21 |
| Diaphragm Material | PTFE/Santoprene 2-Piece |
| Fluid Passage Size (cm) | 2.54 |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25.4 |
| Fluid Section Material | 316L Stainless Steel |
| For Use With | Food, Personal Care |
| Hazardous Location Approval | ATEX, IECEx |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | EPDM |
| Material | Stainless Steel |
| Maximum Air Consumption (SCFM) | 65 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 240 |
| Maximum Flow Rate (GPM) | 41 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Solid Size (in) | 0.44 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | SaniForce |
| Power Source | Pneumatic |
| Pump Ratio | 1:1 |
| Seat Material | 316 Stainless Steel |
| Standards Met | CE, ATEX, FDA Compliant Materials |
| Surface Finish | 32 Ra |
| Tri-Clamp Connection Size | 1-inch |
| Type | Pneumatic Diaphragm Pump |
| Weight (lb) | 50.5 |
| Maximum Air Pressure (bar) | 8 |
| Maximum Flow Rate (L/min) | 155 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Solid Size (cm) | 1.12 |
| Maximum Solid Size (mm) | 11.2 |
