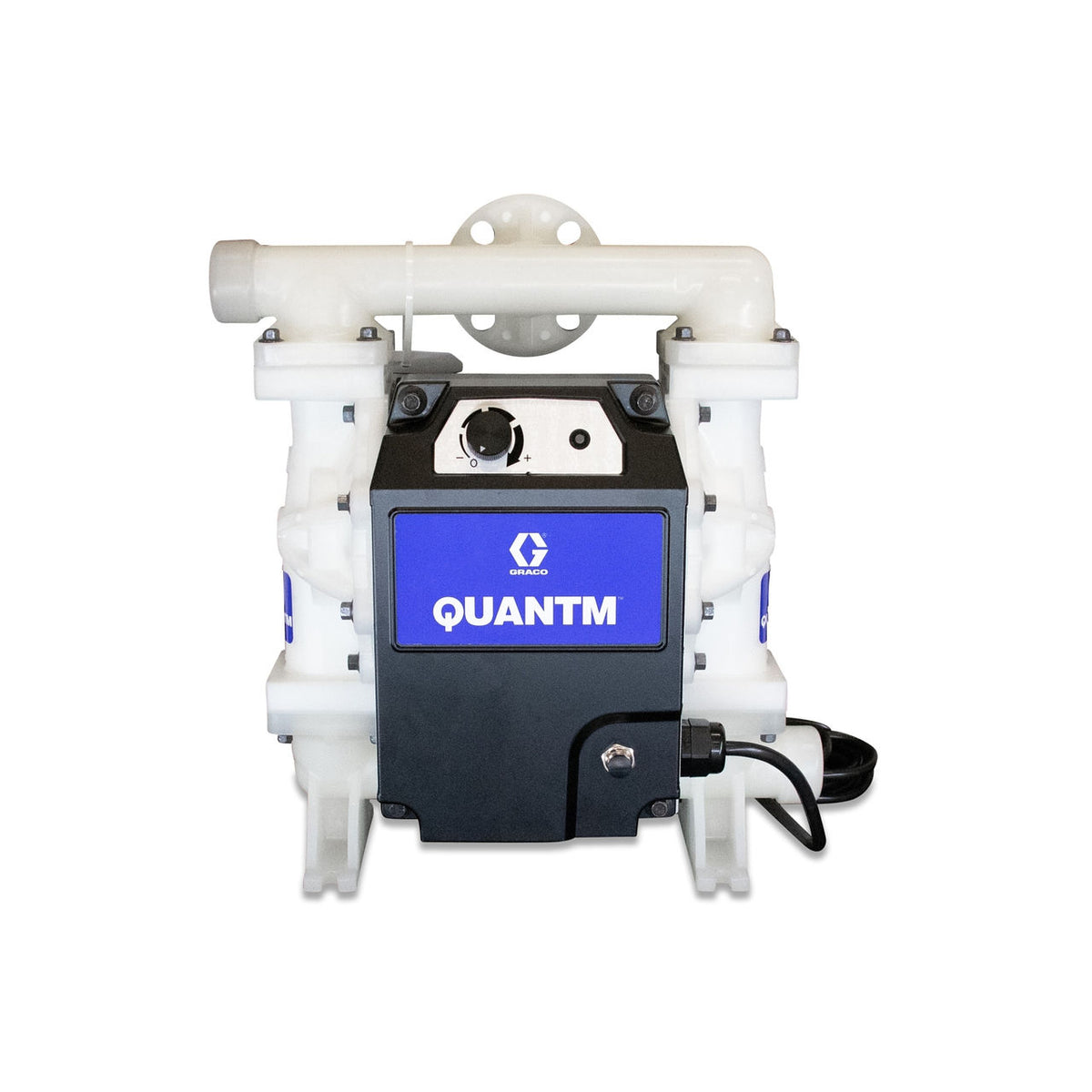

QUANTM i30, 1"Flange, Polypropylene Electric Diaphragm Pump, 240 VAC 1Ph, AL Center, PP Seat, FK Ball, PS Diaphragm
Specifications
| Application | Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer |
| Ball Material | FKM (Viton) |
| Center Section Material | Aluminum |
| Configuration Code | QTC-PPFC2PPFKPSPTP100 |
| Connection Type | Flange |
| Cord Length (ft) | 15 |
| Diaphragm Material | PTFE/Santoprene 2-Piece |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Flange |
| Fluid Inlet Thread Type | Flange |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Flange |
| Fluid Outlet Thread Type | Flange |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| Fluid Section | Polypropylene, Center Flange |
| Fluid Section Material | Polypropylene |
| Hazardous Location Approval | None |
| Manifold Configuration | Center Flange |
| Manifold O-Ring Material | PTFE |
| Maximum Amperage (A) | 10 |
| Maximum Flow Rate (GPM) | 30 |
| Maximum Fluid Operating Temperature (°C) | 66 |
| Maximum Fluid Operating Temperature (°F) | 150 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Minimum Fluid Operating Temperature (°C) | 0 |
| Minimum Fluid Operating Temperature (°F) | 32 |
| Model | QUANTM |
| Motor Type | Electric Drive |
| Seat Material | Polypropylene |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 200-240 VAC 1Ph |
| Weight (lb) | 61 |
| Wetted Material | Polypropylene, FKM (Viton), PTFE/Santoprene 2-Piece, PTFE |
| Cord Length (m) | 4.57 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (mm) | 25.4 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Solid Size (mm) | 3.2 |
