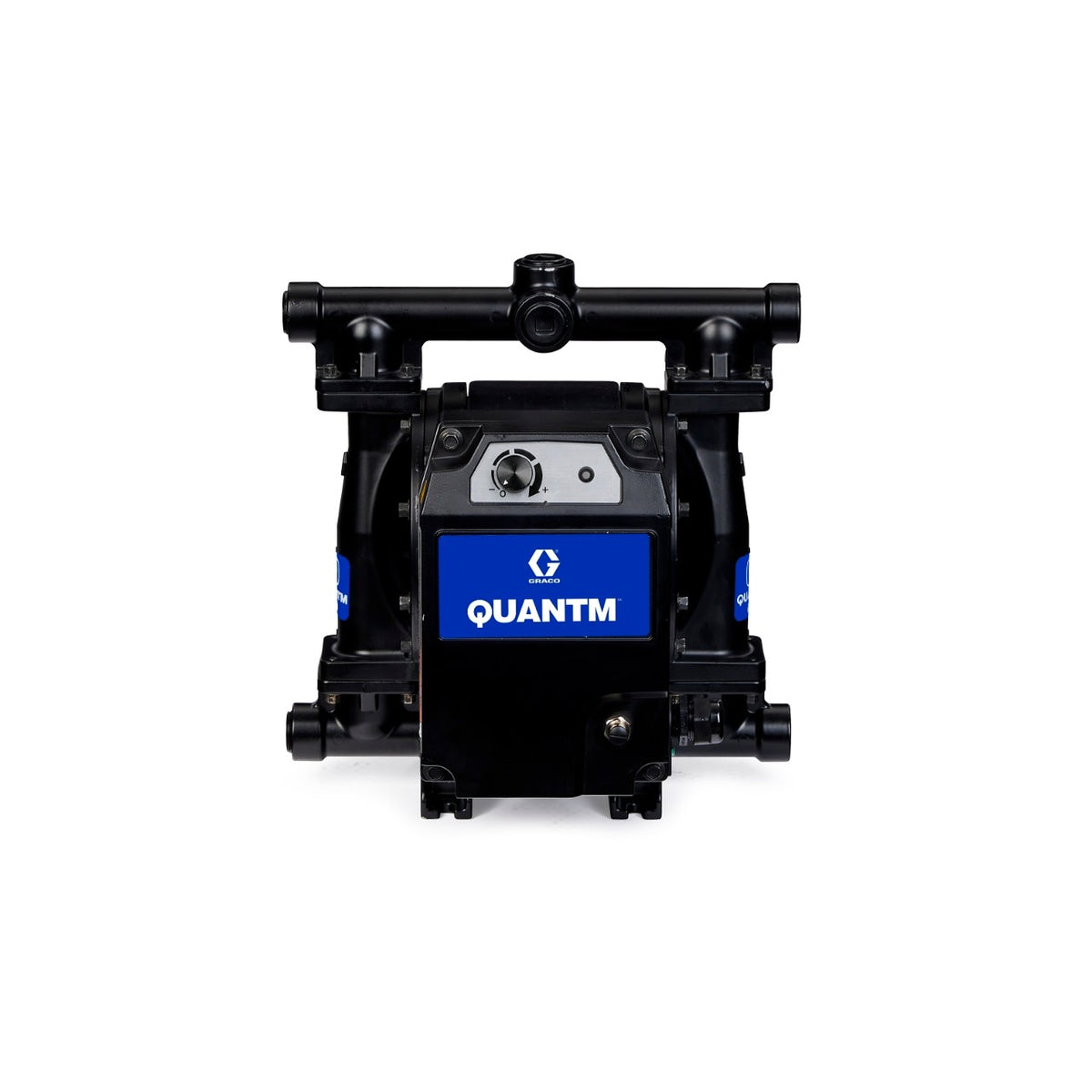

QUANTM i30, 1"NPT, Aluminum Electric Diaphragm Pump, 380-480 VAC 3Ph, AL Center, SP Seat, SP Ball, SP Diaphragm
Specifications
| Application | Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer |
| Ball Material | Santoprene |
| Center Section Material | Powder Coated Aluminum |
| Configuration Code | QTC-ALFC8SPSPSPPTA100 |
| Connection Type | NPT |
| Cord Length (ft) | 15 |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Passage Size (in) | 1 |
| Fluid Passage Size (mm) | 25 |
| Fluid Section | Aluminum, End Port, NPT |
| Fluid Section Material | Aluminum |
| Hazardous Location Approval | None |
| Manifold Configuration | End Port |
| Manifold O-Ring Material | PTFE |
| Maximum Amperage (A) | 5.3 |
| Maximum Flow Rate (GPM) | 30 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Solid Size (in) | 0.125 |
| Minimum Fluid Operating Temperature (°C) | -40 |
| Minimum Fluid Operating Temperature (°F) | -40 |
| Model | QUANTM |
| Motor Type | Electric Drive |
| Seat Material | Santoprene |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 380-480 VAC 3Ph |
| Weight (lb) | 62 |
| Wetted Material | Aluminum, Santoprene, PTFE |
| Cord Length (m) | 4.57 |
| Fluid Inlet Size (mm) | 25.4 |
| Fluid Outlet Size (mm) | 25.4 |
| Maximum Flow Rate (L/min) | 114 |
| Maximum Fluid Pressure (bar) | 6.9 |
| Maximum Solid Size (mm) | 3.2 |
| Weight (kg) | 28.1 |
