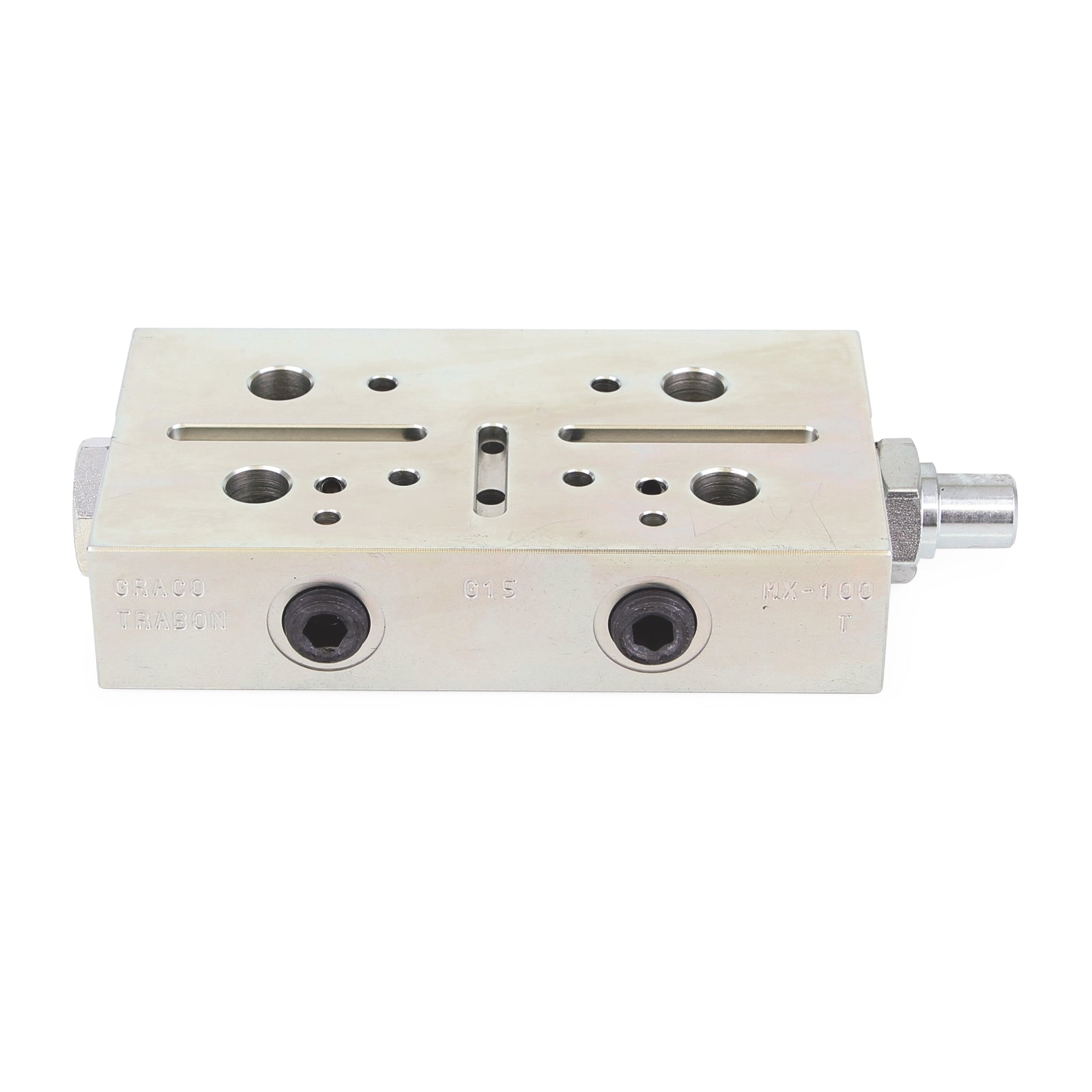

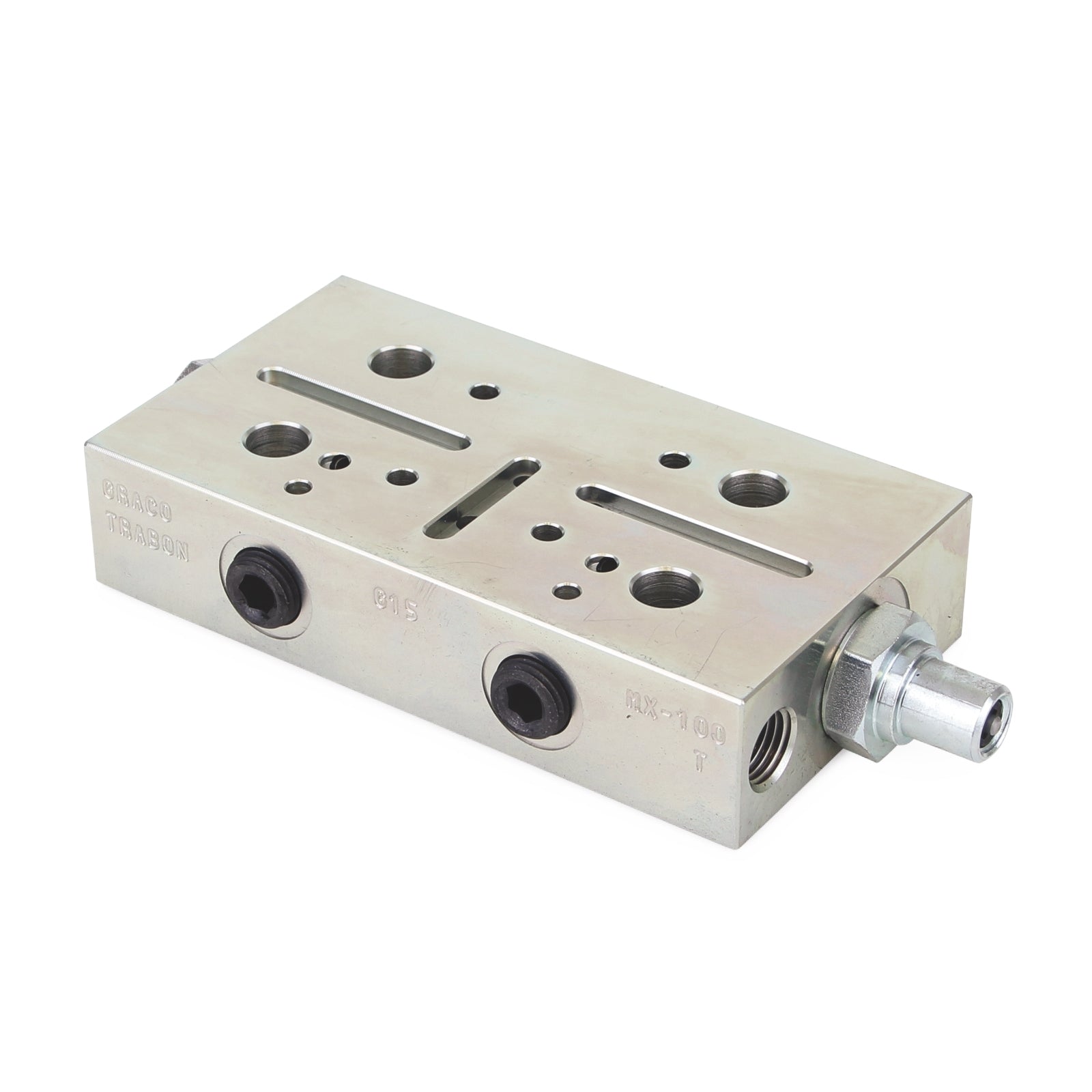

Graco Trabon® MX Divider Valve with Right Hand Cycle Pin Indicator - MX-50S - 1.64 cm³ (0.100 in.³)
Graco Trabon® MX Divider Valve with Right Hand Cycle Pin Indicator - MX-50S - 1.64 cm³ (0.100 in.³)

Graco Trabon® MX Divider Valve with Right Hand Cycle Pin Indicator - MX-50S - 1.64 cm³ (0.100 in.³)

Regular price
$728.00
Sale price
$728.00
Quantity must be 1 or more


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a additional delivery fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Greater output volumes for heavy service requirements make the Trabon MX Series ideal for steel and paper mill systems with its economical and compact design.

  • Lubricates large bearings
  • Delivers up to 4.92 cubic cm (0.3 cubic in.) per cycle and has a wide range of accessories to monitor critical lubrication points
  • Durable design withstands harsh environments and operating conditions
  • Built-in outlet check valves ensure accurate lube delivery every time
  • Can be easily accessorised with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
  • Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
  • Lubriquip part number 004-050-601
UPC Product: 00633955328600
Family Code: FAMMPM
Unit of Measure: EA
Height: 1.8 IN   |  4.572 CM
Length: 3.15 IN   |  8.001 CM
Width: 13.081 CM   |  5.15 IN
Volume: .017 FT3   |  0 M3
Chargeable Weight: 5.13 LBS  | 2.33 KG

Technical Specifications

Maximum Cycle Rate (cycles/min) 60
Maximum Working Pressure (psi) 3000
Outlet Size (mm) 6.35
Minimum Working Pressure (psi) 200
Outlet Size (cm) 0.635
Number of Outlets 1
Maximum Working Pressure (bar) 207
Maximum Operating Temperature (°F) 200
Cycle Indicator Cycle Indicator
Outlet Thread Type NPSF
Outlet Thread Gender Female
Outlet Size (in) 1/4
Maximum Working Pressure (kPa) 20700
Maximum NLGI Grade #2
Material Carbon Steel
Compatible Material Oil, Grease
Maximum Operating Temperature (°C) 93
Type Divider Valve
Divider Valve Series MX
Application In-Plant Machinery
Model Trabon
Series MX
Discharge Per Piston Stroke (in³) 0.100
