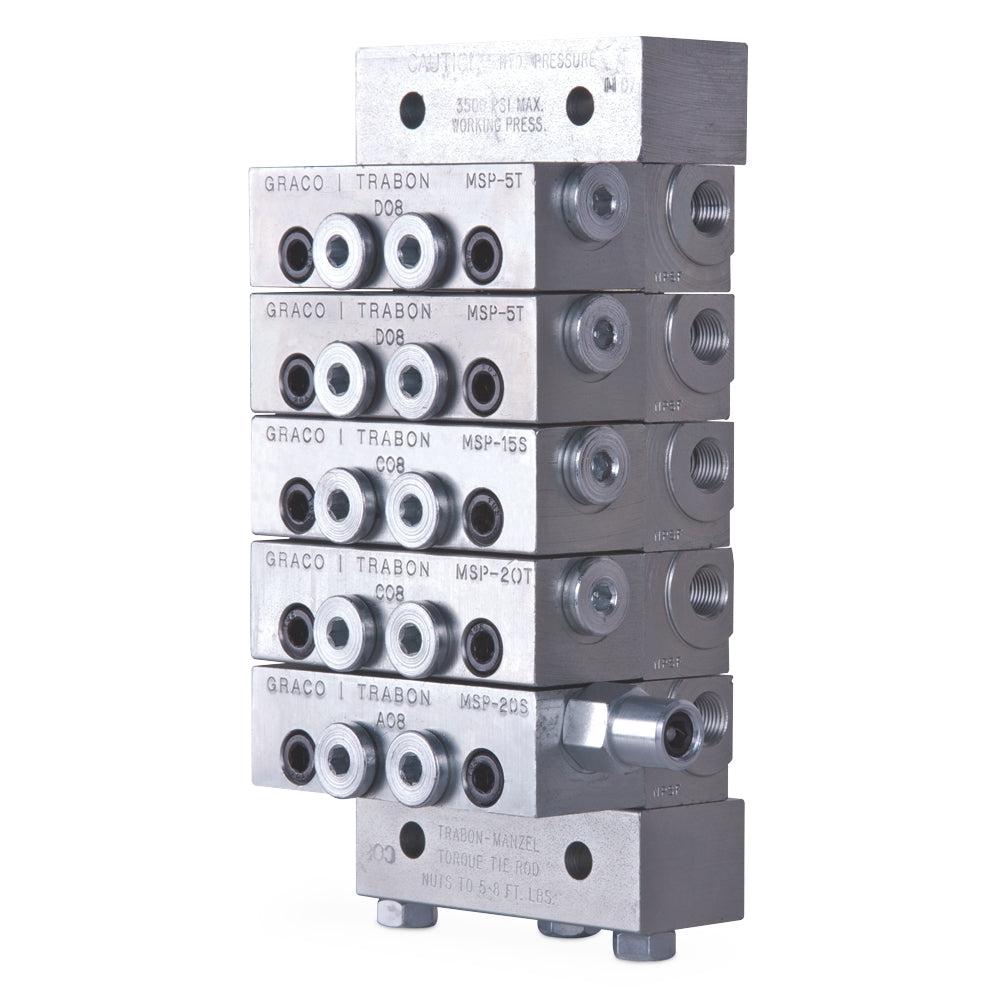

Graco 562730 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-25S - 0.050 in³ (0.82 cm³)
Graco 562730 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-25S - 0.050 in³ (0.82 cm³)
Graco 562730 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-25S - 0.050 in³ (0.82 cm³)

Graco 562730 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-25S - 0.050 in³ (0.82 cm³)

Regular price
$665.00
Sale price
$665.00
Quantity must be 1 or more


The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!

  • Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimising labour cost and maximising your machine uptime
  • Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
  • Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
  • Built-in outlet check valves ensure accurate lube delivery every time
  • Lubriquip part number 106-100-795
UPC Product: 00633955329805
Family Code: FAMMPM
Unit of Measure: EA
Height: 3.6 IN   |  9.144 CM
Length: 3.048 CM   |  1.2 IN
Width: 1.2 IN   |  3.048 CM
Volume: .001 FT3   |  0 M3
Chargeable Weight: .45 KG  | 1 LBS

Technical Specifications

Maximum Cycle Rate (cycles/min) 60
Minimum Working Pressure (bar) 14
Maximum Working Pressure (psi) 3500
Minimum Working Pressure (psi) 200
Number of Outlets 1
Maximum Working Pressure (bar) 241
Maximum Operating Temperature (°F) 350
Cycle Indicator Cycle Indicator
Maximum Working Pressure (kPa) 24100
Maximum NLGI Grade #2
Material Carbon Steel
Compatible Material Oil, Grease
Maximum Operating Temperature (°C) 176
Type Divider Valve
Divider Valve Series MSP
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Model Trabon
Series MSP
Discharge Per Piston Stroke (in³) 0.050
