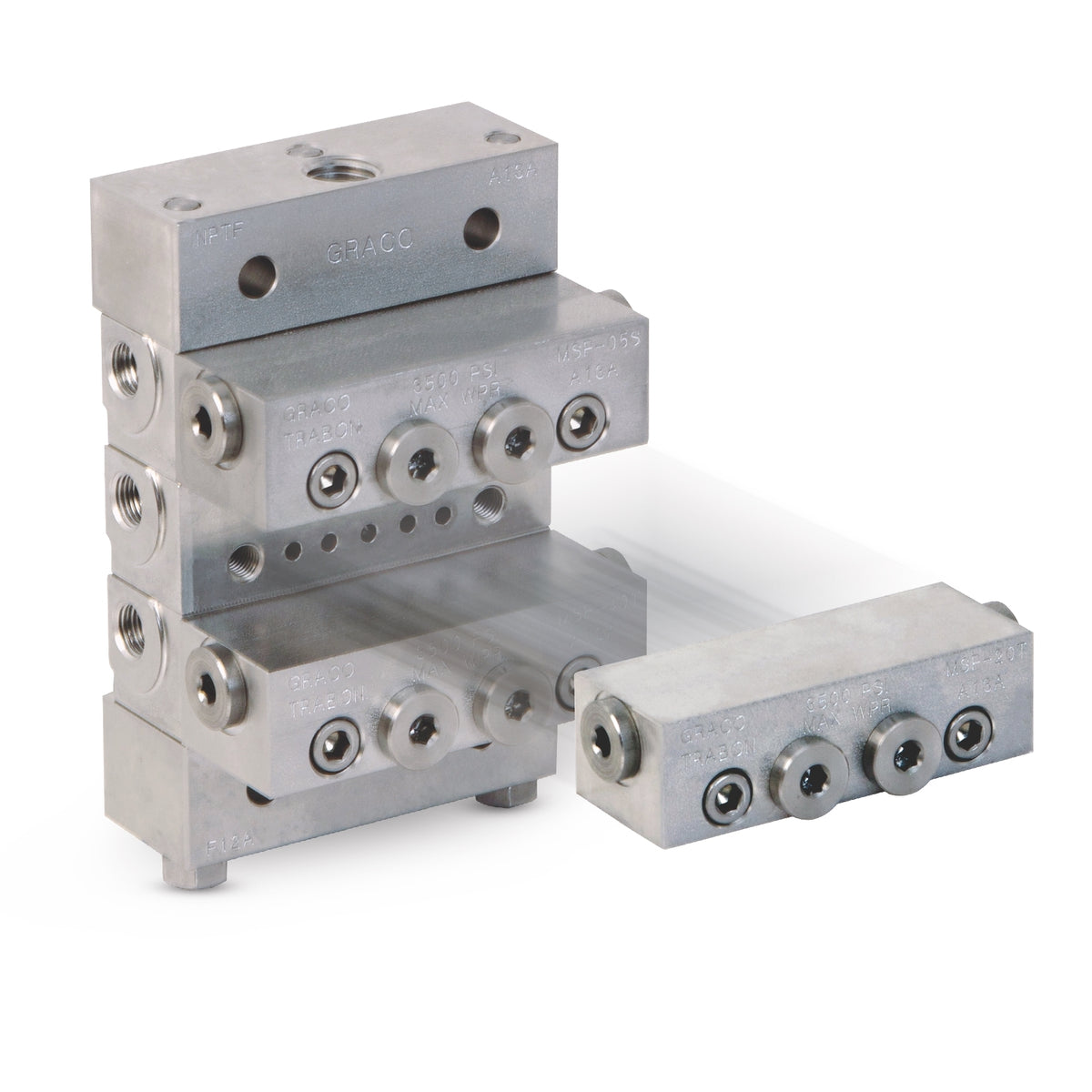

Graco Trabon® MSP Stainless Steel Divider Valve - 6 Section Base Plate Assembly, BSPP
Graco Trabon® MSP Stainless Steel Divider Valve - 6 Section Base Plate Assembly, BSPP
Graco Trabon® MSP Stainless Steel Divider Valve - 6 Section Base Plate Assembly, BSPP

Graco Trabon® MSP Stainless Steel Divider Valve - 6 Section Base Plate Assembly, BSPP

Regular price
$546.00
Sale price
$546.00
Quantity must be 1 or more


Trabon® MSP Stainless Steel Series sets the industry standard for quality, reliability and ease of use features. It was the original modular-style series progressive divider valve – and is still the best! Get the same reliable valve in stainless steel.

For machine tools, textile, glass and can machinery, and mobile equipment

  • Face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting.
  • Can be easily accessorised with electronic proximity switches to provide positive assurance of a successful lube event.
  • Outlet checks ensure accurate lube delivery, every time.
  • Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimising labour cost and maximising your machine uptime.
  • Manufactured in our factory for quality and reliability. Each assembly is honed and match fitted for precise lube delivery every time.
UPC Product: 00633955184831
Family Code: FAMMPM
Unit of Measure: EA
Height: 1.25 IN   |  3.175 CM
Length: 7.75 IN   |  19.685 CM
Width: 3 IN   |  7.62 CM
Volume: .017 FT3   |  0 M3
Chargeable Weight: 5 LBS  | 2.27 KG

Technical Specifications

Maximum Working Pressure (psi) 3500
Outlet Size (mm) 3.175
Inlet Thread Type BSPP
Inlet Size (in) 1/4
Outlet Size (cm) 0.3175
Number of Outlets 12
Maximum Working Pressure (bar) 241
Maximum Operating Temperature (°F) 350
Inlet Thread Gender Female
Cycle Indicator None
Outlet Thread Type BSPP
Outlet Thread Gender Female
Outlet Size (in) 1/8
Maximum Working Pressure (kPa) 24100
Maximum NLGI Grade #2
Material Stainless Steel
Compatible Material Oil, Grease
Maximum Operating Temperature (°C) 176
Type Divider Valve
Divider Valve Series MSP
Application On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
Model Trabon
Series MSP
Discharge Per Piston Stroke (in³) N/A
