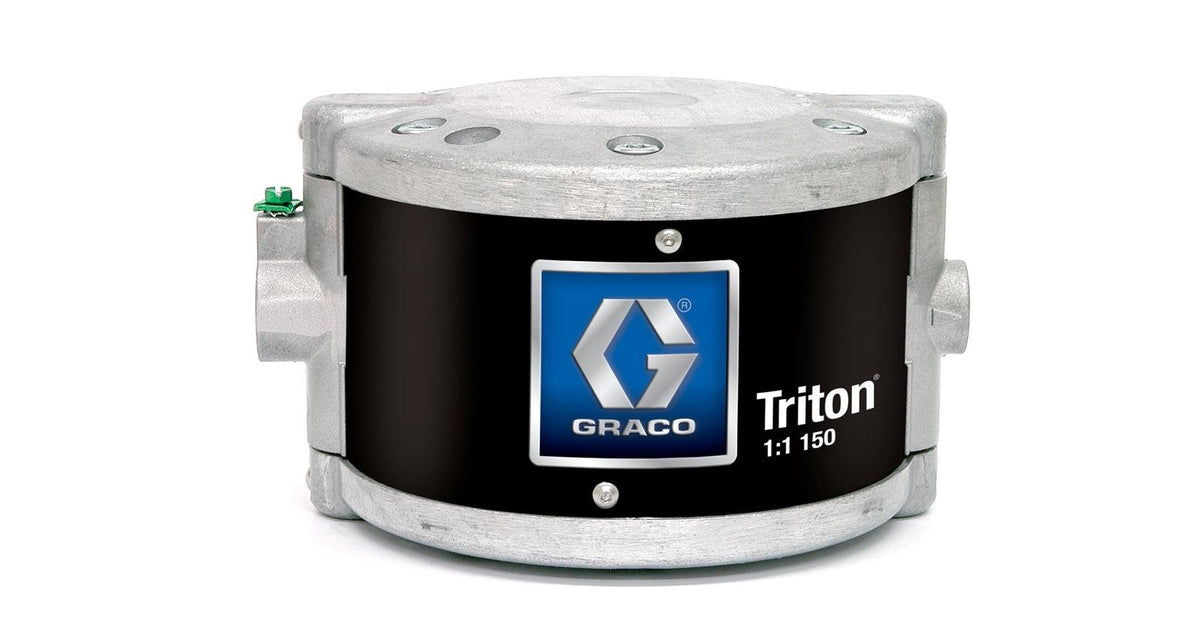

Effective alternative to traditional pressure pots and standard diaphragm pumps
UPC Product: 00633955768253
Family Code: FAMQFP
Unit of Measure: EA
Height:
9 IN
| 22.86 CM
Length:
11.5 IN
| 29.21 CM
Width:
8 IN
| 20.32 CM
Volume:
.479 FT3
| .014 M3
Chargeable Weight:
8.95 LBS
| 4.06 KG
Technical Specifications
| Type | Pneumatic Diaphragm Pump |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | BSPP |
| Application | Circulation |
| Fluid Inlet Size (cm) | 1.905 |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Size (mm) | 19.05 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (cm) | 0.9525 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Size (mm) | 9.525 |
| Fluid Outlet Thread Type | BSPT |
| Manifold Configuration | Center Port |
| Material | Aluminum |
| Maximum Air Pressure (bar) | 8 |
| Maximum Air Pressure (kPa) | 80 |
| Maximum Air Pressure (psi) | 115 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Flow Rate (L/min) | 32.2 |
| Maximum Fluid Pressure (bar) | 8 |
| Maximum Fluid Pressure (kPa) | 80 |
| Maximum Fluid Pressure (psi) | 115 |
| Maximum Operating Temperature (°C) | 80 |
| Maximum Operating Temperature (°F) | 176 |
| Minimum Operating Temperature (°C) | 10 |
| Minimum Operating Temperature (°F) | 50 |
| Model | Triton |
| Overall Height (in) | 4.88 |
| Power Source | Air |
| Pump Ratio | 1:1 |
| Series | 308 |
| Standards Met | ATEX, CE |
| Weight (lb) | 9 |
| Wetted Material | Aluminum, Stainless Steel |
| Maximum Fluid Pressure (MPa) | 0.8 |
| Maximum Air Pressure (MPa) | 0.8 |
| Connection Type | Threaded |
