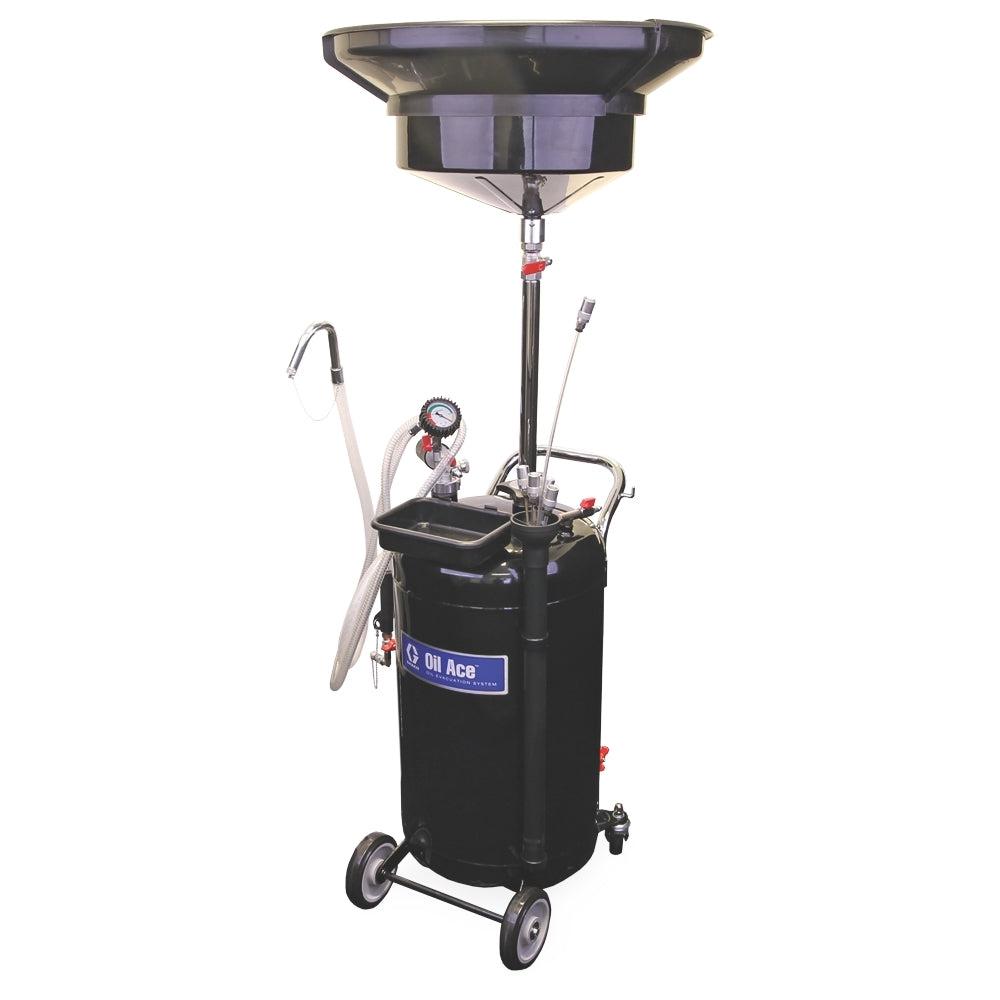

For shops requiring flexibility when it comes to removing used fluids, use Graco’s multi-purpose used oil evacuation system.
Large Offset Collection Pan - Wide offset collection bowl prevents splashing.
Vacuum Gauge - Ensure peak performance with easy-to-read vacuum gauge.
Easy to Drain- Pressurise using shop air for easy oil evacuation.
Vacuum Probes- Variety of flexible suction attachments and adapters included.
Large 90 Litre (24 Gallon) Capacity Receiver- Perfect for small to large shops without an evacuation system.
Specifications
UPC Product: 00755652702498
Family Code: FAMWRC
Unit of Measure: EA
Height:
42 IN
| 106.68 CM
Length:
19 IN
| 48.26 CM
Width:
17.5 IN
| 44.45 CM
Volume:
8.082 FT3
| .229 M3
Chargeable Weight:
84.127 LBS
| 38.141 KG
Technical Specifications
Tank Capacity (L)
90
Tank Capacity (gal)
24
Compatible Fluid
Used Oil;ATF, Used Oil;ATF, Huile usagée ; ATF, Altöl;ATF, Gebruikte olie;ATF, Olio usato; ATF
Overall Height (cm)
135 to 180
Overall Length (cm)
61
Overall Height (in)
53.1 to 70.8
Overall Length (in)
24
Overall Length (mm)
609.6
Overall Width (cm)
40.6
Overall Width (in)
16
Overall Width (mm)
406.4000
Maximum Operating Temperature (°C)
90
Maximum Operating Temperature (°F)
194
Minimum Operating Temperature (°C)
-1
Minimum Operating Temperature (°F)
30
Weight (kg)
28.6
Weight (lb)
63
Wetted Parts
Steel, Copper, PVC Plastic, Rubber, Aluminum
Type
Fluid Reclamation Package
Model
Oil Ace
