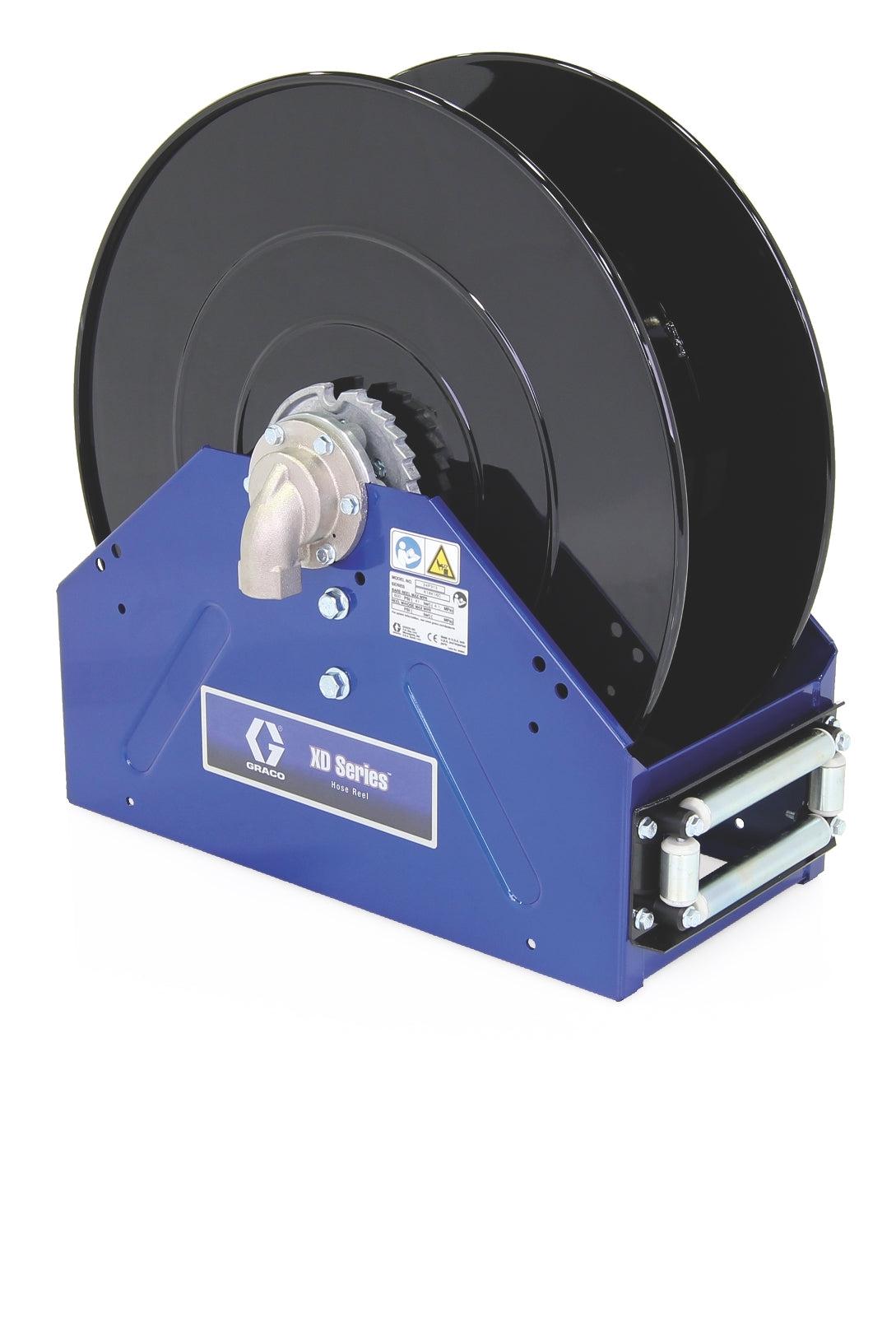

Graco XD40™, Oil, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, Truck/Bench Only, Metallic Blue
Graco XD40™, Oil, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, Truck/Bench Only, Metallic Blue

Graco XD40™, Oil, 1 in. (25 mm) Inlet, Bare Reel (1 in. X 50 ft. (25 mm X 15 m) Capacity), NPT, Truck/Bench Only, Metallic Blue

Regular price
$1,965.00
Sale price
$1,965.00
Quantity must be 1 or more


Graco’s XD40 and XD50 Series Hose Reels are engineered to take a beating and still reliably perform in harsh environments so it’s ready when you need it. Choose from several color options, thread types and hoses. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze and waste oil.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Extensive Hose Offering - Standard models come complete with factory installed hoses on the reel, large selection of optional reels to fit various applications
  • Meets Worldwide Needs - Built standard with 90° elbow with NPT threads
  • Rugged and Durable Body - Heavy-duty welded spool and ribbed frame for extra strength and toughness over the long haul
UPC Product: 00633955379725
Family Code: FAMXD4
Unit of Measure: EA
Height: 33.6 IN   |  85.344 CM
Length: 19.2 IN   |  48.768 CM
Width: 31.2 IN   |  79.248 CM
Volume: .33 M3   |  11.648 FT3
Chargeable Weight: 151 LBS  | 68.49 KG

Technical Specifications

Color Metallic Blue
Dry Weight (lb) 125
Hose Inside Diameter (in) 1
Hose Inside Diameter (mm) 25.4
Hose Length (ft) 50
Hose Length (m) 15
Inlet Size (in) 1
Inlet Size (mm) 25.4
Inlet Thread Type NPT
Maximum Working Pressure (psi) 2000
Outlet Size (in) 1
Outlet Size (mm) 25.4
Overall Height (in) 26.13
Overall Height (mm) 664
Overall Length (in) 26.4
Overall Length (mm) 671
Overall Width (in) 16.54
Overall Width (mm) 420
Series 40
Wetted Parts Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber
Application Oil
Type Spring-Rewind Reel
Recommended Environment Indoor, Outdoor
Frame Type Box Frame
Bare Reel 1
Reel Thread Type NPT
Recommended Fluid Type 机油, Oil, Aceite
Hose Reel Type Bare Reel
Model XD
includes_hose No
