Graco XDL33B XDX™ 10, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 1/2 in X 35 ft (13 mm X 11 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco XDL33B XDX™ 10, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 1/2 in X 35 ft (13 mm X 11 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Regular price
$868.00
Sale price
$868.00
Quantity must be 1 or more

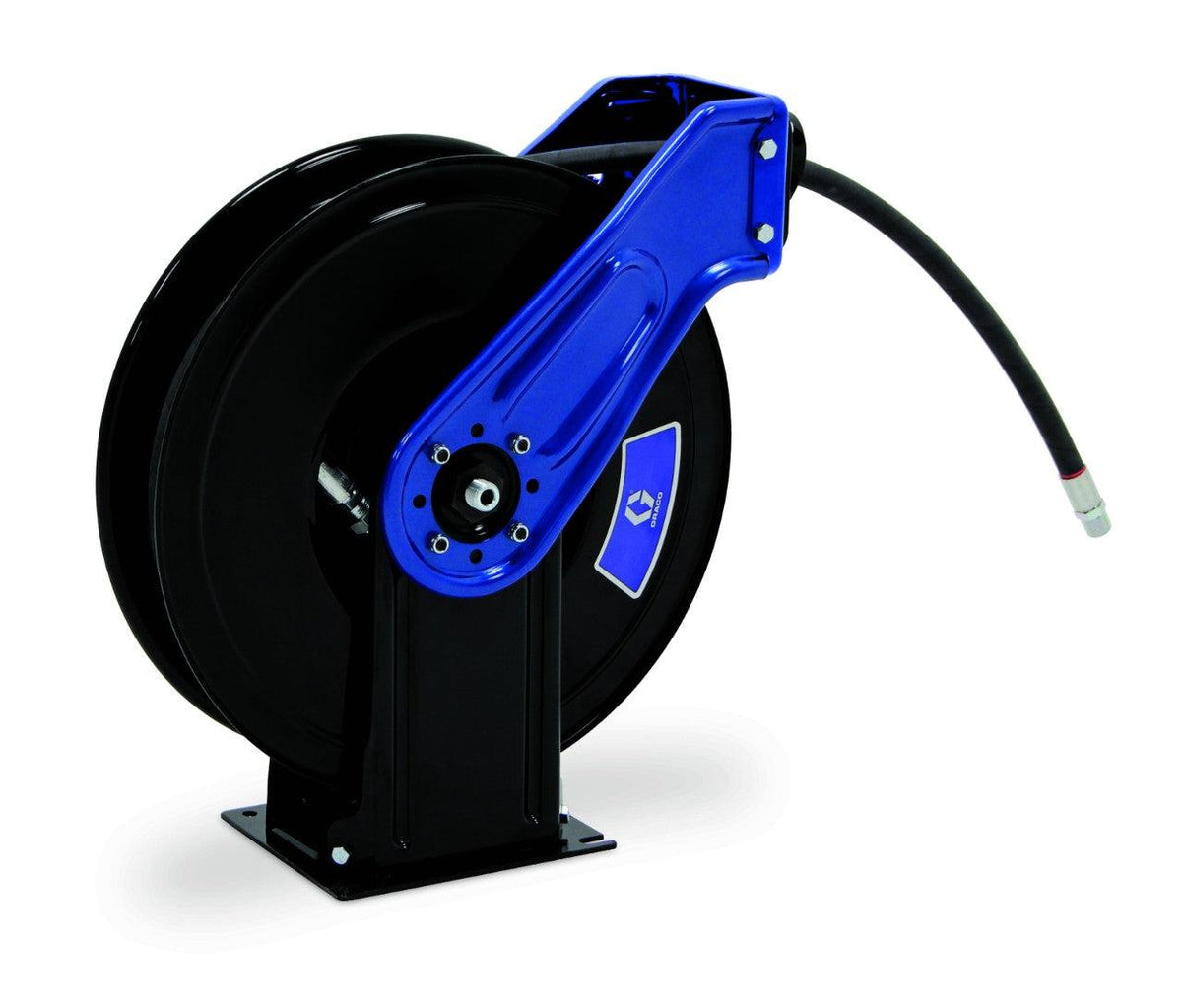

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications.

Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

  • Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
  • Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
  • Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
  • Durable Finish - Baked-on enamel finish protects reel from corrosion
  • Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
Application Air, Water, Antifreeze, WWS
Color Metallic Blue
Frame Type Dual Pedestal
Hose Inside Diameter (in) 1/2
Hose Length (ft) 35
Hose Reel Type Reel with Hose
Inlet Size (in) 1/2
Inlet Thread Gender Male
Inlet Thread Type NPSM
Maximum Temperature (°F) 190
Maximum Working Pressure (psi) 300
Minimum Temperature (°F) -20
Mount Location Truck Mount, Bench Mount
Outlet Size (in) 1/2
Outlet Thread Gender Male
Overall Height (in) 22.5
Overall Length (in) 18.5
Overall Width (in) 7.5
Recommended Environment Indoor, Outdoor
Recommended Fluid Type Air, Water, Antifreeze, WWS
Reel Thread Type NPT
Series 10
Type Spring-Rewind Reel
Wetted Parts Stainless Steel, Anodized Aluminum, Nitrile Rubber

;
