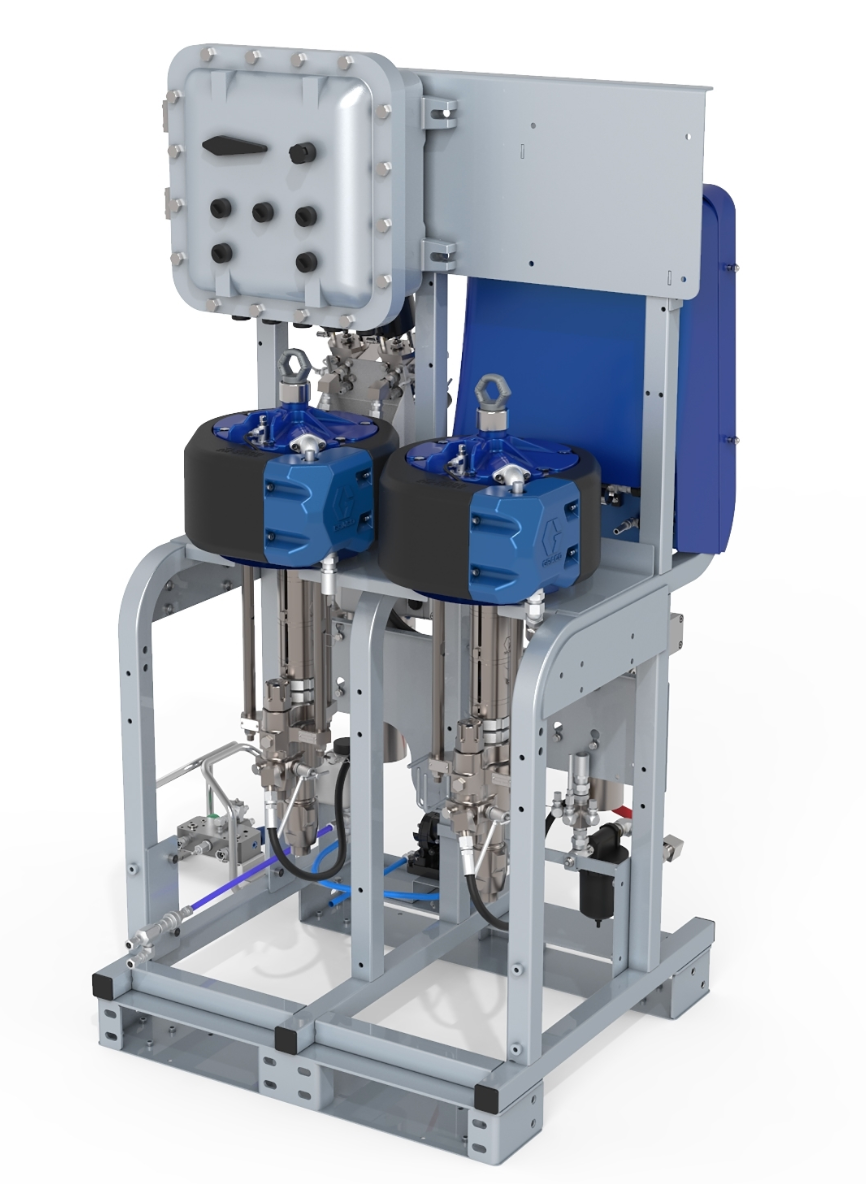

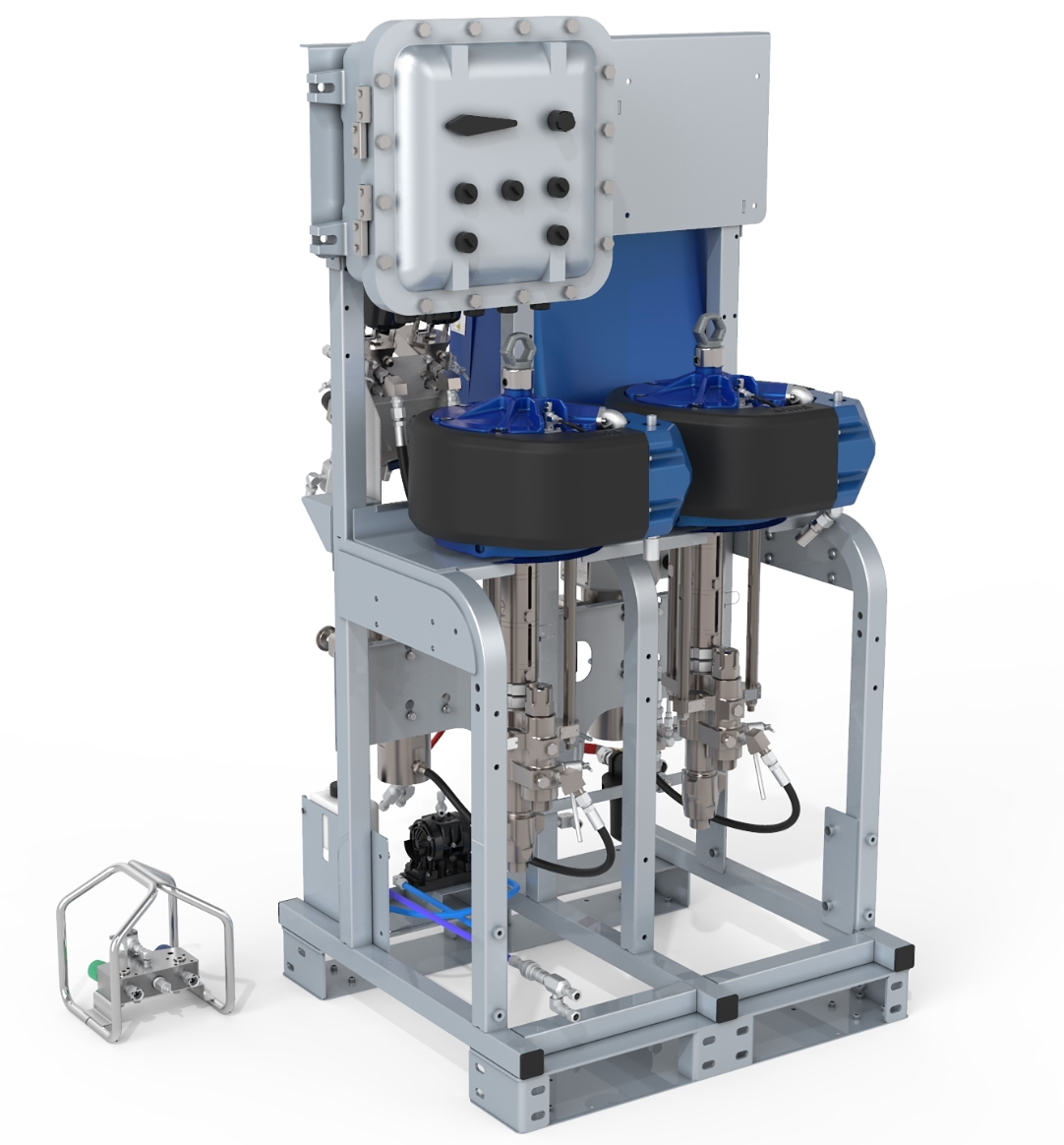

Graco XM7J0W XM70 Skid System, Hazardous Location Components, With Water Jacketed Hose, 240V
Graco XM7J0W XM70 Skid System, Hazardous Location Components, With Water Jacketed Hose, 240V
Graco XM7J0W XM70 Skid System, Hazardous Location Components, With Water Jacketed Hose, 240V
Graco XM7J0W XM70 Skid System, Hazardous Location Components, With Water Jacketed Hose, 240V

Graco XM7J0W XM70 Skid System, Hazardous Location Components, With Water Jacketed Hose, 240V

$105,760.00
$105,760.00
Quantity must be 1 or more
Request a Quote / More Information

Our sales team typically responds within 1 business day.

Sign-up to get 5% off your first order
Click for recommended parts and accessories


Feel free to call or chat with us for recommendations.

📦 Shipping times may vary contact us for more information
🚚 Free Shipping on orders $500 and up., some items have a optional lift gate for a additional fee
Flat rate of $12.50 for orders below $500.
Click here for more info.
🔁 30-day returns. Click here for more info.

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

  • Variable ratio system - handles material ratios from 1:1 to 10:1
  • Dosing technology assures accurate, on-ratio mixing for better yield and less waste
  • Advanced, intuitive user controls provide real-time display and adjustment of ratio
  • USB port lets you easily access and download historical spraying data
  • Supports multiple spray guns for added productivity



Operational Specifications
UPC Product 755652983170
Division CED
Family Code FAMXM2
Country of Origin US
Unit of Measure EA
Height 0 IN  |  0.000 CM
Length 0 IN  |  0.000 CM
Width 0 IN  |  0.000 CM
Volume 0 FT3  |  0.000 M3
Shipping Weight 0 LBS  |  0.000 KG
Technical Specifications
Air Inlet Size (in) 3/4
Air Inlet Thread Gender Female
Fluid Inlet Size (in) 1-1/4
Fluid Inlet Thread Gender Male
Includes Merkur Solvent Flush Pump, Junction Box, Remote Manifold Carriage, XTR+ Gun, 35 ft Integration Hose and Static Mixers, Viscon HF Heaters, Heated Hose Circulation Kit
Location Category Hazardous Location
Maximum Air Consumption (SCFM) 70 scfm/gpm at 100psi
Maximum Air Inlet Pressure (bar) 10.3
Maximum Air Inlet Pressure (psi) 150
Maximum Flow Rate (L/min) 11.4
Maximum Fluid Temperature (°C) 71
Maximum Fluid Temperature (°F) 160
Maximum Fluid Viscosity (cP) 20000
Maximum Mix Ratio 10:1
Maximum Operating Temperature (°C) 54
Maximum Operating Temperature (°F) 130
Maximum Working Pressure (bar) 435
Maximum Working Pressure (MPa) 43.5
Maximum Working Pressure (psi) 6300
Minimum Flow Rate (GPM) 0.25
Minimum Flow Rate (L/min) 0.95
Minimum Mix Ratio 1:1
Mix Accuracy (%) 5%
Primary Fluid Heater Included Yes
Remote Mix Manifold Included Yes
Sound Pressure Level (dB(A)) 84.8 at 70psi (0.48 MPa, 4.8 bar)
Maximum Air Consumption (m3/min) 1.96 m3/min per lpm at 100psi
Series 70
Model XM
