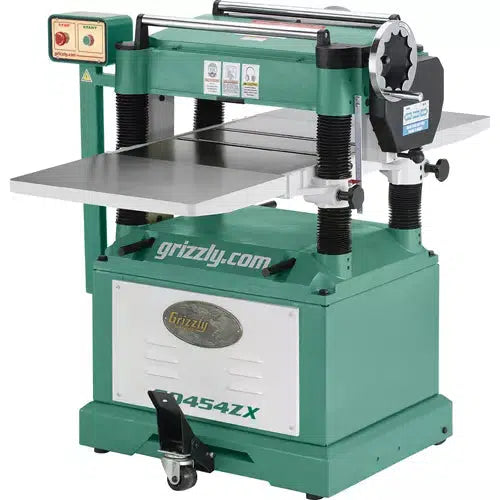

Experience precision with the G0454ZX 20" Planer, featuring a powerful 5 HP motor and a high-performance spiral cutterhead for impeccable results.
Cutting-Edge Spiral Cutterhead: This planer boasts a 4-row spiral cutterhead equipped with 98 indexable carbide inserts, ensuring a smooth and flawless surface finish on your workpieces.
Insert Rotation for Longevity: Each insert can be rotated up to three times, providing a fresh, sharp edge for consistently superior results over time.
High-Powered Performance: The 5 HP motor drives the cutterhead at 4902 RPM, allowing you to plane stock up to 20" wide and 8" thick with a depth of up to 1/16" per pass.
Exceptional Power Transmission: The triple V-belt drive delivers robust power transmission, stability, and the extra torque required for handling tough materials.
Effortless Operation: Achieve smooth and clean planer passes with the two-speed automatic board feed, adjustable bed rollers, and bed return rollers.
Mobility Meets Convenience: Equipped with a built-in mobile base, you can easily relocate this planer within your workshop as needed.
Additional Features: The G0454ZX planer also includes a cast-iron handwheel for depth adjustment, inch and metric measuring scales, and solid cast-iron extension wings.
When the time comes, the H7319 are the 14mm x 14mm x 2.0mm replacement inserts needed.
The G0454ZX manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.
CSA certified
SPECIFICATIONS:
Motor: 5 HP, 240V, single-phase, 22A
Maximum stock width: 20"
Maximum stock thickness: 8"
Minimum stock thickness: 3/16"
Minimum stock length: 8"
Maximum cutting depth: 1/16"
Cutterhead type: 4-Row spiral, 98 inserts
Cutterhead speed: 4902 RPM
Feed rate: 15 & 20 FPM
Table size: 20" x 55-1/2"
Dust port size: 5"
Overall dimensions: 44" W x 56" D x 45" H
Approximate shipping weight: 942 lbs.
FEATURES:
Two-speed automatic board feed
Two adjustable bed rollers and board return rollers
Built-in mobile base
Heavy-duty cast-iron handwheel depth adjustment
Magnetic switch with thermal overload protection
Inch and metric measuring scale
Chip breaker, pressure bar, and anti-kickback fingers
Four-column support with table locks
1-year limited warranty
