Grizzly H8192 - 1" x 42" Belt / 8" Disc Combo Sander
Grizzly H8192 - 1" x 42" Belt / 8" Disc Combo Sander

Grizzly H8192 - 1" x 42" Belt / 8" Disc Combo Sander

Regular price
$514.60

See Lower Price in Cart

Quantity must be 1 or more

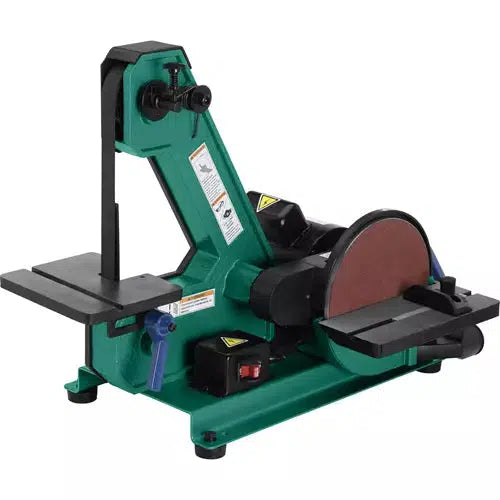

H8192 1" x 42" Belt / 8" Disc Combo Sander

A perfect match for your bandsaw or scroll saw.

The H8192 1" x 42" Belt / 8" Disc Combo Sander will shape and smooth right to the line.

Great for touching up work on your small jobs that need a little attention.

A 1/3 HP, capacitor-start induction motor powers the 1" x 42" belt and 8" disc through any sanding chore and the cast-iron tilting tables give you the flexibility you demand.

Features single-knob tracking to get your belt back on track. The two dust ports easily connect to your dust collection system.

For a full range of replacement belts for the H8192, shop here. Replacement PSA sanding discs are available in a variety of grits.

Like all Grizzly combo sanders, the H8192 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The H8192 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your combo sander.

The Grizzly Customer Service and Technical Support Teams are also U.S.-based. Parts for the combo sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS

  • Motor: 1/3 HP, 110V, single-phase, 4A
  • Sanding belt size: 1" x 42"
  • Sanding belt speed: 3000 FPM
  • Belt platen size: 1" x 4"
  • Belt sanding table size: 6" x 7"
  • Disc diameter: 8"
  • Disc backing type: PSA
  • Disc speed: 1725 RPM
  • Disc sanding table size: 4" x 10"
  • Table tilt: 0–45°
  • Belt dust port OD: 1-7/8"
  • Belt dust port ID: 1-1/2"
  • Disc dust port OD: 1-3/4"
  • Disc dust port ID: 1-1/2"
  • Footprint: 11" x 18-1/4"
  • Overall dimensions: 19-1/2" W x 26" D x 14-1/2" H
  • Approximate shipping weight: 64 lbs.

FEATURES:

  • Dual cast-iron tables with miter slots
  • Both tables tilt to 45°
  • Single-knob belt tracking
  • Includes 80 grit belt and disc

;
