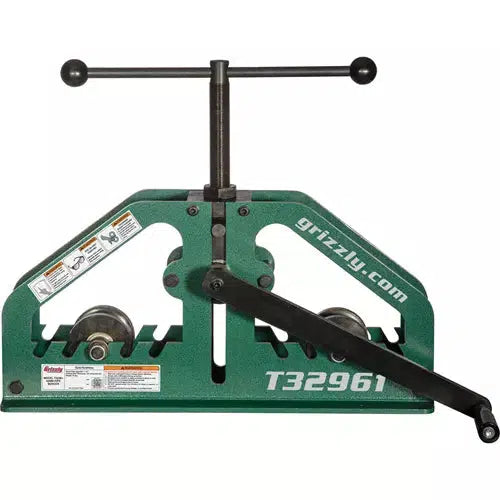

Grizzly T32961 60mm Radius Bender

Versatile portable radius bender that can be used on a benchtop and then stored away.

The T32961 Radius Bender is designed to make radius bends of round pipe, round tubing, rectangular tubing, and square tubing.

The lower quick-change lower wheels have five slotted options in the frame to choose from based on the arc of the bend desired.

The rotary rod raises lowers the upper roller by twisting the Acme screw.

Insert your pipe or tubing onto the lower wheels and turn the crank to move the workpiece through. Repeat until the desired curve is achieved.

Additional tube rollers from 1/2"–2" and round pipe rollers from 1/4"–1-1/2" are available.

Like all Grizzly tools, the T32961 comes with a 1-year warranty.

The T32961 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bender.

Parts for the pipe bender may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Maximum bending angle 180°
• Round pipe capacity: 1-1/2"
• Round pipe minimum. outer radius: 20"
• Round tube capacity: 2"
• Round tube minimum outer radius: Variable
• Square tube capacity: 2"
• Square tube minimum outer radius: 70"
• Rectangular tube capacity: 1" x 2"
• Rectangular tube min. outer radius: 60"
• Flat bar capacity: 1-1/4"
• Flat bar minimum outer radius: 10"
• One set of 1-1/2" round tube rollers
• Quick-change lower rollers
• Approximate shipping weight: 73 lbs.

FEATURES:

• One set of 1-1/2" round tube rollers
• Quick-change lower rollers
