Grizzly T32994 - 43-5/16" Scale

Grizzly T32994 - 43-5/16" Scale

Regular price
$239.61
Sale price
$239.61
Quantity must be 1 or more

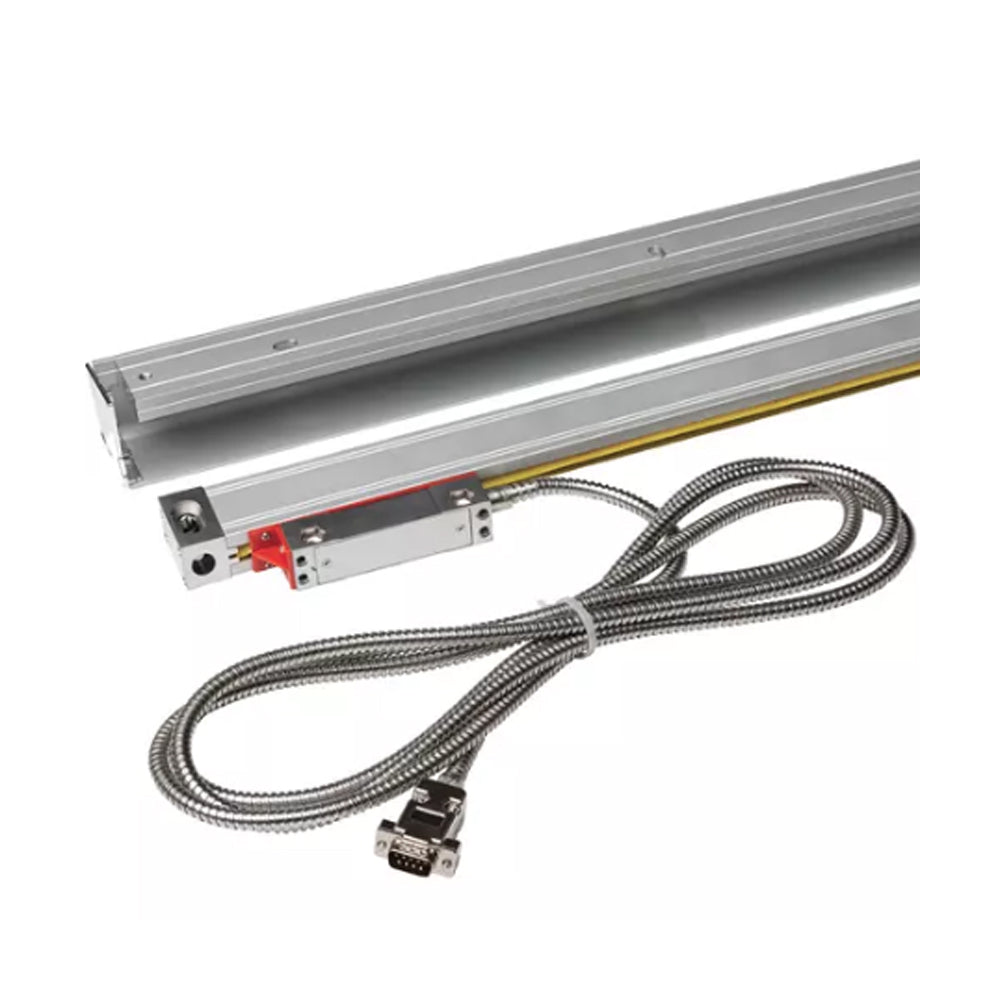

T32994 43-5/16" Linear Optical Scale

Make your own custom DRO starting with this scale.

The T32994 43-5/16" Linear Optical Scale boasts quality features that can’t be matched at this price.

The glass transducers are individually inspected and calibrated to ensure accuracy and compliance with the specifications.

The slide carrier uses five P5-grade bearings to achieve smooth and accurate movement.

The plastic seals offer superior oil resistance, durability, and high elastic recovery properties.

Like all Grizzly scales, the T32994 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for the scale may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Supply voltage: DC 5V
  • Resolution: 5μm
  • Travel length: 43-5/16"
  • Accuracy: ±15μm
  • Optical period: 20μm
  • Optical measurement: Transmissive infrared
  • Repeatability: 2μm
  • Seal protection: IP53
  • Scanning head sliding system: Vertical five-bearing sliding system

;
