Grizzly T33009 - 7-7/8" x 43-5/16" 2-Axis Lathe DRO

Grizzly T33009 - 7-7/8" x 43-5/16" 2-Axis Lathe DRO

Regular price
$564.63
Sale price
$564.63
Quantity must be 1 or more


T33009 7-7/8" x 43-5/16" 2-Axis Lathe DRO

Everything you need for a custom digital readout for your lathe.

The T33009 7-7/8" x 43-5/16" 2-Axis Lathe DRO bundles all of the components you could want to add to your lathe.

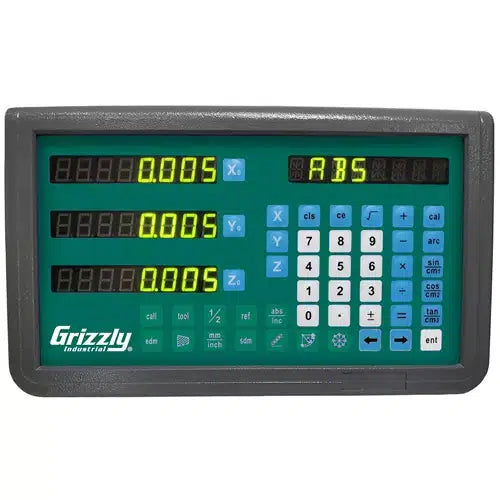

The highly-reliable and accurate readout features several powerful functions including:

  • PCD Pitch circle diameter function
  • LHOLE Line hole positioning function
  • INCL Inclined machining function
  • SDM 199 subatum memory function
  • Radius function
  • SHRINK Shrinkage calculation function

The aluminum case of the readout is totally sealed to protect the circuitry against dust, fumes, and evaporated coolant. A polyester film offers excellent chemical resistance to most commonly used industry solvents. The components are soldered by computerized soldering machines to achieve high-quality connections. This ensures a lower power consumption and improves reliability.

This kit includes 7-7/8" and 43-5/16" linear optical scales. Their plastic seals offer superior oil resistance, durability, and high elastic recovery properties. The slide carrier uses five P5-grade bearings to achieve smooth and accurate movement.

There are plenty of combinations to choose from.

Like all Grizzly digital readouts, the T33009 comes with a 1-year warranty which covers parts and assures the kit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts for the DRO may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

  • Scale resolution: 5μm
  • Scale travel lengths: 7-7/8", 43-5/16"
  • Scale accuracy: ±6μm, ±15μm
  • Scale optical period: 20μm
  • Scale optical measurement: Transmissive infrared; 34-11/16"
  • Scale repeatability: 2μm
  • Scale seal protection: IP53

FEATURES:

  • Z0 + Z1 axis summation
  • Pitch circle diameter (PCD)
  • Line hole positioning (LHOLE)
  • Inclined machining (INCL)
  • Simple and smooth radius functionality
  • Linear and non-linear error compensation
  • Shrinkage calculation
  • Vibration filtering
  • mm/inch display

INCLUDES:

  • 2-Axis lathe DRO
  • 7-7/8" linear optical scale
  • 43-5/16" linear optical scales
  • DRO arm
  • 2-Axis lathe bracket

;
