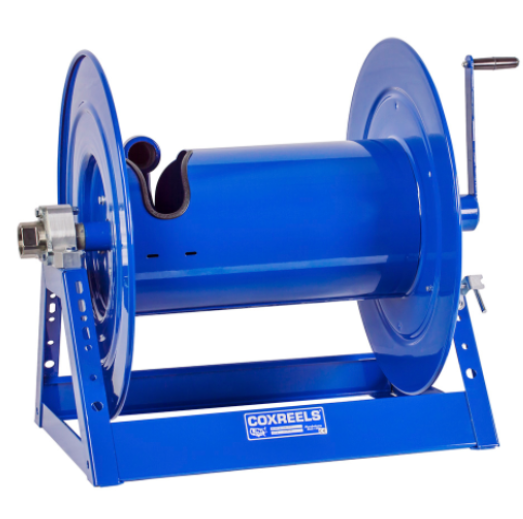

Hand Crank Hose Reel - 1500 PSI - 1185 Series
Hand Crank Hose Reel - 1500 PSI - 1185 Series
Hand Crank Hose Reel - 1500 PSI - 1185 Series
Hand Crank Hose Reel - 1500 PSI - 1185 Series
Hand Crank Hose Reel - 1500 PSI - 1185 Series
Hand Crank Hose Reel - 1500 PSI - 1185 Series
Hand Crank Hose Reel - 1500 PSI - 1185 Series
Hand Crank Hose Reel - 1500 PSI - 1185 Series

Hand Crank Hose Reel - 1500 PSI - 1185 Series

Regular price
$1,177.00
Sale price
$1,177.00
Quantity must be 1 or more


Beveled Geared Crank - Reel Only - 1 1/2" X 75'

COXREELS® 1185 Series hand crank hose reels are designed to handle long lengths of large diameter hose for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides exceptional strength to handle the extra weight without sacrificing performance, even in demanding mobile applications.

SWIVEL

  • External fluid path with in-line aluminum straight, full flow NPT swivel inlet.
  • Swivel Seals: NITRILE

DESIGN & STRUCTURE

  • Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
  • Robust lubricated horizontal surface mount bearings for easy rotation.
  • Long-handled locking pin to secure reel from rotation during transport or storage.

RETRACT

  • Solid steel direct hand crank with smooth round handle.

SIGNATURE FEATURES

  • Professional grade heavy duty steel construction.
  • Rolled edges & ribbed discs provide strength & safety.
  • Leading 2-year manufacturer's limited warranty.
  • Made in the U.S.A. - Sold & Supported Worldwide.

SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, long handled locking pin to secure reel, and front bevel geared crank for easy mechanical retraction.

I.D 1 1/2"
O.D 2 1/16"
LENGTH 75'
HOSE No
MAX PSI 1500
SHIP WEIGHT (LBS) 84
OVERALL DIMENSIONS (W) (H) (L) 29"(W) 26"(H) 24"(L)
MOUNTING PATTERN (M) (N)  18.75"(M) 16"(N)
BASE (X) (Y)  21"(X) 22.25"(Y)

;
