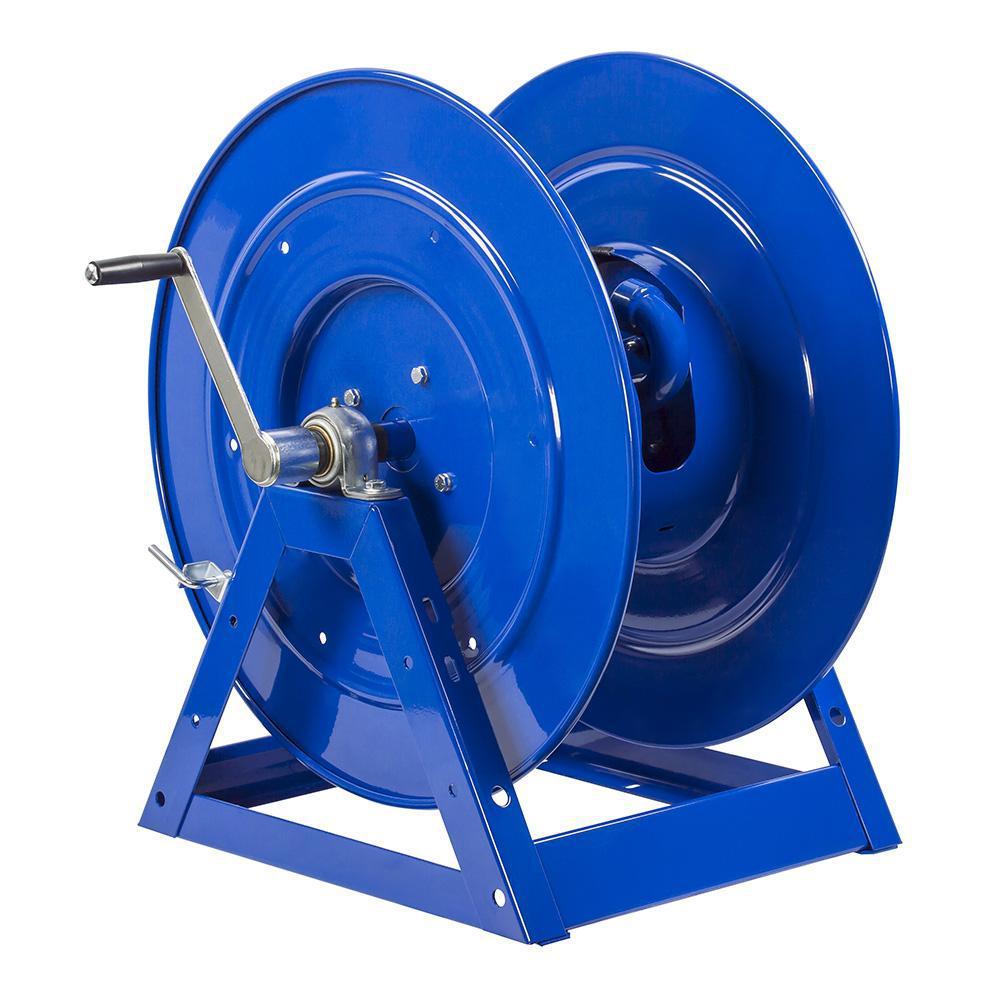

Hands Crank Hose Reels - 3000 PSI - 1175 Series

1" x 100'

COXREELS® 1175 Series hand crank and motorized hose reels, like the 1125 Series, is an industry preferred design built with a larger chassis for larger hose capacities and hose diameters. They feature a sturdy one-piece all welded "A" frame base, low profile outlet riser open drum slot design for smooth even hose wraps around the drum.

APPLICATION:
Built for Water Trucks, Construction Sites, Fire Suppression, Lubricant Dispensing, Farming, High-Flow Watering, and Chemical Fluid Transfer applications.

SWIVEL

• Nickel plated steel 90° full-flow NPT swivel inlet.
• Swivel Seals: AFLAS

DESIGN & STRUCTURE

• Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap.
• Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation.
• Long-handled locking pin to secure reel from rotation during transport or storage

RETRACT

• Solid steel direct hand crank with smooth round handle.
• Also available in motorized options.
• SIGNATURE FEATURES
• Professional grade heavy duty steel construction.
• Rolled edges & ribbed discs provide strength & safety.
• Leading 2-year manufacturer's limited warranty.
• Made in the U.S.A. - Sold & Supported Worldwide.

SWIVEL - Nickel plated steel 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provide a non-crimping, flat smooth hose wrap.
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
PILLOW BLOCK BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents freewheeling and front bevel geared crank for easy mechanical retraction.
