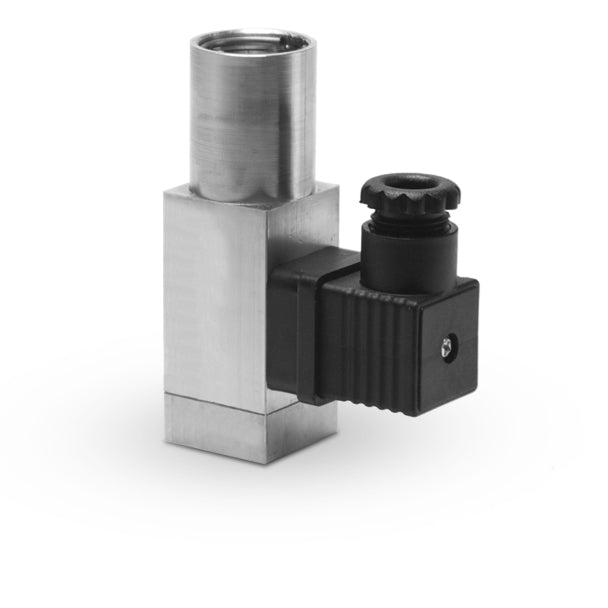

High, Low Adjustable Pressure Switch, 1/4 NPT, IP65 Rated for Harsh Environments

High, Low Adjustable Pressure Switch, 1/4 NPT, IP65 Rated for Harsh Environments

Regular price
$542.01
Sale price
$542.01
Quantity must be 1 or more


For use with single line, parallel, injector based automatic lubrication systems

  • Pressure Switch, 1/4” NPT(f) inlet, DIN 43650 connector (1 NO/1 NC), 7,250 psi (500 bar)
  • IP65 rated for harsh environments. Fluoroelastomer seals are suitable for use in high temperature environments and synthetic lubricants.
UPC Product: 00633955211674
Family Code: FAMCPT
Unit of Measure: EA
Height: 2 IN   |  5.08 CM
Length: 5 IN   |  12.7 CM
Width: 3.6 IN   |  9.144 CM
Volume: .021 FT3   |  .001 M3
Chargeable Weight: .58 LBS  | .26 KG

Technical Specifications

Adjustable Adjustable
Inlet Size (cm) 0.635
Inlet Size (in) 0.25
Inlet Size (mm) 6.35
Inlet Thread Gender Female
Inlet Thread Type NPT
Material Viton, Aluminum, Stainless Steel, Polyamid
Power Connection Type DIN 43650
Type Pressure Switch
Application In-Plant Machinery, Off-Road Equipment
Compatible Material Grease

;
