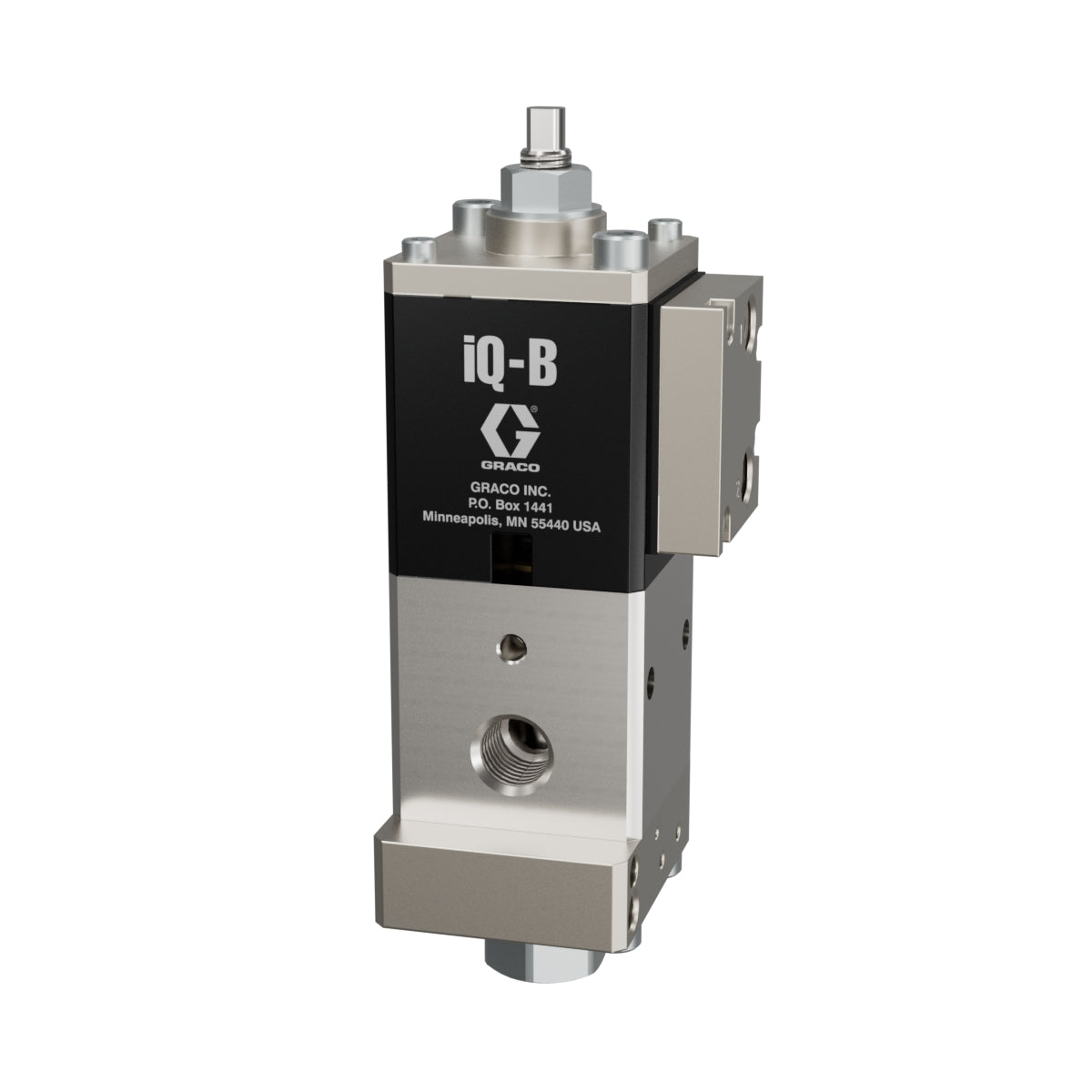

iQ Dispense Valve, Ball Seal, High Pressure, Ambient, NPT Tip, 0in (000mm) Nozzle, Remote Mount Solenoid
iQ Dispense Valve, Ball Seal, High Pressure, Ambient, NPT Tip, 0in (000mm) Nozzle, Remote Mount Solenoid
iQ Dispense Valve, Ball Seal, High Pressure, Ambient, NPT Tip, 0in (000mm) Nozzle, Remote Mount Solenoid

iQ Dispense Valve, Ball Seal, High Pressure, Ambient, NPT Tip, 0in (000mm) Nozzle, Remote Mount Solenoid

Regular price
$2,530.00
Sale price
$2,530.00
Quantity must be 1 or more


The iQ Ball and Seat Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.

  • Higher pressure rating
  • Maximize dispense time while minimizing maintenance costs and effort
  • Perfect for standard on/off applications
  • Ideal for low to high viscosity materials
  • Wear-resistant seals and hardened components for long life
  • Easy repeatable mounting for robotic and automated applications.
UPC Product: 00769946067484
Family Code: FAMIQV
Unit of Measure: EA
Height: 5 IN   |  12.7 CM
Length: 18 IN   |  45.72 CM
Width: 6 IN   |  15.24 CM
Volume: .313 FT3   |  .009 M3
Chargeable Weight: 3.5 LBS  | 1.59 KG

Technical Specifications

Maximum Air Pressure (bar) 8.3
Maximum Air Pressure (psi) 120
Type Dispense Valve
Weight (lb) 2.1
Wetted Material UHMWPE, 303 Stainless Steel, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, Silicone Nitride, CA 360 Brass, Coated Tool Steel, C2 Carbide with Cobalt Binder
Air Inlet Size (in) 1/8
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Ambient/Warm Melt/Hot Melt アンビエント式, Ambient, 상온식
Applicator Type Ball/Seat
Component Type Single Component
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Gender Female
Fluid Inlet Thread Type NPT
Gun Activation Automatic
Maximum Air Pressure (MPa) 0.83
Maximum Fluid Pressure (bar) 345
Maximum Fluid Pressure (MPa) 34
Maximum Fluid Pressure (psi) 5000
Mount Location Remote Mount Solenoid
Nozzle Size (in) N/A
Nozzle Size (mm) N/A
Outlet Block Length (in) NA
Outlet Block Length (mm) NA
Solenoid Valve Voltage Rating (V dc) 24
Weight (kg) 1
