Single-phase LED display for the A5816, J-A5816, JDP-20VS-1, and JDP20VST drill presses. Reads spindle speed at the operator panel from the magnetic pickup signal. Replace when segments fail, the readout drifts, or the display stops responding to changes in actual speed.
Features
- Match-spec single-phase LED display for the listed drill presses
- Reads spindle speed from the magnetic pickup signal
- De-energize before swapping the display
Where it fits

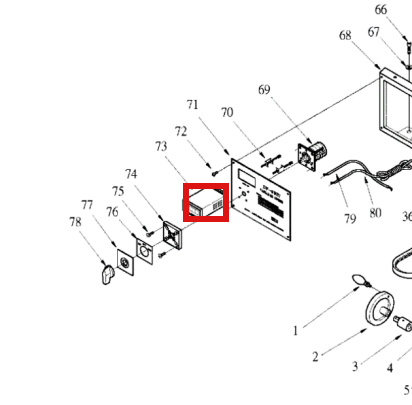

Shown as item 73 (LED Display for 1ph 115/230/24V) in the parts diagram of the JDP-20VS Series Manual, page 16. The photo is the boxed area of that diagram — match the item number to your machine's parts list before ordering, or call us at (888) 714-1410 with your model and serial number.
| Specifications | |
|---|---|
| Country of Origin | Taiwan |
| Fits Model | A5816, J-A5816, JDP20VST, JDP-20VS-1 |
| Warranty | Ninety Days |
