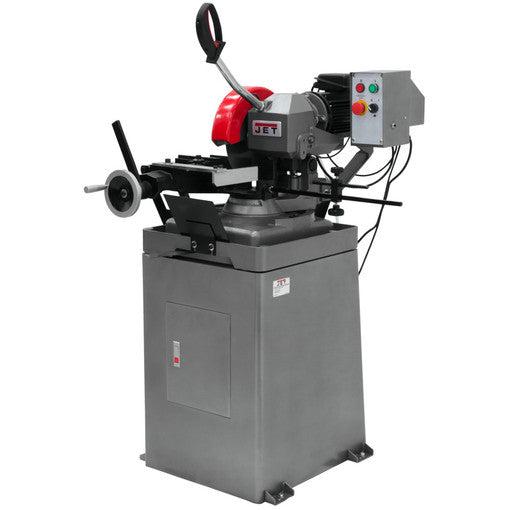

Jet Tools - CS-275, 275mm 1-Phase Ferrous Manual Cold Saw

Jet Tools - CS-275, 275mm 1-Phase Ferrous Manual Cold Saw

Regular price
$3,119.00

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 414228 Description

    JET Coldsaws deliver clean, burr-free cuts and offer machine shop and fabrication professionals a list of features and standard design characteristics that you’ve come to expect from JET. All backed by the industry leading full service Two Year Warranty

    Jet 414228 Features

    • 275mm (10") Ferrous Cold Saw for steel, stainless and tough to cut alloys.
    • Spring loaded whole hand trigger starts or stops the sawing process for easy smooth cutting and increased user safety
    • Two-piece cast iron blade guard system permits quick and easy blade changes without removing the guards
    • Quick clamping cam-action vise with adjustable gib and material support bar for burr-free cutting operations
    • Hardened and ground direct drive worm shaft and bronze worm wheel transmits maximum torque to the saw blade
    • Blade drive reduction gearbox operates in an oil bath for increased durability
    • Heavy-Duty cast iron frame base with easy access storage provides a stable cutting platform
    • 1-1/3 Gallon coolant reservoir and pump with flow control system extends blade life
    • Quick tension and release mitering capabilities with stops at 45° right, 45° left
    • Fully adjustable material depth stop for sawing repeatability and increased production

    Jet 414228 Specifications

    Tubing Rectangle at 45 Degrees (In.) 2-1/5 x 2
    Blade Speeds (RPM) 54
    Solid Round at 45 Degrees (In.) 3-2/7
    Overall Dimensions (L x W xH) (In.) 40 x 39 x 72
    Weight (Lbs.) 360
    Solid Square at 45 Degrees (In.) 2-1/5 x 2-1/5
    Style (Type) SV_1375591258785
    Blade Size (Mm.) 275 x 32 x 2
    Maximum Vise Opening (In.) 4
    Solid Rectangle at 90 Degrees (In.) 3-1/9 x 2
    Tubing Round at 45 Degrees (In.) 3-2/7
    Tubing Round at 90 Degrees (In.) 3-2/7
    Solid Square at 90 Degrees (In.) 2-1/2 x 2-1/2
    Tubing Rectangle at 90 Degrees (In.) 3-1/9 x 2
    Solid Round at 90 Degrees (In.) 3-2/7
    Tubing Square at 45 Degrees (In.) 2-1/5 x 2-1/5
    Solid Rectangle at 45 Degrees (In.) 2-1/5 x 2
    Tubing Square at 90 Degrees (In.) 2-1/2 x 2-1/2
    Motor (HP) 1-1/2 HP, 115V, 1 Ph

    ;
