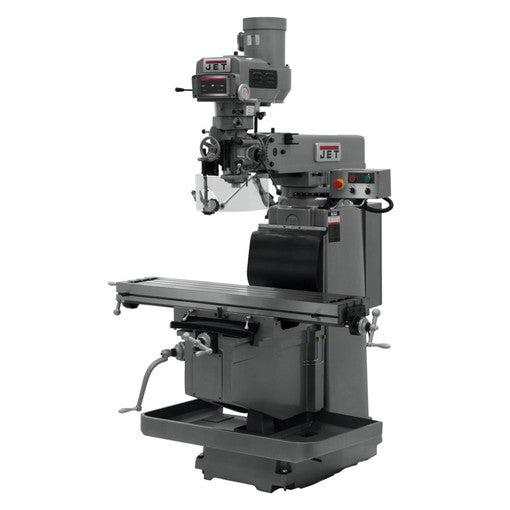

Jet Tools JTM-1050VS2 2-Axis ACU-RITE G-2 MILPWR CNC

Jet Tools JTM-1050VS2 2-Axis ACU-RITE G-2 MILPWR CNC

Regular price
$48,129.00

See Lower Price in Cart

Quantity must be 1 or more


DESCRIPTION

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.

  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • Available offline software
  • Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Precision ground ball screws eliminate backlash for precise lateral movements
  • USB + Ethernet compatible

SPECIFICATIONS

CNC Package ACU-RITE MILLPWR® G2
Spindle Travel (In.) 5
Style (Type) CNC
Number of Axis 2
Table Size (L x W) (In.) 10 x 50
Weight (Lbs.) 3200
Spindle Taper (In. x TPI) R-8
Max Distance Spindle to Table (In.) 19
Distance Spindle to Column (Max.) (In.) 26
Range of Spindle Speeds (RPM) 70 - 3,800
Quill Diameter (In.) 3-3/8
Collet Capacity 1/8 - 7/8
Quill Down Feed Rates (IPR) .0015 - .003 - .006
Table Longitudinal Travel (In.) 35
Table Cross Travel (In.) 15-1/4
T-Slot Centers (In.) 2-1/2
Work Table Weight Capacity (Lbs.) 720
Travel of Knee (In.) 14-1/4
Travel of Ram (In.) 20-1/2
Motor (HP) 3 HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.) 96 x 78 x 88
Height 0.0000
Length 0.0000
Weight 3500.0000
Width 0.0000

;
