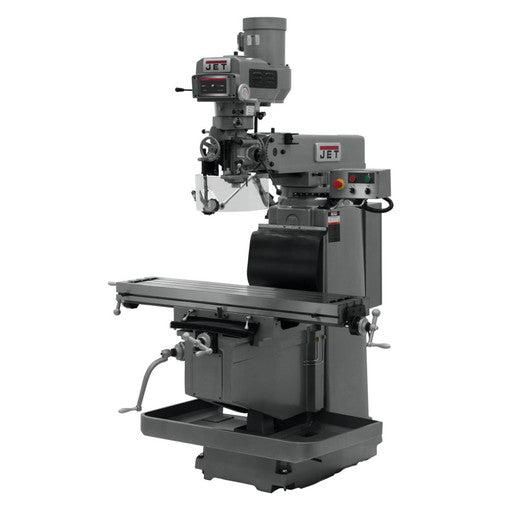

Jet Tools JTM-1254RVS 3-Axis with ACU-RITE G-2 MILPWR CNC

Jet Tools JTM-1254RVS 3-Axis with ACU-RITE G-2 MILPWR CNC

Regular price
$48,799.00

See Lower Price in Cart

Quantity must be 1 or more


DESCRIPTION

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty

Jet 691944 Features

  • CNC Vertical Milling Machine Package JTM-1254RVS
  • Features of the ACU-RITE MILLPWR G2 CNC Package
  • Certified Meehanite® Castings
  • Precision bored and honed milling head
  • High precision Class 7 spindle bearings
  • Quick Spindle Feed Nut
  • Features of the ACU-RITE MILLPWR G2 CONTROLLER
  • USB + Ethernet compatible
  • Simplified navigation that eliminates multiple menu screens
  • 12.1" High resolution display (1024 x 768) with 3D graphics

SPECIFICATIONS

Quill Down Feed Rates (IPR) .0015 - .003 - .006
Travel of Knee (In.) 19-1/4
Head Movement (Deg.) 90°R & L 45° F & B
Motor (HP) 5HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.) 104-1/4 x 79-7/8 x 92-1/8
Spindle Travel (In.) 5
Style (Type) CNC
Spindle Taper (In. x TPI) R-8
Work Table Weight Capacity (Lbs.) 925
Table Longitudinal Travel (In.) 33-7/8
Table Size (L x W) (In.) 12 x 54
Table Cross Travel (In.) 15-1/3
T-Slot Centers (In.) 2-1/2
Range of Spindle Speeds (RPM) 80 - 3,800
Travel of Ram (In.) 25
Distance Spindle to Column (Max.) (In.) 27-3/4
Distance Spindle to Column (Min.) (In.) 7-1/2
Quill Diameter (In.) 4-1/8
Max Distance Spindle to Table (In.) 23
Column Width (In.) 14-1/4
Saddle Width (In.) 25-5/8

;
