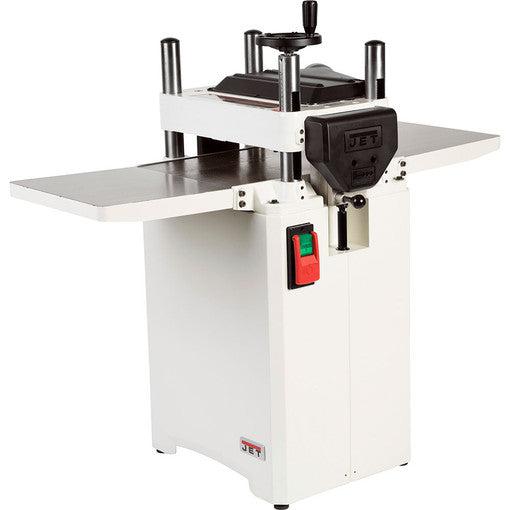

Jet Tools - JWP-15BHH, 15" CS Planer with Helical Head
Jet Tools - JWP-15BHH, 15" CS Planer with Helical Head
Jet Tools - JWP-15BHH, 15" CS Planer with Helical Head

Jet Tools - JWP-15BHH, 15" CS Planer with Helical Head

Regular price
$3,199.99

See Lower Price in Cart

Quantity must be 1 or more


Details

    Jet 722155 Description

    The New Jet 15" Helical Head Planer Delivers The Power And Efficiency That Woodworkers Demand In The Shop. Features Include A Premium Helical Cutterhead With 48 Staggered Carbide Knives For A Superior Finish And Quieter Cut, Innovative Precision Air Strut System Pass™, Rugged 4 Post Design, Cast Iron Infeed/Outfeed Tables, 2 Infeed Speeds And A Heavy-Duty Cast Iron Base Mounted To A Closed Steel Cabinet.

    Jet 722155 Includes

    • (1) Straight Knife Planer
    • (1) Helical Cutterhead

    Jet 722155 Features

    • Innovative Jet - Precision Air Strut System (Pass™) Provides Consistent Upward Pressure On The Cutterhead, Reducing The Chance Of Board Snipe
    • Helical Cutterhead Houses 48 Staggered Carbide Knives That Are Engineered To Align Themselves Without Any Adjustment For A Superior Finish And Quieter Cut
    • Heavy-Duty Precision Ground Cast Iron Table And Four Post Design Provides Maximum Control And Support When Passing Boards Through Planer.
    • Powerful 3-Hp Motor With V-Belt Transmission Reduces Vibration And Running Noise
    • Dual Infeed Speed Control For 16Fpm Or 20Fpm, Maximizes Cut Efficiency
    • Maximum Depth Of Cut 1/8", 6" Cutting Height And 15" Width Capacity
    • Large Cast Iron Precision Ground Infeed/Outfeed Tables Provide Support For Large Work Pieces
    • Large Hand Wheel With Positive Gear Drive Easily Moves The Head To The Desired Board Thickness
    • Magnetic Switch With Green Safety Light Illuminates When Powered
    • 4" Dust Port Hooks Up To Dust Management System And Helps Keep Shop Clean

    Jet 722155 Specifications

    Height 44.88"
    Length 29.92"
    Volume 20.803
    Width 26.77"
    Prop 65 Cancer and Reproductive Harm
    Cutterhead Speed (RPM) 5,200
    Maximum Depth of Cut 1/8"
    Feed Rate (FPM) 16 and 20
    Motor Power (HP) 3
    Dust Collection Minimum CFM Required 600 CFM
    Number of Speeds 2
    Number of Knives 48
    Maximum Planing Thickness 6"
    Cutterhead Diameter 2-5/8"
    Motor Amps 15
    Dust Port Outside Diameter 4"
    Motor Phase (PH) 1
    Table Size with Extensions (L x W) 15 x 49.2 in.
    Type of Cutterhead Helical Head
    Maximum Planing Width 15"

    ;
