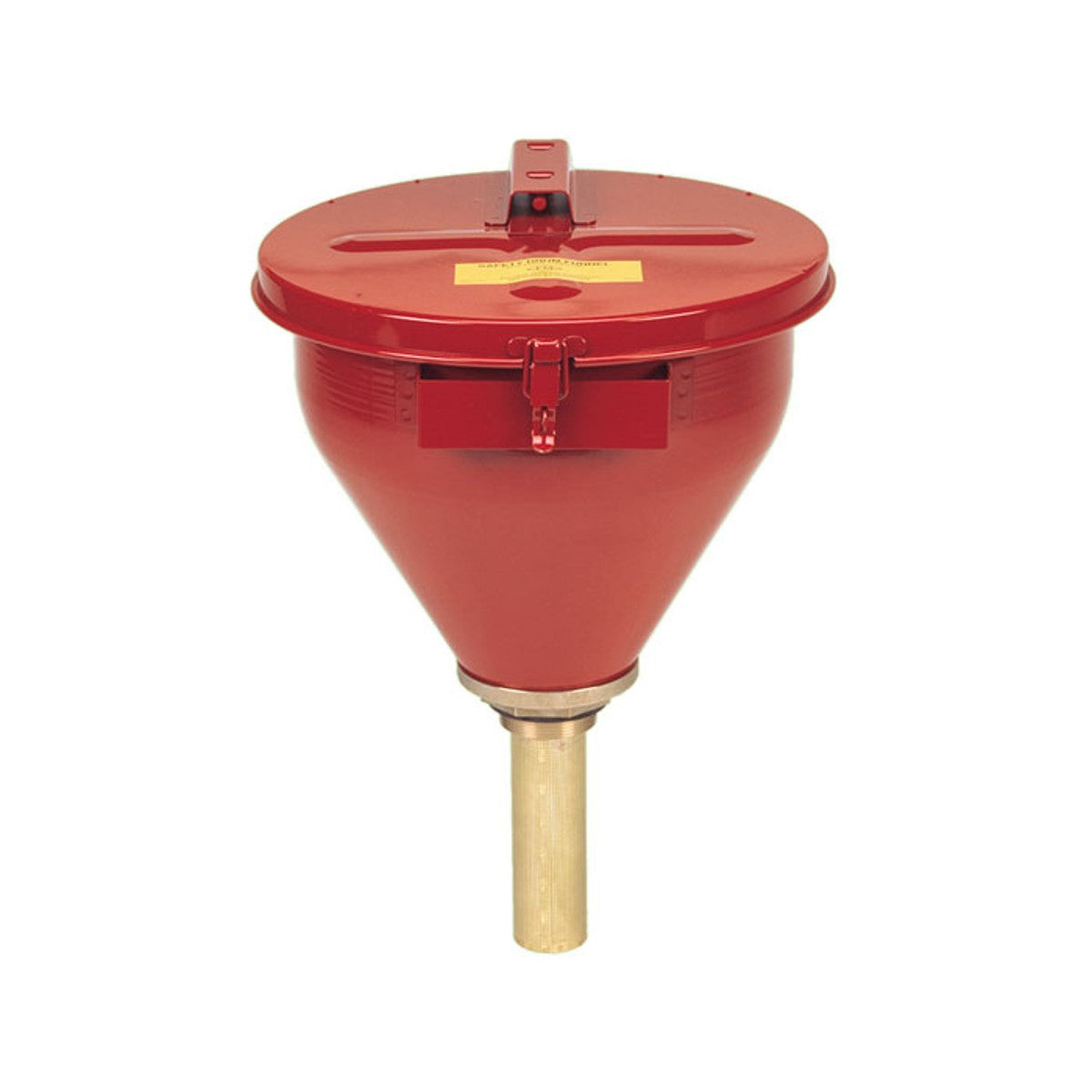

Funnels intended for use with flammables are fitted with a brass flame arrester that absorbs and dissipates heat, preventing any external ignition source (like sparks from power tools, static electricity or cigarettes) from reaching the drum’s flammable contents. Heavy 18-gauge galvanized steel, with electrostatically applied epoxy powder-coat finish, provides durability and chemical resistance. Self-close models have a fusible link that melts at 165ºF (74ºC) shutting the cover automatically in case of a fire to extinguish the flames.
Popular funnel No. 08207 with 6" (152mm) flame arrester handles most needs, while No. 08205 with 32" (813mm) flame arrester provides greater liquid flow. For viscous flammable or nonflammable liquids, funnel No. 08208 is fitted with a 33" (838mm) open-end brass tube to direct liquid flow. All funnels comply with EPA and OSHA regulations and are FM approved. Larger funnels accept a lock to prevent unauthorized access.

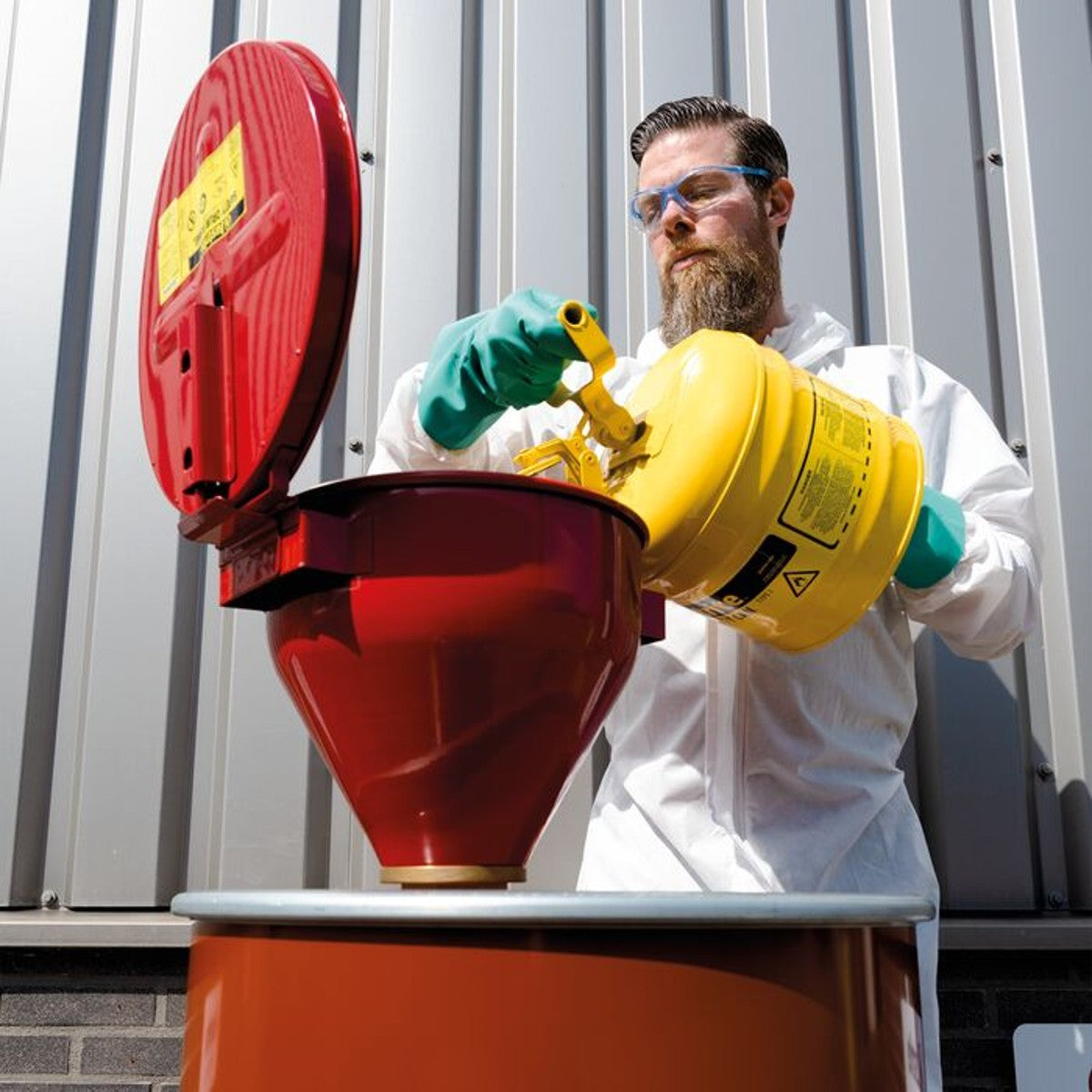

Note: It is important to segregate incompatible wastes to avoid chemical reactions or explosions. Store drums properly indoors, or in a weather-protected area outside. Funnels can be left in place on the drums.
Additional Specs
| International Model No.: | 08207 |
| Pallet Quantity: | 45 |
| Material Specifications: | Galvanized Steel |
| FM Approval: | Yes |
| TUV Approval: | Yes |
| Flame Arrestor, inch: | 6 |
| Flame Arrestor, mm: | 152 |
| Flame Arrestor Material: | Brass |
| Cover Type / Closure Type: | Self Close |
| NPS/NPT inch: | 0.75 |
| NPS/NPT mm: | 19 |
| Funnel Dimensions: | 10.75" Dia x 10" H |
| : | 273mm Dia x 254mm H |
| Funnel Capacity - gallon: | 2.6 |
| Funnel Capacity - liter: | 9.8L |
| Mouth Diameter - inch: | 10.75" |
| Mouth Diameter - mm: | 273mm |
| Net Weight, lbs: | 7.5 |
| Net Weight, kg: | 3.4 |
