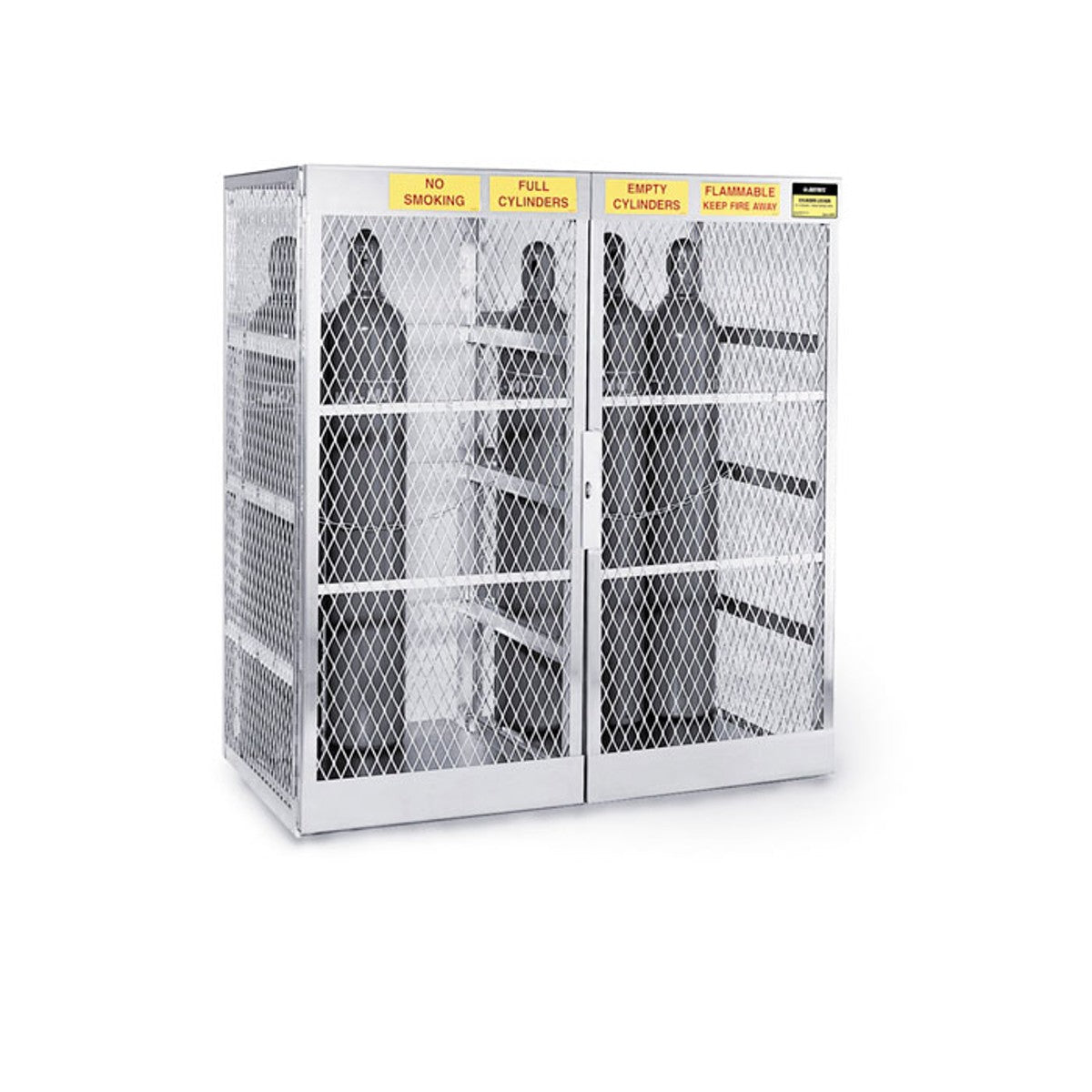

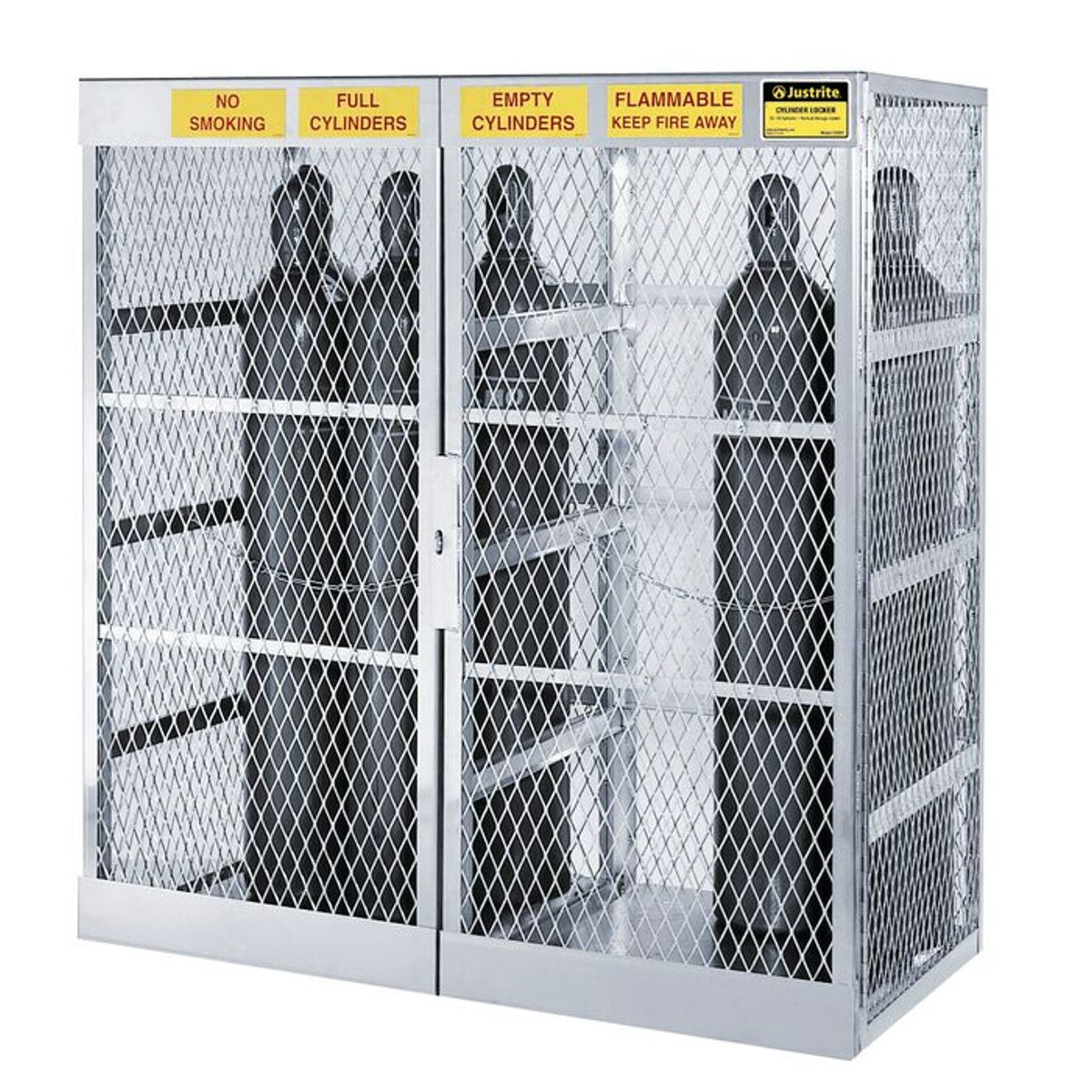

Justrite Cylinder Storage cabinets for compressed/pressurized gas cylinders (model 23007) provide upright storage for compressed gas cylinders. It safely holds 10-20 vertical compressed/pressurized gas cylinders with exterior dimensions of 65 x 60 x 32 in (1651 x 1524 x 813 mm). As one of eleven modular styles for comprehensive vertical and horizontal storage solutions for liquid petroleum gas and compressed gas, model 23007 includes 2 doors.
Gas cylinder storage lockers from Justrite are ideal for those seeking a long-term, trusted, one-and-done investment in a proven product with superior design and manufacturing considerations. These cylinder lockers from Justrite are extremely durable and easy-to-use. Welded security lug-on front panel door accepts a padlock (not included) for extra protection from tampering. Heavy gauge 0.065 (1.65mm) 100% welded aluminum mesh and extruded (not formed) frame add rigidity. Ventilated designs prevent buildup of dangerous gases. Justrite cylinder lockers do not rust, corrode, or discolor.
All our gas cylinder storage cages have an exclusive solid aluminum roof panel that slants toward the back to shed water and ice. They feature raised floor panels for added support, to prevent cylinders from resting in puddles. Justrite lockers ship fully assembled for easier setup.
Our customers use model 23007 to remain in compliance with NFPA 58, CSA-B149.2 and OSHA 1910.253 regulations, and more. Each locker includes four warning labels for added precautions and safety, and are supplied with chains to secure each cylinder from falling over.
Justrite gas cylinder lockers are available across a range of horizontal, vertical and combination options to meet the precise spatial and compliance needs for a range of situations. Eleven modular styles provide an efficient, attractive solution to expand multi-cabinet storage.
Compressed gases including propane, nitrogen, chlorine, helium, and oxygen are gases at room temperature and similarly both combustible and dangerous.
Handling these substances requires extreme caution, with absolutely no room for error. Gases may be odorless in their natural state, which means that a deadly accident can happen with no warning during storage or transport.
Additional Specs
| International Model No.: | 230071 |
| Pallet Quantity: | 1 |
| Material Specifications: | Aluminum |
| OSHA Compliance: | Yes |
| Complies with NFPA Code 30: | Yes |
| Storage Type: | Vertical |
| Cylinder Capacity: | 20 |
| Number of Doors: | 2 |
| Door Type: | Manual |
| Adjustable Shelves: | No |
| Dimensions, Exterior: | 65" H x 60" W x 32" D |
| Dimensions, Exterior: | 1651mm H x 1524mm W x 813mm D |
| Net Weight, lbs: | 169.0 |
| Net Weight, kg: | 76.7 |
