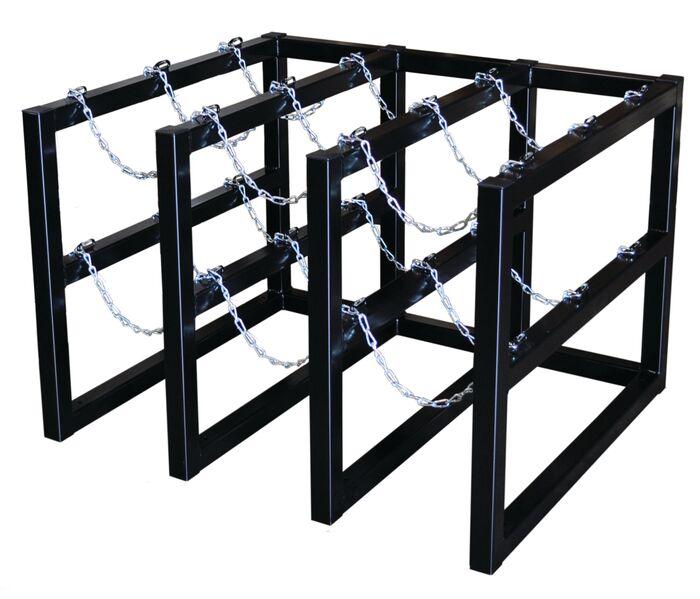

Justrite 3 Wide by 3 Deep, Gas Cylinder Storage Rack, 9 Cylinder Capacity, Steel - 35134

Regular price
Sale price
Quantity must be 1 or more

Product Summary

  • 12" wide cylinder bays
  • Meets USGS high-hazard seismic zone requirements when properly mounted


Recommended for indoor or outdoor bulk cylinder storage, barricade racks surround cylinders with 2-in (51-mm) square steel structural tubing, continuously seam welded at all junction points and sealed with exterior grade powder-coat paint for long lasting strength, durability and dependability. Tops ground smooth and capped with high-density polyethylene (HDPE) caps to prevent corrosion and injuries. Features two levels of welded steel chains for each cylinder and clasps to connect the chains to the rack, ensuring a snug fit. Pre-drilled 0.531-in (14-mm) diameter floor mounting holes included on lower tube structure. For seismic installations, add Model 35350 S4-rated anchor bolts (not included).

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

More Information
Model No 35134
UPC 697841210400
Cylinder Capacity 9
Minimum Cylinder Diam (in) 8
Cylinder Capacity with Max Cylinder Dia (9) 12 inch
Mount Type Floor
Mount Holes 8
Mount Hole Size (inch) 0.531
Strap Style Chain
Straps Per Cylinder 2
Material Specifications Steel
Complies with NFPA 1 Fire-Code Yes
NFPA 55 Yes
OSHA Compliance Yes
High Hazard Seismic Zone Yes
Net Weight, lbs 211
Net Weight, kg 96
Net Dimensions (W x D x H) 44 x 38 x 30 inches
1118 x 965 x 762 mm
