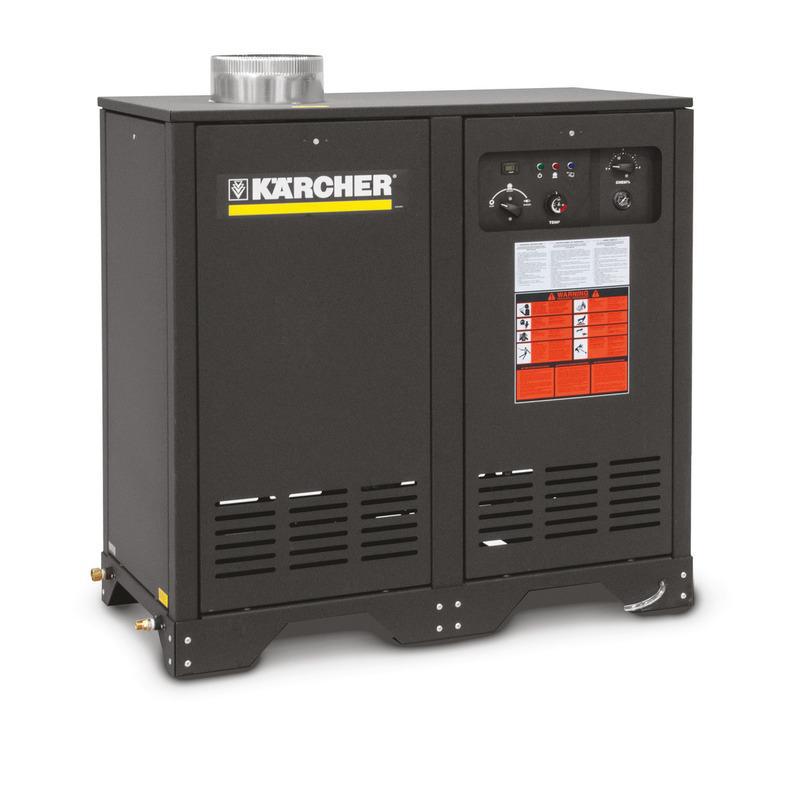

HDS STATIONARY LP GAS-Heated
High cleaning performance.
The innovative, rugged design of the Tabernas series natural gas and LP-heated cabinet pressure washer delivers up to 5 gpm at 3,000 psi of industrial power. Built in the U.S.A., each model is constructed with anodized structural rivets, a water cooled electric motor, standard auto/start/stop and Kärcher’s axial direct-drive pump backed by a 7-year warranty. All models are ETL certified to UL and CSA safety standards.
Easy to service and operate
■ All-access cabinet design with six lift out panels and easy lock fasteners
provides easy access to components for maintenance in tight situations.
■ Swing-out cast iron burner ring with separate “stay-in-place” ignition pilot
light allows easy access and removal of the burner ring.
■ Standard electronic ignition eliminates the hassle of having to monitor
and light pilot flame.
■ All models are readily designed to accept a full line of Easy-Add field
installed option kits.
■ Inlet/outlet connections can be easily moved to either side of the unit.
Designed to last
■ The extra-durable heating coil is made of leak-free, cold-rolled, schedule
80 steel pipe and is wrapped with a thick foil blanket insulation that
keeps cabinet walls cool to the touch.
■ Pulsation damper reduces vibrations on the high pressure side of the
■ Integrated RM 110 reservoir protects the machine from scale build-up in
the heating coil.
■ Water-cooled electric motor
Easy!Force Trigger Gun
EASY!Force gun with cruise control like technology - uses its
own recoil force to hold the trigger down.
4.118-005.0 EASY!Force trigger gun (German model) - zero force required. (Compatible with EASY!Lock
2.744-008.0 Remote Kit single station
6.685-195.0 Chemical solenoid valve (brass) for use with remote kit
8.708-846.0 Chemical solenoid valve (stainless steel) for use with remote kit
9.801-040.0 Draft diverter, 10”
8.753-474.0 Damper, draft 10”
8.925-154.0 Hose 3/8" x 50", 4000 PSI
2.639-919.0 Self-winding hose reel, 66'
2.639-931.0 Swivel wall mount bracket
8.923-213.0 Hot water discharge outlet relocation
