HIGH PRESSURE WASHER HDS 5.0/30-4 S Eb

HOT WATER HIGH-PRESSURE CLEANERS
With hot water, high-pressure cleaners clean even better with the same amount of pressure, Kärcher machines impress with the highest level of usage comfort and the most up-to-date technology.

SUPER CLASS
Hot water super class – efficient in daily continuous use Whether the automotive industry, agriculture, construction or forwarding industry: the mobile super class offers top class performance where work once had to be carried out stationary.

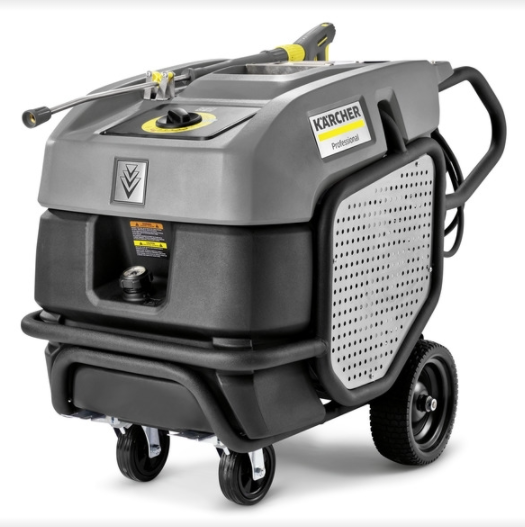

HIGH PRESSURE WASHER HDS 5.0/30-4 S Eb
The powerful HDS 5.0/30-4 S hot water high-pressure cleaner offers a high flow rate and optimised burner engineering for economical operation.

HDS 5.0/30-4 S: this entry-level machine in the Super class of Kärcher hot water high-pressure cleaners is characterised by a high water flow rate, meaning that it can even be operated with a second spray lance. The EASY!Force HD trigger gun uses the recoil force of the high-pressure jet, thereby reducing the holding force for the operator to zero. The high-pressure cleaner is intuitive to operate and transport, and thanks to the eco!efficiency mode, optimised burner engineering and precise cleaning agent dosing, it is also highly efficient and environmentally-friendly. The patented nozzle technology, 3-piston axial pump with ceramic pistons and the turbo blower, among other features, ensure an outstanding cleaning performance, while operational safety is guaranteed at all times by precise exhaust monitoring. The robust, corrosion-resistant chassis can also withstand tough applications easily and is simply and conveniently constructed. This allows easy access to all of the important components and ensures that operating data can always be retrieved easily.

Features

High efficiency

• In the eco!efficiency mode the machine operates in the most economical temperature range (60°C) – with full water flow.
• The burner cycles are optimised to reduce fuel consumption by 20% compared to full-load operation.

Reliability

• The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
• Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.
• Machine operational data (duration of use and required service intervals) can be retrieved.

Maximum efficiency

• Highly efficient, tried-and-tested burner technology.
• Four-pole electric motor with three-piston axial pump.
• Water-cooled motor for a high level of performance and durability.

Storage

• Spacious storage compartment, e.g. for cleaning agents, gloves or tools.
• Within easy reach for left-handed/right-handed operators and ideal for two-spray lance operation.

Detergent dosing

• Precise dosing valve ensures low consumption.
• Easy changeover between detergent tanks 1 and 2.
• Rinsing takes place automatically in the 0 position.

Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.

• Effortless operation at last: the EASY!Force high-pressure gun.
• EASY!Lock quick-release couplings: durable and robust. And five times faster than screws.

LED display

• Clearly arranged centrally at the control panel (HDS 13/20)
• Filling level indicators for fuel, cleaning agent and system care.
• Integrated elapsed time counter.

Equipment

• Spray gun, EASY!Force Advanced
• High-pressure hose, 15 m, Longlife
• Spray lance, 1050 mm
• Power nozzle
• Pressure switch-off
• Optional two-spray lance operation
• Soft Damping System (SDS)
• Service electronics
• 2 cleaning agent tanks
• Dry-running protection

Current type (Ph/V/Hz) 3 / 208 - 240 / 60
Flow rate (l/h) 540 - 1140
Working pressure (bar/MPa) 30 - 207 / 3 - 20.7
Temperature (for supply 12 °C) (°C) min. 80 - max. 155
Connected load (kW) 8.2
Consumption of heating oil or gas at full load (kg/h) 8.2
Connection cable (m) 5
Fuel tank (l) 25
Weight (with accessories) (kg) 197.4
Weight incl. packaging (kg) 209.4
Dimensions (L × W × H) (mm) 1330 x 750 x 1060

Application Areas

• Vehicle cleaning
• Device and machine cleaning
• Workshop cleaning
• Cleaning outdoor spaces
• Service station cleaning
• Facade cleaning
• Swimming pool cleaning
• Cleaning of sports facilities
• Cleaning during production processes
• Cleaning of production facilities
