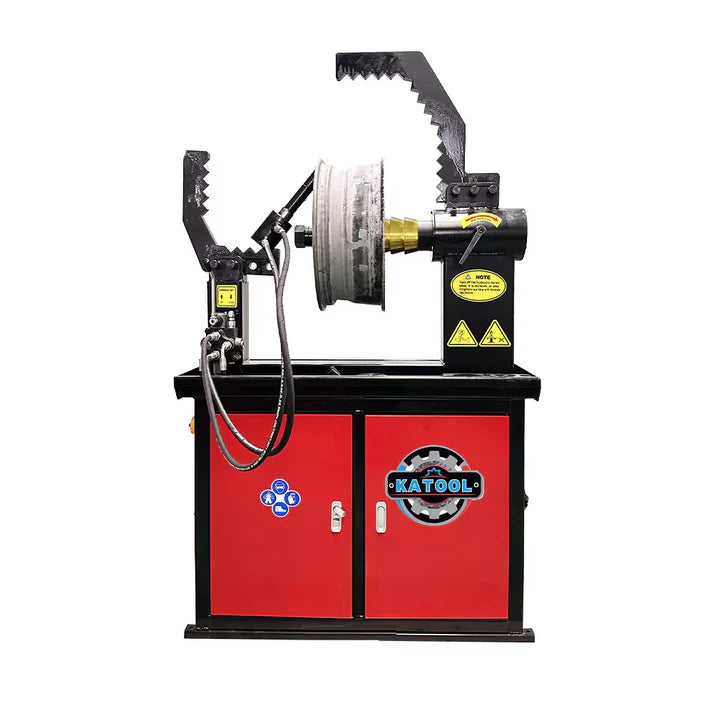

The Katool Automotive Equipment KT-WL69 Rim Straightening Machine is a professional-grade wheel repair solution designed to restore bent or damaged rims with precision and efficiency. Built for tire shops, wheel repair facilities, and automotive service centers, this machine helps technicians bring damaged wheels back into usable condition while reducing replacement costs and expanding in-house service capabilities. It is designed to handle rim sizes from 10" to 22.5" and accommodates a maximum wheel diameter of 30", making it a versatile option for a wide range of wheel repair applications.
Powered by a hydraulic drive system, the KT-WL69 is built to provide smooth, controlled straightening force for more consistent repair work. Public product listings also describe it as a compact, low-noise machine with an operating noise level of around 75 dB, making it well-suited for daily use in busy shop environments.
Key Features
-
Designed for professional rim straightening and wheel repair
-
Handles 10" to 22.5" rim sizes
-
Accepts wheels up to 30" in diameter
-
Hydraulic drive system for smooth and consistent force
-
Compact footprint for easier shop placement
-
Low-noise operation at approximately 75 dB
-
Helps shops expand in-house wheel repair capabilities and reduce replacement costs
| Specification | Details |
|---|---|
| Model | KT-WL69 |
| Brand | Katool Automotive Equipment |
| Product Type | Rim Straightening Machine / Wheel Straightener |
| Rim Size Capacity | 10" to 22.5" |
| Maximum Wheel Diameter | 30" |
| Height | 35.43 in |
| Length | 37.4 in |
| Width | 22.05 in |
| Weight | 529.11 lb |
| Noise Level | 75 dB |
| Hydraulic Oil Recommendation | AW-46 or AW-32 (for colder climates) |
